Introduction
In the field of advanced materials research, the study and development of critical metal materials require precise thermal processing conditions.
A vacuum atmosphere tungsten heating furnace plays a crucial role in achieving high-purity, high-performance metallic materials by providing an ultra-clean, controlled environment for sintering, annealing, and heat treatment.
Importance of Critical Metal Materials Research
Critical metals, such as tungsten, molybdenum, titanium, and rare-earth elements, are essential for aerospace, electronics, energy storage, and high-performance manufacturing. These materials exhibit unique mechanical, thermal, and electrical properties, making their processing highly demanding.
Achieving the desired material characteristics requires precise temperature control, minimal contamination, and tailored atmospheric conditions—all of which are facilitated by vacuum atmosphere tungsten heating furnaces.

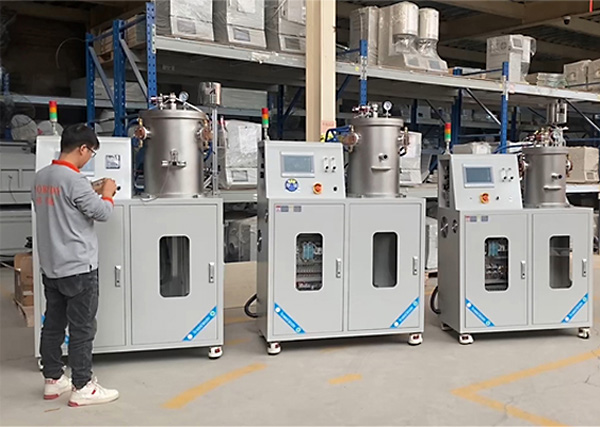

Advantages of ZYLAB Vacuum Atmosphere Tungsten Heating Furnaces
1. Advanced Single-Chamber Vertical Design
The furnace adopts a single-chamber vertical structure, consisting of the furnace body, furnace cover, furnace bottom with lifting mechanism, heating elements, vacuum system, temperature field, gas supply system, water cooling system, and electrical control system. This design enhances thermal efficiency and material handling convenience.
2. Ultra-High Purity Processing Environment
By operating in a high-vacuum or controlled gas atmosphere, this furnace effectively minimizes oxidation, contamination, and unwanted chemical reactions, ensuring superior material properties.
3. High-Temperature Stability with Tungsten Heating Elements
The furnace utilizes high-purity tungsten wire mesh as the heating element, which is vertically suspended inside the furnace. With tungsten’s exceptional melting point and thermal stability, the furnace can reach temperatures 2,200°C, enabling efficient processing of refractory metals and high-melting-point alloys.
4. Precise Temperature Control and Monitoring
The furnace incorporates tungsten-rhenium thermocouples for accurate temperature monitoring, ensuring a uniform and stable heating profile. Additionally, a thermocouple is positioned on the side of the metal heat shield to monitor temperature and prevent overheating.
5. Innovative Double-Layer Water-Cooled Structure
The furnace body and cover are designed with a double-layer water-cooled structure, featuring 304 stainless steel polished interiors to maintain high vacuum levels. The water cooling system prevents overheating of the O-ring vacuum seals, extending their service life and maintaining vacuum integrity.
6. Efficient Vacuum System
The vacuum acquisition system
includes a K-100 diffusion pump with a cold trap and a TRP-36 direct-drive mechanical pump, along with vacuum pipelines, a manual butterfly valve, an exhaust valve, and a vacuum gauge. This system ensures stable high-vacuum conditions, essential for oxide-free metal processing.
7. Bottom-Loading Mechanism for Easy Sample Handling
The furnace features a bottom-loading structure with a lifting platform, allowing safe and convenient sample placement. The lift system is guided by linear rails, ensuring stability and precision during material loading and unloading.
Key Applications in Critical Metal Research
1. Sintering of Refractory Metal Powders
Vacuum tungsten furnaces are extensively used for powder metallurgy applications, such as the sintering of tungsten, molybdenum, and tantalum powders.
The controlled atmosphere prevents oxidation, leading to high-density, high-strength components used in aerospace and defense applications.
2. Annealing and Heat Treatment of Superalloys
Superalloys, essential for turbine blades, medical implants, and high-temperature electronics, require precise heat treatment to achieve optimal microstructure and mechanical properties.
Vacuum atmosphere furnaces ensure a contamination-free annealing process, improving ductility, creep resistance, and fatigue strength.
3. Processing of Rare-Earth and High-Purity Metals
Rare-earth metals and high-purity materials used in semiconductors, magnetic devices, and optical coatings demand extreme cleanliness during heat treatment.
Vacuum furnaces minimize impurities, preserving the electrical and magnetic properties essential for advanced applications.
Conclusion
Vacuum atmosphere tungsten heating furnaces are indispensable tools in the research and development of critical metal materials. Their ability to provide a clean, high-temperature, and precisely controlled environment makes them the preferred choice for sintering, annealing, and thermal treatment of refractory metals and superalloys.
As demand for high-performance materials grows, ZYLAB’s advanced furnace technology will continue to play a vital role in metallurgical science and engineering.
For more information on tungsten heating furnaces or to inquire about custom solutions, feel free to contact us.
