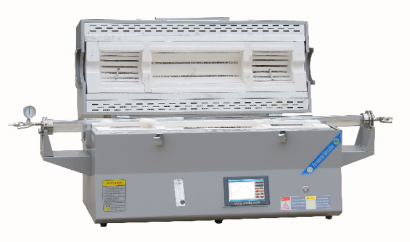

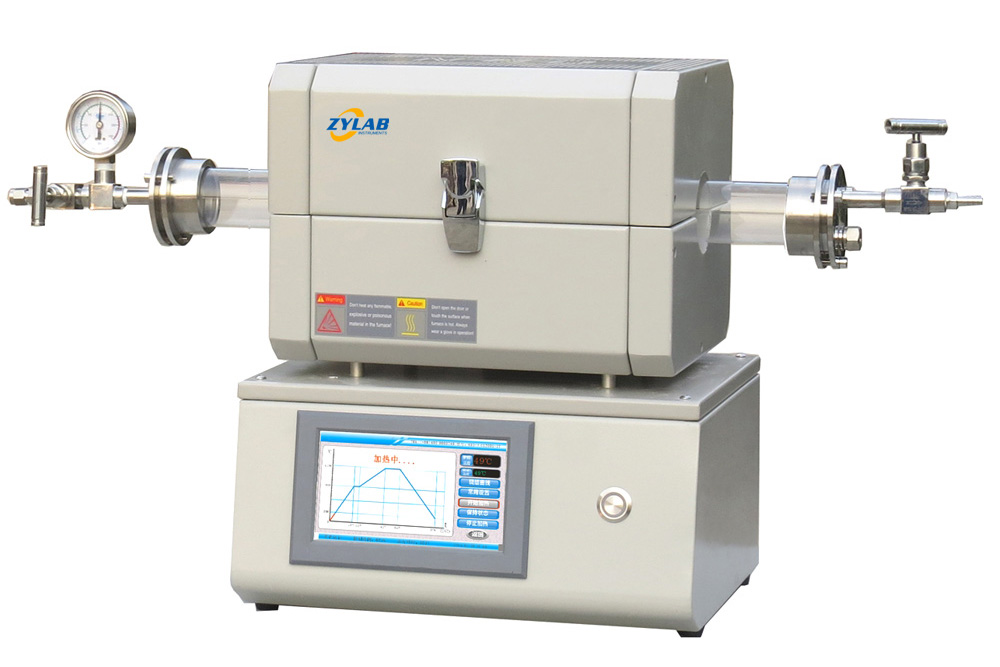

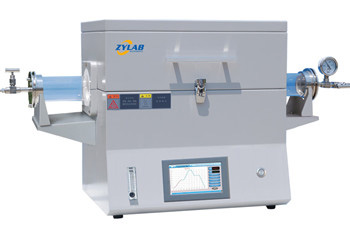

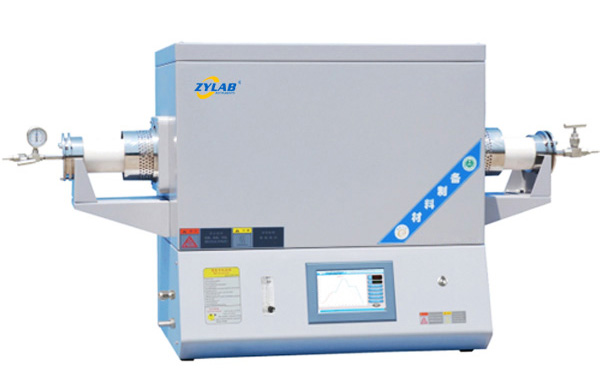

Images of Tubular Furnace
Overview
A tubular furnace, also known as a tube furnace, is a high-temperature heating device used in laboratory, research, and industrial settings. It consists of a cylindrical heating chamber (tube) and an integrated heating element.
Tubular furnaces are versatile tools for high-temperature applications, materials processing, and various research processes.
Features
Cylindrical Heating Chamber: Tubular furnaces have a tube-shaped chamber where samples or materials are heated.
High-Temperature Capability: They can reach temperatures ranging from a few hundred degrees Celsius to well above 1000°C, depending on the model.
Precise Temperature Control: These furnaces offer accurate temperature control through integrated controllers or software.
Uniform Heating: The design ensures even temperature distribution along the length of the tube.
Safety Features: Many models come with safety features such as over-temperature protection and interlocks.
Work Process
1. Samples or materials are placed inside the tube within the furnace.
2. The heating elements are activated, and the temperature is gradually raised to the desired level.
3. The materials undergo the required processes with precise temperature control and uniform heating.
4. After the process is complete, the furnace is allowed to cool down before samples are removed.
Applications
Materials Processing: Used for sintering, annealing, and heat treatment of ceramics, metals, and semiconductors.
Chemical Reactions: Facilitates processes like chemical vapor deposition (CVD), thermal decomposition, and materials synthesis.
Materials Research: Employed for materials characterization, crystal growth, and catalyst testing.
Sample Preparation: Suitable for ashing, drying, and pre-processing of samples for analytical techniques.
Benefits
1. Precise temperature control for consistent and repeatable results.
2. Uniform heating along the length of the tube.
3. Versatile and adaptable for various laboratory and industrial applications.
4. Can be equipped with various accessories for specific applications.
Price
The price of a tubular furnace can vary widely based on factors such as temperature range, tube material, size, and additional features. Basic models can start at a few thousand dollars, while more advanced and larger furnaces can cost tens of thousands of dollars or more.
Considerations When Purchasing
Temperature Range: Ensure the furnace can achieve the required temperature for your specific applications.
Tube Material: Select the appropriate tube material (e.g., alumina, quartz, or ceramic) based on sample compatibility.
Temperature Control System: Evaluate the precision and ease of use of the temperature control system.
Safety Features: Consider safety features like over-temperature protection and emergency shut-off systems.
Size and Capacity: Choose a model that can accommodate your sample size and quantity.
Atmosphere Control: Determine if you need the furnace to operate in a controlled atmosphere, such as inert gas or vacuum.
Supplier Reputation: Research and select a reputable supplier with professional knowledge.
FAQ
1. Can I use a tubular furnace for controlled atmosphere experiments?
Yes, many models can be equipped with controlled atmosphere capabilities, such as inert gas or vacuum.
2. What maintenance is required for a tubular furnace?
Regular cleaning and inspection are necessary. Follow the manufacturer’s guidelines for maintenance procedures.
3. What’s the difference between a tubular furnace and a muffle furnace?
A tubular furnace has a cylindrical heating chamber, while a muffle furnace is a box-shaped chamber with a heating element surrounding it.
The choice depends on specific application requirements and sample handling.
