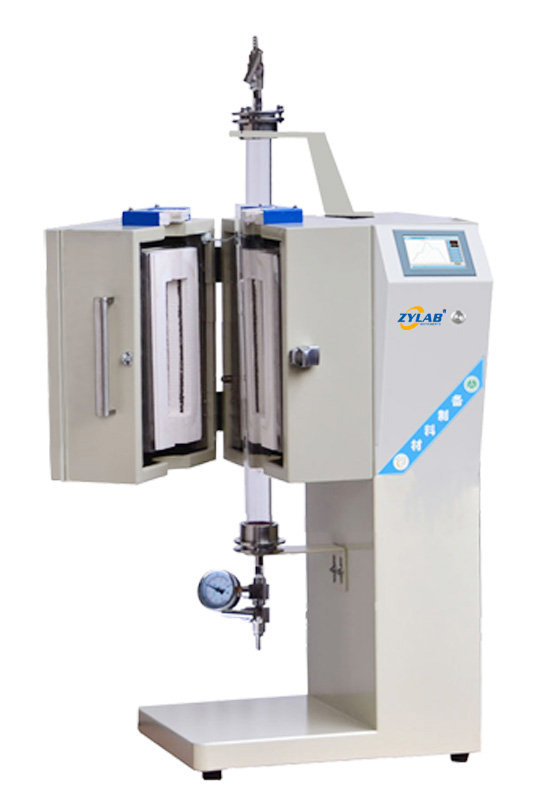

Images of Split Tube Furnace
Overview
A split tube furnace is a specialized high-temperature heating device used in laboratory and industrial settings. It is designed with a horizontally split tube that allows for easy access to the heating chamber.
Features
Split Tube Design: The furnace chamber is divided into two halves, making it easy to load and unload samples.
High-Temperature Capability: Split tube furnaces can reach temperatures well above 1000°C, depending on the model.
Precise Temperature Control: These furnaces offer accurate temperature control through integrated controllers or software.
Uniform Heating: The design ensures even temperature distribution along the length of the tube.
Safety Features: Many models come with safety features such as over-temperature protection and interlocks.
Work Process
1. Samples or materials are loaded into the split tube, which can be opened for easy access.
2. The heating elements are activated, and the temperature is gradually raised to the desired level.
3. The materials undergo the required processes with precise temperature control and uniform heating.
4. After the process is complete, the furnace is allowed to cool down before samples are removed.
Applications
Materials Processing: Used for sintering, annealing, and heat treatment of ceramics, metals, and semiconductors.
Chemical Reactions: Facilitates processes like chemical vapor deposition (CVD), thermal decomposition, and materials synthesis.
Materials Research: Employed for materials characterization, crystal growth, and catalyst testing.
Sample Preparation: Suitable for ashing, drying, and pre-processing of samples for analytical techniques.
Benefits
1. Easy access for loading and unloading samples due to the split tube design.
2. Precise temperature control for consistent results.
3. Uniform heating along the length of the tube.
4. Versatile and adaptable for various laboratory and industrial applications.
Price
The price of a split tube furnace can vary significantly based on factors such as temperature range, tube material, size, and additional features. Basic models may start at a few thousand dollars, while more advanced and larger furnaces can cost tens of thousands of dollars or more.
Considerations When Purchasing
Temperature Range: Ensure the furnace can achieve the required temperature for your specific applications.
Tube Material: Select the appropriate tube material (e.g., alumina, quartz, or ceramic) based on sample compatibility.
Temperature Control System: Evaluate the precision and ease of use of the temperature control system.
Safety Features: Consider safety features like over-temperature protection and emergency shut-off systems.
Size and Capacity: Choose a model that can accommodate your sample size and quantity.
Atmosphere Control: Determine if you need the furnace to operate in a controlled atmosphere, such as inert gas or vacuum.
Supplier Reputation: Research and select a reputable supplier with professional knowledge.
FAQ
1. Can I use a split tube furnace for controlled atmosphere experiments?
Some models can be equipped with controlled atmosphere capabilities, such as inert gas or vacuum.
2. What maintenance is required for a split tube furnace?
Regular cleaning and inspection are necessary. Follow the manufacturer’s guidelines for maintenance procedures.
3. What’s the difference between a split tube furnace and a standard tube furnace?
The primary difference is the ease of loading and unloading samples due to the split tube design.
Standard tube furnaces have a continuous tube, while split tube furnaces can be opened for access to the heating chamber.
The choice depends on the specific application and the convenience of sample handling.
