W Type Silicon Carbide Heating Element
Introduction

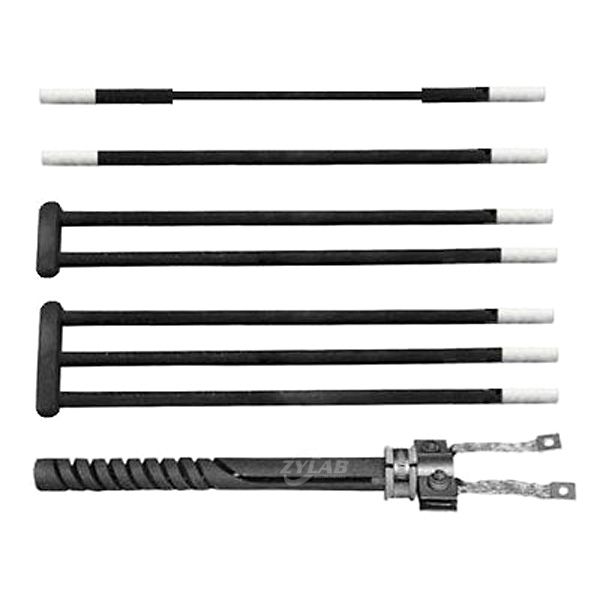

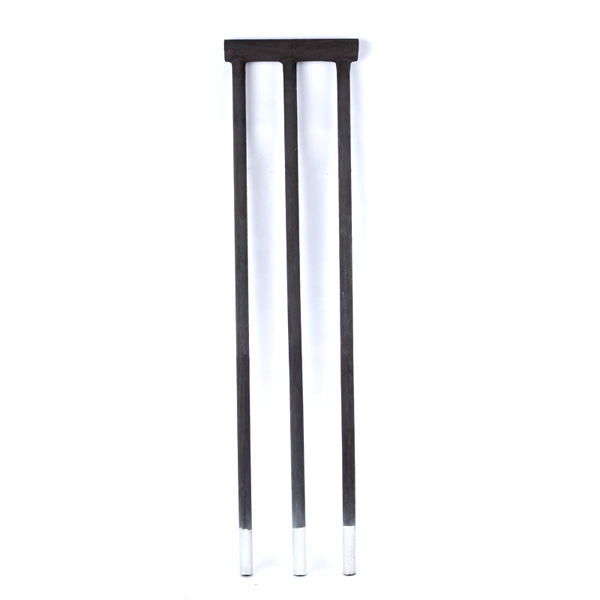

ZYLAB w type silicon carbide heating element serves as a high-temperature heating device crafted from high-purity silicon carbide materials. It delivers excellent temperature resistance, thermal conductivity, and chemical stability.
We form it using a 500T press, which ensures uniform density throughout the element. Additionally, we apply a protective coating to the surface of the heating zone, significantly enhancing its oxidation resistance, extending its service life, and reducing the frequency of replacements.

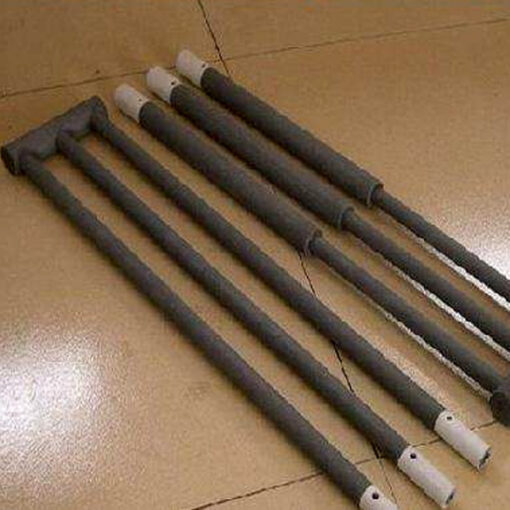

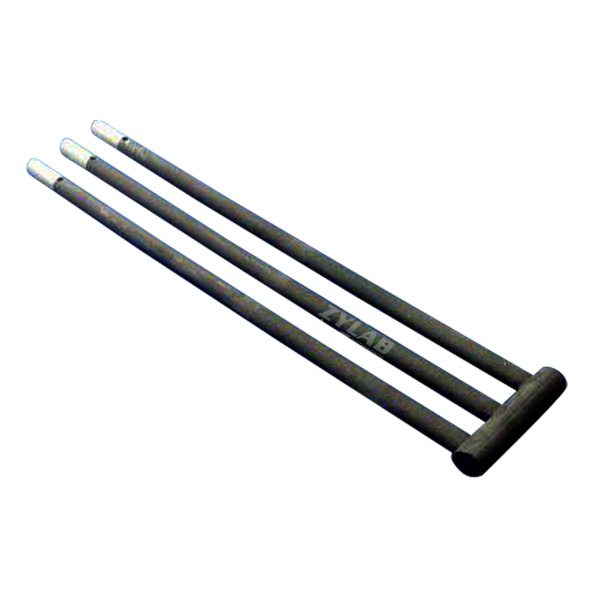

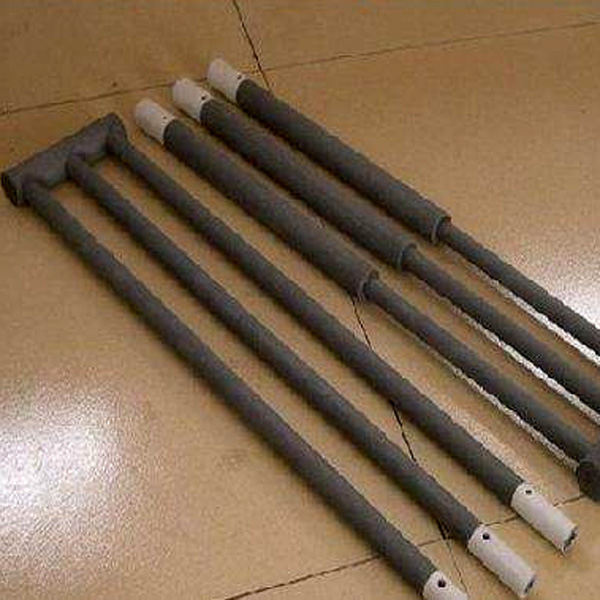

The unique W-type design not only boosts heating efficiency but also guarantees uniform heat distribution. This makes it particularly well-suited for high-temperature furnaces, such as muffle furnaces.
It finds widespread application in ceramics, metals, glass manufacturing, and laboratories, providing reliable solutions for various high-temperature heating processes.

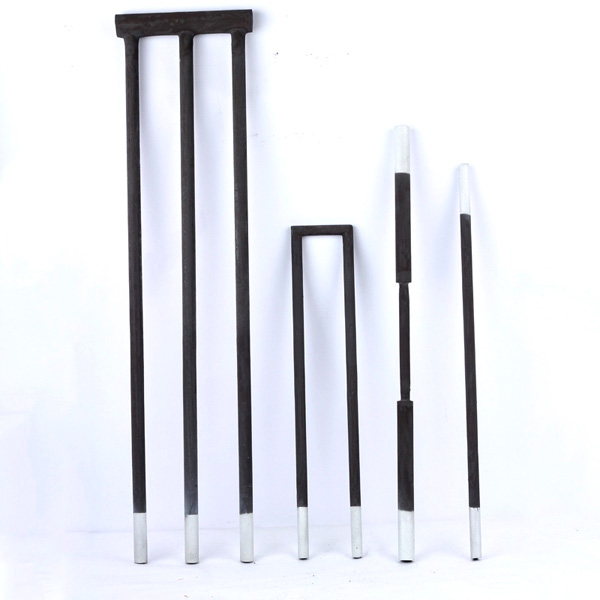

We offer customization options for the W-type silicon carbide heating element, allowing adjustments to diameter, length, and power according to different requirements.
Silicon carbide heating elements are customized products. Please provide detailed specifications and quantities, and we will offer you a free quote!
Customized products have a certain production cycle, typically ranging from 1 to 7 working days. The timeframe may vary for different specifications, so please consult customer service for specifics.
Key Features
1、Made from high-precision silicon carbide, it is a high-temperature, oxidation-resistant, and low-aging resistive heating element.
2、Provides uniform red heat, ensuring furnace temperature stability, low energy consumption, high efficiency, and environmental protection.

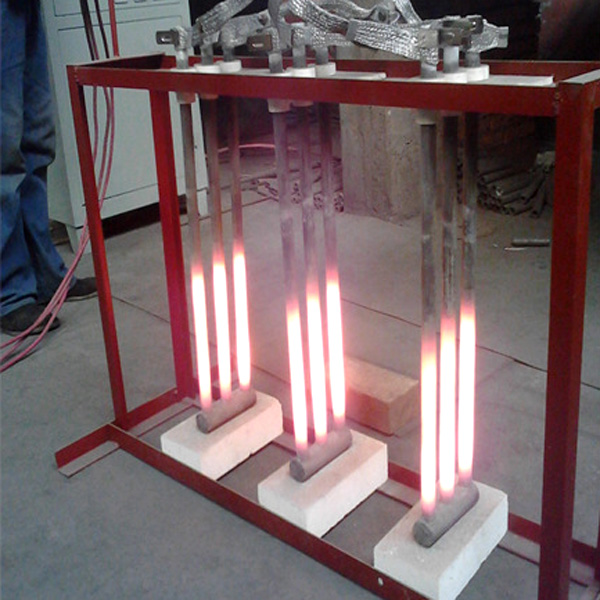

3、Resistor measurement at 1050°C during the final shaping process ensures consistent resistance and rapid heating.
4、Sintered through a 2200°C high-temperature vacuum furnace process, the hot and cold ends are bonded together, enhancing the toughness of the silicon carbide rod and extending its service life, making it less prone to arcing under high current impact.
Physical Properties
Specific gravity | Bend strength | Hardness | Tensile strength | Porosity rate | Radiancy |
2.6-2.8g/cm³ | >300kg | >9MOH’S | >150kg/cm³ | <30% | 0.85 |
Chemical Properties
SiC heating rods exhibit relatively stable chemical properties. Alkaline substances can chemically react with silicon carbide rods under high-temperature conditions, while acidic substances generally do not react.
During high-temperature use, silicon carbide rods can react with water vapor and oxygen to produce silicon dioxide, carbon dioxide, and hydrogen gas. As the amount of silicon dioxide in the silicon carbide rod increases, its resistance gradually rises, which is part of the aging process of the rod.
The hydrogen produced can react with oxygen to form water, creating a cyclical reaction, and it can also reduce the mechanical strength of the silicon carbide rod. Therefore, it is advisable to avoid excessive water vapor during use.
To learn more about silicon carbide heating rods, please click here!
Specifications Requirements

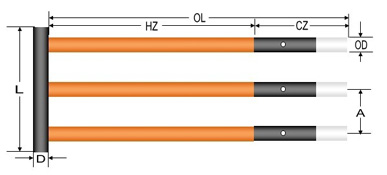

Type: W
Outer diameter (OD): mm
Overall length (OL): mm
Hot zone length (HZ): mm
Cold end length (CZ): mm
Shank spacing (A): mm
Resistance: Ω (1050C +/-50C)
When ordering through ZYLAB, please specify your exact requirements and, if possible, attach drawings.
We offer free quotes for all silicon carbide rod products!
