Planetary Ball Mill Accessories Vertical Ball Mill Jars

A vertical ball mill jar is a container used in ball milling, a type of grinding process that uses balls (usually made of steel, ceramic, etc) to crush materials into fine powders or slurries. Ball milling is commonly used in laboratories for purposes such as mixing, homogenizing, and mechanical alloying.

Send Inquiry Categories: Battery R&D, Ceramics and Target Material Preparation, Chemistry, Crushing, Environmental Science, Grinding, Lithium Battery & Renewable Energy, Magnetic Material Preparation, Material Science, Metallurgy, Mixing, Nanomaterials Synthesis, Planetary Ball Mill, Powder Material Preparation, Semiconductor, Semiconductor R&D, Wastewater Treatment Tags: Agate Grinding Jar, Alumina Ball Mill Jar, Corrosion-Resistant Ball Mill Jar, Grinding Jar, High-Efficiency Ball Mill Jar, High-Temperature Ball Mill Jar, Laboratory Ball Mill Jar, Nylon Ball Mill Jar, Oxidation-Resistant Ball Mill Jar, Planetary ball mill accessories, Polyurethane Ball Mill Jar, PTFE Ball Mill Jar, Silicon Carbide Ball Mill Jar, Silicon Nitride Ball Mill Jar, Stainless Steel Ball Mill Jar, Tungsten Carbide Ball Mill Jar, Vertical Ball Mill Jar, Wear-Resistant Ball Mill Jar, Zirconia Ball Mill Jar

Description
SPECIFICATIONS

Planetary Ball Mill Accessories Vertical Ball Mill Jars

Introduction:

Features of ZYLAB Vertical Ball Mill Jars:

Mold-made with extremely smooth inner and outer walls to avoid material sticking during grinding.
Made from new raw materials, offering strong oxidation resistance.
Bottom designed with large radius corners to reduce material settling during grinding.
High grinding efficiency and long service life.
Designed according to market demands, compatible with various planetary ball mills.

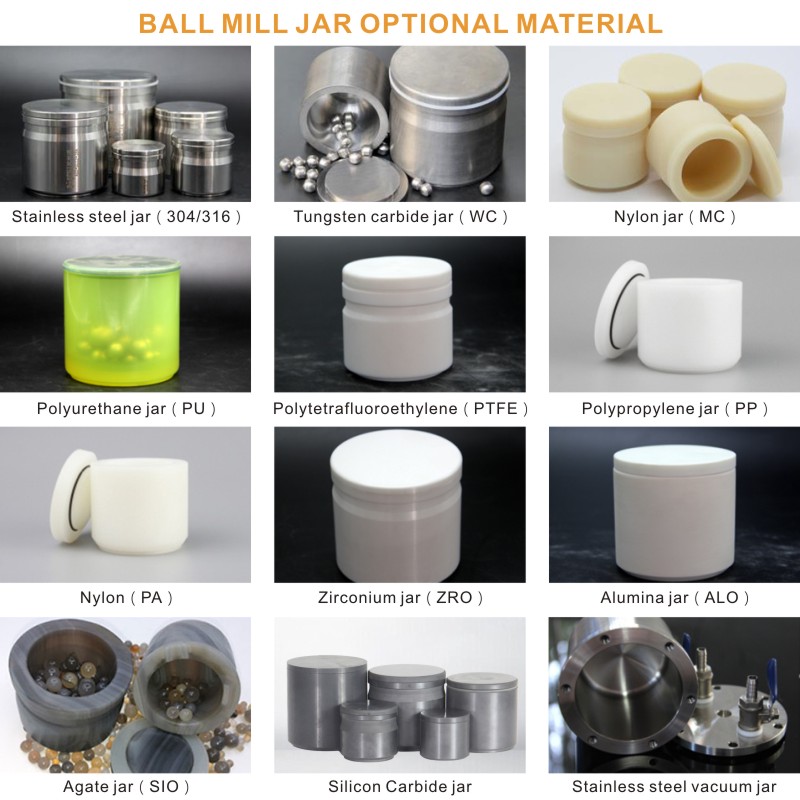

Classification and Advantages:

Metal Types

Stainless Steel Ball Mill Jar

Features: Wear-resistant, corrosion-resistant, high-temperature resistant, suitable for harsh environments.

Tungsten Carbide Ball Mill Jar

Features: Wear-resistant, corrosion-resistant, twist-resistant, high-temperature resistant, suitable for harsh environments.

Ceramic Types

Alumina Ball Mill Jar

Features: Resistant to various solvents, strong acid and alkali resistant, impact resistant.

Zirconia Ball Mill Jar

Features: Wear-resistant, chemically resistant, high-temperature resistant, inorganic acid resistant, non-toxic, and odorless.

Silicon Carbide Ball Mill Jar

Features: Wear-resistant, corrosion-resistant, twist-resistant, high-temperature resistant, strong acid and alkali resistant, impact resistant.

Silicon Nitride Ball Mill Jar

Features: Wear-resistant, chemically inert, thermally shock resistant, resistant to various solvents, strong acid and alkali resistant, impact resistant.

Polymer Types

Polyurethane Ball Mill Jar

Features: High mechanical strength and oxidative stability, high flexibility and rebound resilience, extremely smooth surface.

Nylon Ball Mill Jar

Features: Good comprehensive performance, lightweight, high strength, creep resistant, wear-resistant, heat-aging resistant.

PTFE Ball Mill Jar

Features: Wear-resistant, corrosion-resistant, high-temperature resistant, suitable for harsh environments.

Natural Mineral Types

Agate Grinding Jar

Features: High purity, non-polluting, no heat effect, reduces sample fracture, wear and extrusion resistant.

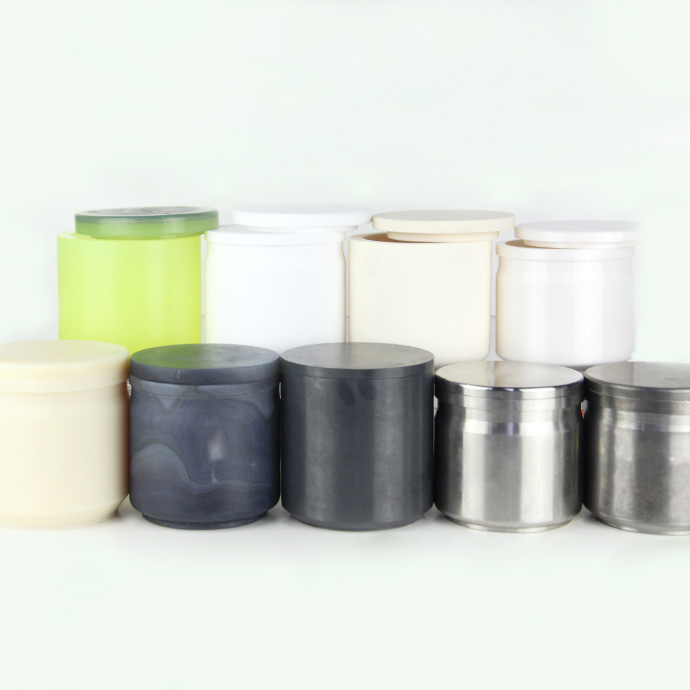

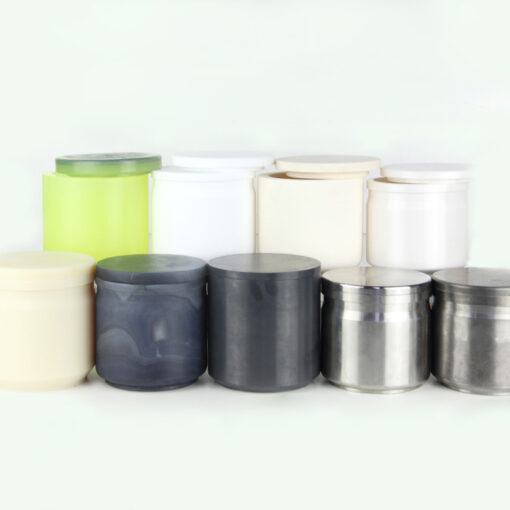

Vertical Ball Mill Jars

Specifications of Vertical Ball Mill Jar :

Model	50ml	100ml	250ml	500ml	1L	2L	3L	5L	10L	15L	20L
Stainless Steel Ball Mill Jar	☆	☆	☆	☆	☆	☆	☆	☆	☆	☆	☆
PTFE Ball Mill Jar	☆	☆	☆	☆	☆	☆	☆	☆		☆
Agate Ball Mill Jar	☆	☆	☆	☆	☆	☆	☆
Zirconia Ball Mill Jar	☆	☆	☆	☆	☆	☆	☆	☆
Tungsten-carbide Ball Mill Jar	☆	☆	☆	☆	☆
Polyurethane Ball Mill Jar	☆	☆	☆	☆	☆	☆	☆	☆	☆
Silicon Nitride Ball Mill Jar	☆	☆	☆	☆	☆
Nylon Ball Mill Jar	☆	☆	☆	☆	☆	☆	☆	☆	☆	☆	☆
Alumina Ball Mill Jar	☆	☆	☆	☆	☆	☆	☆	☆	☆

Note: ☆ indicates standard models; other models require customization.

Matched Planetary Ball Mill:

Model	Spec	With ball mill jar		Remarks
		Spec(ml)	Quantities
YXQM-0.4L	0.4L	50-100ml	2 or 4	With 50ml vacuum ball mill jar
YXQM-1L	1L	50-250ml	2 or 4	With 50-100ml vacuum ball mill jar
YXQM-2L	2L	50-500ml	2 or 4	With 50-250ml vacuum ball mill jar
YXQM-4L	4L	50-1000ml	2 or 4	With100-500ml vacuum ball mill jar
YXQM-8L	8L	500-2000ml	2 or 4	With250-1000ml vacuum ball mill jar
YXQM-10L	10L	500ml-2.5L	2 or 4	With 250-2.5L vacuum ball mill jar
YXQM-12L	12L	1L-3L	2 or 4	With 500-3L vacuum ball mill jar
YXQM-16	16L	1L-4L	2 or 4	With 500-4L vacuum ball mill jar
YXQM-20L	20L	1L-5L	2 or 4	With 1000-5L vacuum ball mill jar
YXQM-40L	40L	4L-10L	2 or 4	With 3L-10L vacuum ball mill jar
YXQM-60L	60L	6L-15L	2 or 4	With 5L-15L vacuum ball mill jar
YXQM-80L	80L	6L-20L	2 or 4	With 5L-20L vacuum ball mill jar
YXQM-100L	100L	10L-25L	2 or 4	With 9L-25L vacuum ball mill jar

Get In Touch

Fill out the form below — free quote and professional suggestion will be sent for reference very soon!

SPECIFICATIONS

Name: Ball Grinding Mill
Model: YXQM-2L(Oil seal mute）
Field of Application: Pharmaceuticals, food, geology, metallurgy, agriculture, glass, ceramics, aviation chemicals, biology, materials, lithium power, electronics, plants, biology and so on.
Feed Material: Medium or low hardness, hard, brittle, fibrous, viscous.
Size Reduction Principle: Crushing, grinding, mixing, homogenization, alloying
Main Disk Structure: Planetary main disk gear invades and reinforces in lubricating oil, noise isolation treatment
Standard: CE
Electrical Description: 100-120V/200-240V AC ,50-60Hz, 1PH (0.75KW)
Material Feed Size: < 5 mm soil<10 mm
Final Fineness: < 100 nm
Batch Size / Feed Quantity: 4 x 500 ml
Grinding Jar Sizes: 50 ml /100 ml / 250 ml / 500 ml
Vacuum Jar Size: 250 ml /500ml( Stainless steel)
Feed Material Capacity: 160 ml*4
Feed balls Capacity: 160 ml*4
Sun Wheel Speed: 10 – 400 r/min
Ball Mill Jar Speed: 20 – 800 r/min
Total Grinding Speed: 1200 /min
Speed Ratio: 1:2
Material of Grinding Tools: Stainless steel, agate, zirconia, corundum, tungsten carbide, nylon, polyurethane, polytetrafluoroethylene, silicon carbide, etc.
Ball Size: 1 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 mm
No. of Grinding Stations: 2 or 4
Mode: Vertical planetary
Grinding Mode: Dry/wet
Low Temperature Cooling Treatment: Yes (air cooler added)
Oil Seal Position: The bottom of planetary main disk
Disk Dimensions: 360mm
Oil Seal Capacity: 800ml(fill in before using the planetary ball mill)
Noise: < 60dB(Within 3 metre）
Protection Code: IP60
CN Patent: Safety protection (No.ZL 2015 2 0836150.6）
CN Patent: Oil seal silent (Patent No.ZL 2014 2 0375569.1）
CN Patent: Frequency control(Patent No.ZL 2016 2 0836150.6）
W x H x D Closed: 30 45/64" x 22 53/64" x 26 49/64" (780 x 580 x 680 mm)
Net Weight: 242.5 lbs (110 kg)
