Vacuum Sealing Flange

Zylab vacuum sealing flange with sizes to suit most tube furnaces, suitable for ceramic, glass, quartz and steel tubes.

A multifunctional temperature measuring hole is reserved on the newly designed flange, and the corresponding electrode can be inserted according to the experimental needs to measure the temperature, humidity and other data in the tube! The temperature measuring hole can also be vacuum sealed, which is not available in other manufacturers!

Send Inquiry Category: Accessories Tag: Vacuum Sealing Flange

Description
SPECIFICATIONS

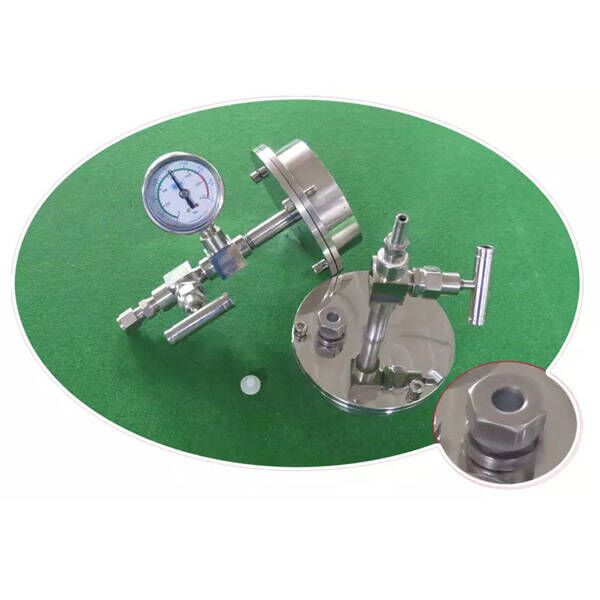

Vacuum Sealing Flange Systems with Vacuum Meter / Valves

General Description:

Zylab vacuum sealing flange with sizes to suit most tube furnaces, suitable for ceramic, glass, quartz and steel tubes.
Made of 304/316 grade stainless steel with double high temperature silicone O-rings on each flange. One end flange has a vacuum gauge with adjustable valve, and another end has an adjustable valve.
Each set includes: one flange with gauge and valve, one flange with valve, two steel sealing rings, four high temperature silicone O-rings, and six screws.
A multifunctional temperature measuring hole is reserved on the newly designed flange, and the corresponding electrode can be inserted according to the experimental needs to measure the temperature, humidity and other data in the tube! The temperature measuring hole can also be vacuum sealed, which is not available in other manufacturers!
