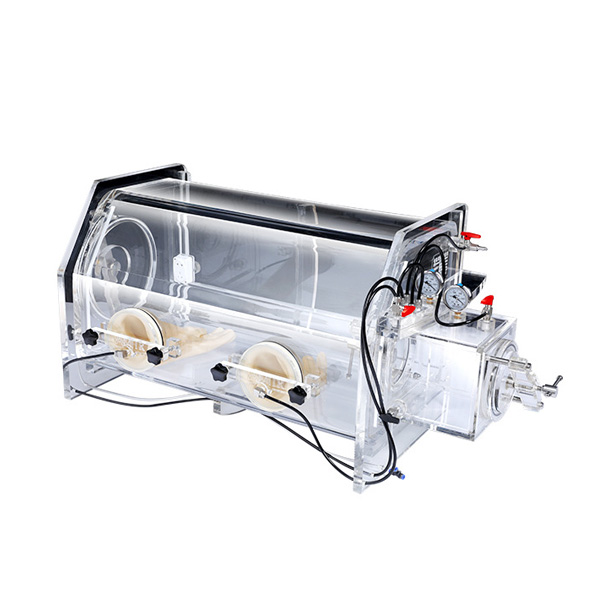

Type C Laboratory Acrylic Vacuum Glove Box
Introduction:
Building on the features of Type A and Type B glove boxes, the Type C vacuum glove box requires control of water and oxygen levels during experiments. This is achieved by using a vacuum pump to extract air from the box and then introducing high-purity, dry inert gas to achieve a low water and oxygen environment inside the box. This model uses acrylic panels with a thickness of 20mm to 30mm and includes a transfer transition chamber.
In scientific experiments, some substances are highly prone to oxidation and deliquescence under atmospheric conditions, making chemical reactions and pre-processing of samples very difficult, which affects the experimental process and test results. The vacuum glove box (also known as the vacuum inert gas operation box) effectively solves the problems of oxidation and deliquescence. This device allows samples to be safely placed and removed, and operated, reacted, and tested in an oxygen-free and water-free environment, ensuring the normal progress of scientific experiments.
Applications:
Acrylic Vacuum Glove Box can be used in cooperation with scientific research units for low-energy radioactive material experiments, sterile operations for microorganism inoculation, qualitative and quantitative analysis of chemical substances, and other related sealed isolation operations. It is applicable in fields like biochemistry, metallurgy, electronics, chemical industry, geology, mining, medicine, magnetic materials, battery equipment, biological cultivation, food packaging, battery materials, and other processes requiring a protective atmosphere. This product is an ideal device for universities, research institutions, and corporate laboratories to conduct scientific experiments.

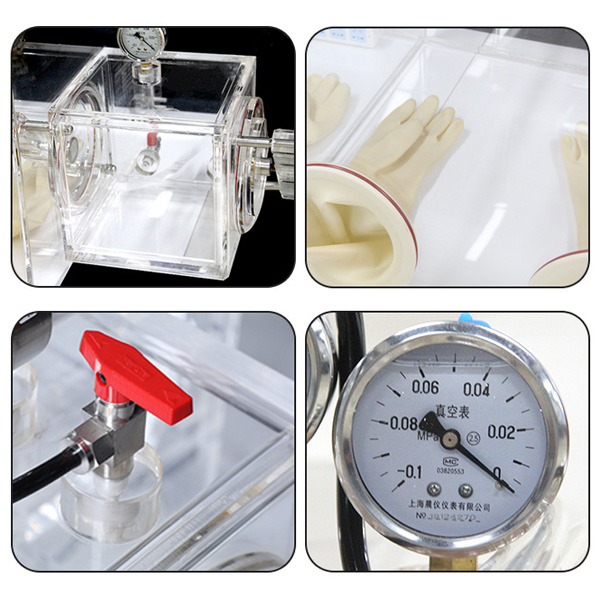

Features and Benefits of Vacuum Glove Box:
- Full Transparent Box: The entire operation box is made of transparent acrylic, providing a clear view inside with a wide, unobstructed perspective.
- Thick Latex Gloves: The operating gloves are made of thick latex, ensuring reliable and durable sealing.
- Sealed Latch: The triangular sealed latch ensures the product’s airtightness, ensuring professional processes and rigorous experiments.
- High Transparency Acrylic Board: Made of more than 10mm thick acrylic board, ensuring good durability and quality assurance.
- Stainless Steel Handle: Designed with a stainless steel handle, it is not easy to loosen, safe, reliable, and easy to operate.
- Large Side Door: Designed with a large side door, making it easy for you to access the inside of the box, ensuring your working environment remains clean.
Technical Parameters of Vacuum Glove Box:
|
Operation Box Dimension(mm) |
Material |
Material Thickness(mm) | Transition Chamber | Vacuum is pumped | Left Round Door | Gloves | Transition Box Dimension(mm) | ||
Operation
Box |
Transition Box | |||||||||
MT012-C | 700*450*500 | PMMA | 10mm | Have | Yes | Yes | 300mm | 2 | 240×240×240 | |
MT011-C | 800*550*600 | PMMA | 10mm | Have | Yes | Yes | 350mm | 2 | 240×240×240 | |
MT010-C | 1000*500*500 | PMMA | 10mm | Have | Yes | Yes | 300mm | 2 | 240×240×240 | |
MT009-C | 1000*700*500 | PMMA | 10mm | Have | Yes | Yes | 300mm | 2 | 240×240×240 | |
MT008-C | 900*600*700 | PMMA | 10mm | Have | Yes | Yes | 350mm | 2 | 240×240×240 | |
MT007-C | 1000*600*700 | PMMA | 10mm | Have | Yes | Yes | 350mm | 2 | 240×240×240 | |
MT006-C | 1000*750*700 | PMMA | 10mm | Have | Yes | Yes | 350mm | 2 | 240×240×240 | |
MT005-C | 1200*600*600 | PMMA | 10mm | Have | Yes | Yes | 350mm | 3 | 240×240×240 | |
MT004-C | 1200*600*700 | PMMA | 10mm | Have | Yes | Yes | 350mm | 3 | 240×240×240 | |
MT003-C | 1200*800*600 | PMMA | 10mm | Have | Yes | Yes | 350mm | 3 | 240×240×240 | |
MT002-C | 1200*800*700 | PMMA | 10mm | Have | Yes | Yes | 350mm | 3 | 240×240×240 | |
MT001-C | 1094*640*645 | PMMA | 10mm | Have | Yes | Yes | 400mm | 4 | 240×240×240 |
Optional:
- Can choose vacuum pump, and also can be customized according to demand.
- Type A: This glove box is specifically for protection against radiation, isolation operation or dust-proof operation, and no transition box.
- Type B: As an anaerobic glove box, the transition room can be vacuumed but not vacuum in the main box, and the glove box could be replaced by inert gas.
- Type C: The main box and transition box can be vacuumed and replaced by inert gas, max vacuum level can reach -0.1mpa.
