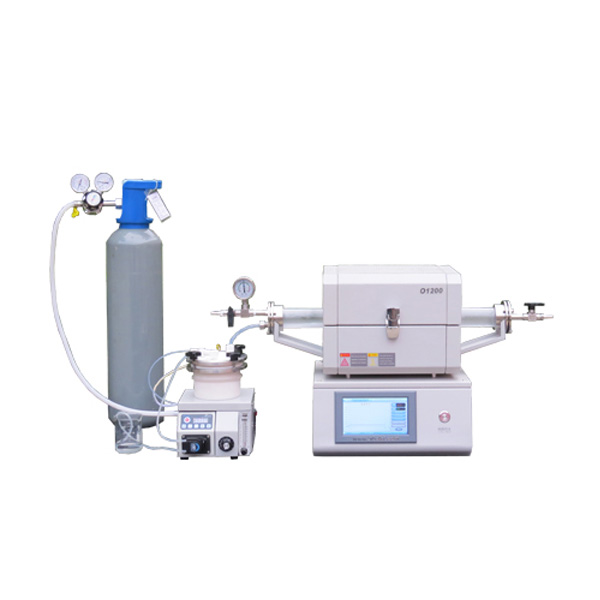

Ultrasonic Atomization CVD Furnace
Overview:
This Ultrasonic Atomization CVD Furnace is an Aerosol-Assisted Chemical Vapor Deposition (AACVD) system (using liquid/gas aerosol precursors to grow on substrates), designed for applications such as fuel cells and ZnO transparent conductive films. It consists of three main modules: a microflow liquid high-precision delivery system, an ultrasonic atomization system, and a tube furnace with a maximum temperature of 1200°C. This technology is suitable for using non-volatile precursors and can be widely applied in the preparation of nanomaterials, electrode material coating, and composite materials.
Main Features:
- Liquid Flow Control System: High-precision delivery of intermediates, microflow liquid delivery; flow range: 0.04 to 36 ml/min.
- Atomization Device: Equipped with a 1.7 MHz ultrasonic atomizer that can atomize liquids into fine particles and deliver them into the tube furnace.
- Heating System (Customizable Tube Furnace): Maximum temperature up to 1200°C.
Technical Parameters of Ultrasonic Atomization CVD Furnace:
Power supply | AC220V 1.2KW | ||
T-max | 1200℃ | ||
Long-term
Operating Temperature Range |
300~1150℃ | ||
Heating Rate | 1℃/H-20℃/Min | ||
Heating Zone Length | 200mm | ||
High-Precision Peristaltic Pump | 1.Speed range: 0.1 to 100 rpm, reversible;
2.Speed resolution: 0.1 rpm; 3.Speed adjustment: Membrane button; 4.Display mode: 4-digit LED shows current speed or flow rate; 5.Made of reinforced PP material, corrosion-resistant; 6.Flow rate: 0.04-13 ml/min; 7.Equipped with a full-speed button for fast emptying and filling; 8.Features power-off memory to save operating parameters promptly. |
||
Atomizer | 1.AC220V, 1.7 MHz ultrasonic atomizer;2.Liquid tank made of PTFE, corrosion-resistant, sealed with a silicone O-ring;
3.Atomization flow rate controlled by a gas flow meter; 4.Continuous atomization operation; 5.Flow rate: 0.04-13 ml/min. |
||
Control System | 1.Can store up to 15 temperature curves to avoid the hassle of repeated settings for different experiments;
2.More intuitive experimental process, easier operation; 3.Optional wireless control module for remote operation; 4.Features over-temperature alarm, thermocouple break warning, and leakage protection. |
||
Heating Element | Mo-doped Fe-Cr-Al alloy. | ||
Flow Control | Equipped with a standard float flowmeter, flow range 60-600 ml/min (other ranges can be customized upon request). | ||
Net Weight | 30KG | ||
Usage Precautions | 1.Do not open the furnace chamber when the temperature is ≥300°C to avoid injury.
2.When using the equipment, ensure that the pressure inside the tube does not exceed 0.125 MPa (absolute pressure) to prevent the sealing flange from being blown off due to excessive pressure. 3.When used in high vacuum conditions (10⁻³ Pa), the operating temperature should not exceed 800°C. |
||
Service Support | One-year limited warranty with lifetime support (consumable parts such as processing tubes and O-rings are not covered under warranty and should be ordered separately under related products). |
