Introduction

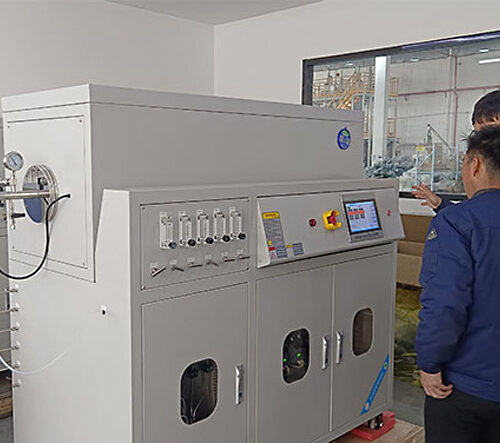

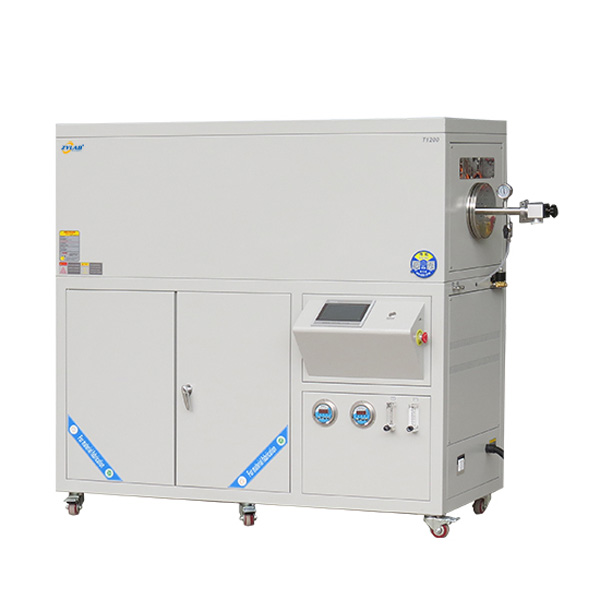

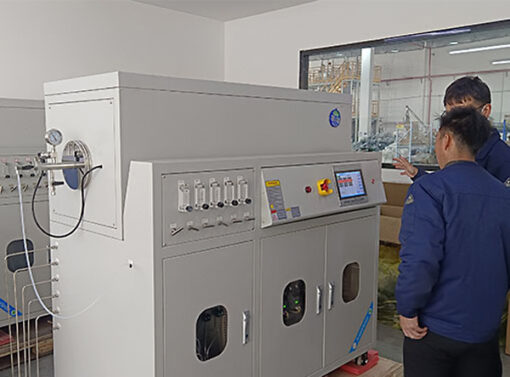

The Large-Diameter Tube Furnace for Advanced Carbon Materials R&D is specially developed and manufactured for large workpieces or batch heat treatment production. It is primarily used in industries such as advanced carbon materials R&D, semiconductor wafer annealing, LED phosphor, substrate materials, battery materials production, and more.

The furnace tube is made of large-diameter high-purity quartz material, which can be used for both atmosphere processing and vacuum applications. It adopts intelligent PID fuzzy control and multi-point temperature measurement to ensure uniform temperature distribution inside the furnace.

Features and Benefit

1.Ultra-large pipe diameter, ultra-long temperature zone, and multi-point temperature control to ensure uniform temperature distribution of the equipment; which can be used in laboratories and production enterprises.
2.High purity quartz tube or stainless steel tube as furnace tube, Max. Temperature 1200.C, working temperature Rt –1100.C.
3.30 segments programmable Precise temperature control. and auto control.
4.7”Color Touch screen LCD intelligent man-machine English interface, more intuitive and convenient operation, the graph of sintering curve with temperature changes makes you clear at a glance.
5.Can presetting 15 sintering curves to avoid the trouble caused by repeated settings of different processes.
6.High-purity Inorganic Al2O3 fiber refractory insulation material, vacuum adsorption molding, excellent insulation effect, greatly reducing the power consumption of equipment; Safe and environmentally friendly.
7.Full fiber structure, annular heating, energy saving and high efficiency.
8.Perfect protection measures for over-temperature, thermocouple-break, leakage and so on, safe and worry-free!
9.Double-layer thermal insulation structure with air-cooling, to ensure the surface of furnace below 50C, safety for the operator.
10.Equipped with a constant pressure system, which can automatically adjust the pressure in the furnace tube.
11.Quick-open stainless steel sealing flange is convenient for users to take and unload materials.

Technical Specifications of Tube Furnace for Advanced Carbon

Model	T1200-152T2	T1200-152T3	T1200-215T3
Power Supply	AC380V 10KW	AC380V 15KW	AC380V 24KW
Max.temp	1200 ℃ （<1hour）
Working temp	1100 ℃ (Continuous)
Heating Rate	≤ 20°C/min
Heating Zone Length	600mm	1100mm	1100mm
Furnace Tube Size	Φ152*1200mm	Φ152*1650mm	Φ215*1660mm
Intelligent Touch Screen Control System	1. PID automatic control and auto-tune function. 2. 30 programmable segments for precise control. 3. Built in protection for over-heated and broken thermal couple, and leakage. 4. Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation. 5. Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes.
Temperature Accuracy	+/- 1 ℃
Heating Element	Mo-doped Fe-Cr-Al Alloy
Sealing System Quick-opening stainless steel sealing flanges
	Vacuum: ≤10Pa (Mechanical Pump)
Pressure Measurement and Monitoring		Intelligent digital pressure gauge for precise pressure display and adjustable pressure settings. It works with a high-precision, high-stability solenoid valve to maintain stable internal furnace tube pressure. Additionally, the device is equipped with a backup pressure protection system for enhanced safety and reliability.
Gas Supply System		Floater flow meter to control gas flow rate(can customized high-precision MFC), integrated with the equipment. Leakage testing is performed before delivery
Net Weight	85KG	105KG	215KG
Service Support	1-year warranty with lifetime support (does not cover consumables such as furnace tubes and seals).

Precautions for Use

1. When using the equipment, the internal pressure of the furnace tube must not exceed 0.125MPa (absolute pressure) to prevent equipment damage.
2. Gas cylinders have high internal pressure. When feeding gas into the furnace tube, a pressure-reducing valve must be installed on the gas cylinder. It is recommended to select a small pressure-reducing valve with a range of 0.01MPa-0.15MPa for more accurate and safer operation.
3. When the furnace temperature exceeds 1000°C, the furnace tube should not be under vacuum. The internal pressure of the furnace tube should be at atmospheric pressure.
4. During heating experiments, it is not recommended to close the gas inlet and outlet valves at the furnace tube flanged ends. If gas valves must be closed during sample heating, constantly monitor the pressure gauge reading. The absolute pressure gauge reading should not exceed 0.15MPa.

Which kinds of industry can use this furnace?

The Large-Diameter Intelligent Tube Furnace is widely used in colleges and universities, research institutes, and industrial enterprises across sectors such as chemicals, electronics, and advanced materials.

It is ideal for research and manufacturing in fields including:

• Advanced carbon materials
• Semiconductors
• LED phosphors
• Substrate materials
• Battery materials, and more.

Applications

This Large-Diameter Tube Furnace is specially designed for the heat treatment of large workpieces and batch production. It features multi-zone temperature control and atmosphere control systems, ensuring precise temperature uniformity and flexible processing environments to meet various experimental and production needs.

Typical applications include:

• Semiconductor wafer annealing
• LED phosphor preparation
• Substrate material processing
• Battery material synthesis
• Advanced carbon material development
• And other processes requiring high-precision temperature control and protective or reactive atmospheres, such as vacuum, inert gas, or reducing/oxidizing atmospheres.

This furnace offers high consistency, process stability, and scalability, making it an ideal solution for both research laboratories and industrial production lines.
