Battery Testing System for Cylindrical and Pouch Cells
Introduction:

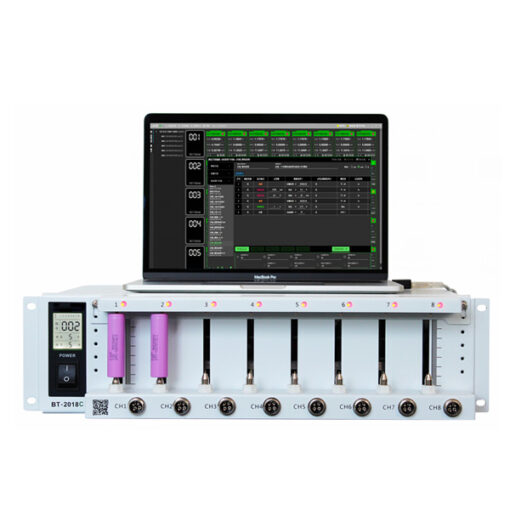

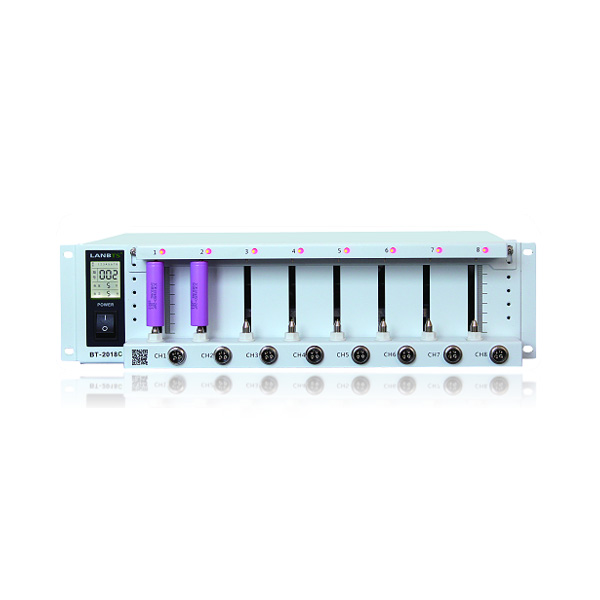

The BT-2018C Testing System for Cylindrical and Pouch Cells is designed for battery production enterprises and research institutes’ pilot production lines. The front panel’s four-wire needle fixture can meet the testing needs of over 80% of original batteries (cells). The lower end of the front panel is equipped with an aviation plug interface for convenient testing of polymer soft-pack batteries.
Testing Parameters: Charge-discharge curves, charge-discharge efficiency, battery capacity, specific capacity, cycle life, capacity decay curves, DCIR internal resistance, leakage current of supercapacitors, and other parameters.
Voltage Range: Charging Voltage: 0V to 5V; Discharge Voltage: 2V or 0V (optional)
Current Range: Maximum current range options: 1A, 2A, 3A, 5A, 10A; Four automatic switching gears based on the maximum current range achieved through hardware.
| Maximum Current Range | Range Setting | Four Switching Gears |
| 1A | 10uA to 1000mA | 1mA – 10mA – 100mA – 1000mA |
| 2A | 20uA to 2000mA | 2mA – 20mA – 200mA – 2000mA |
| 3A | 30uA to 3000mA | 3mA – 30mA – 300mA – 3000mA |
| 5A | 50uA to 5000mA | 5mA – 50mA – 500mA – 5000mA |
| 10A | 100uA to 10000mA | 10mA – 100mA – 1000mA – 10000mA |
Application Areas:
Used for sampling, testing, and research on individual battery cells, such as square cells, cylindrical cells, polymer cells, etc., in battery production enterprises and battery research institutions.
Key Features:
1.The front panel features both four-wire needle fixtures and an aviation plug, catering to the testing needs of the majority of batteries.
2.The front panel includes a 3-inch LCD screen displaying information such as box number, voltage range, current range, communication status, and channel number.
3.It adopts a front-to-back airflow for heat dissipation, with a dedicated air duct to effectively prevent dust from affecting circuit components. The fan is designed with temperature control, significantly reducing overall noise.
Basic Parameters:
Test Channels: 8CH per unit, independently controlled
Product Features: Equipped with four-electrode needle fixtures
Charging Voltage: 0V to 5V
Discharge Voltage: 2V or 0V (optional)
Current (adaptive four ranges): 1A, 2A, 3A, 5A, 10A (optional)
Current Accuracy: ±0.05% of FS; Stability: ±0.05% of FS
Voltage Accuracy: ±0.05% of FS; Stability: ±0.05% of FS
System Voltage: AC220V/50Hz; ±50%
Equipment Dimensions: 49cm × 38cm × 13cm(Length × Depth × Height)
Weight: 10kg
