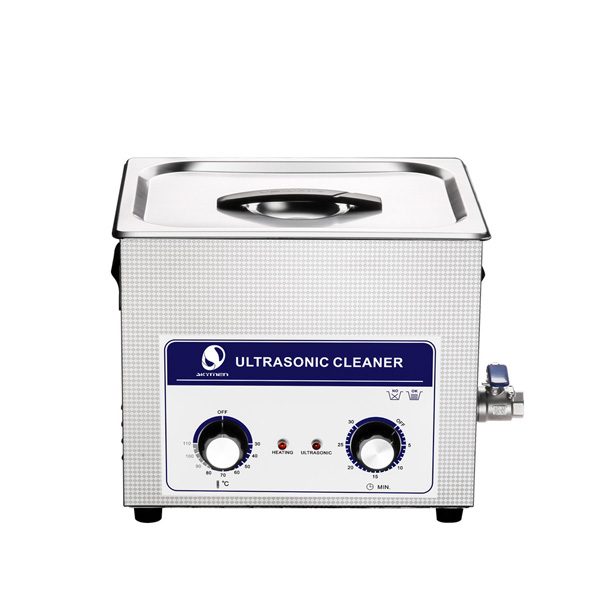

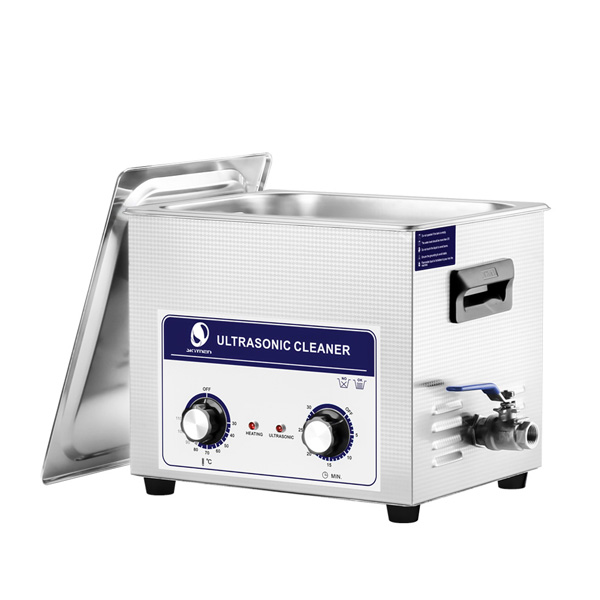

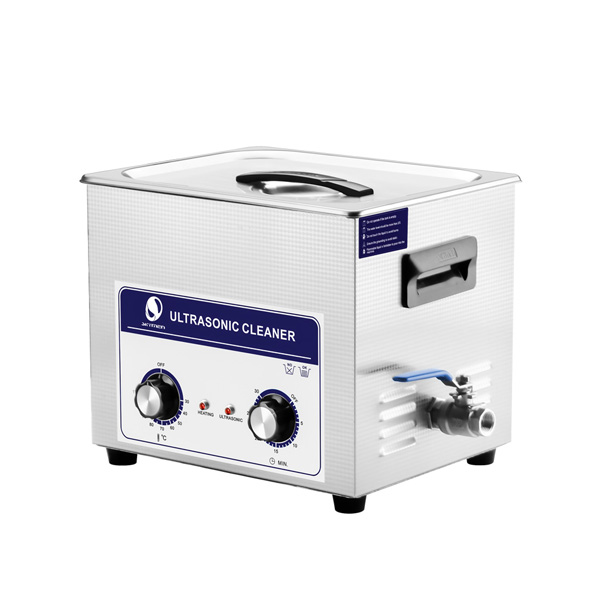

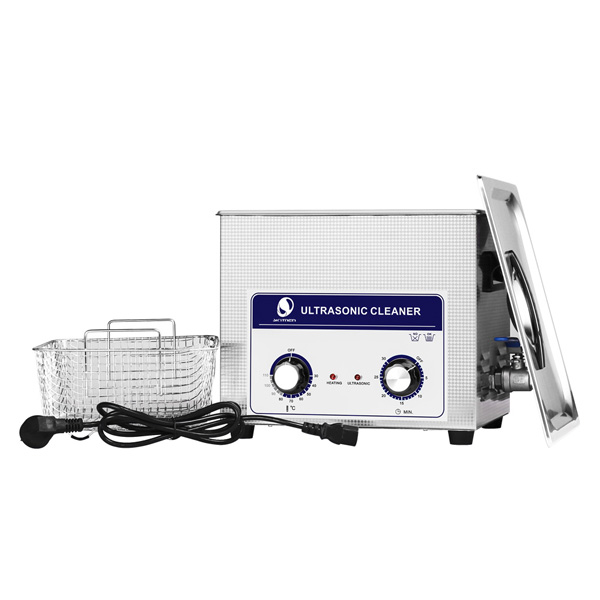

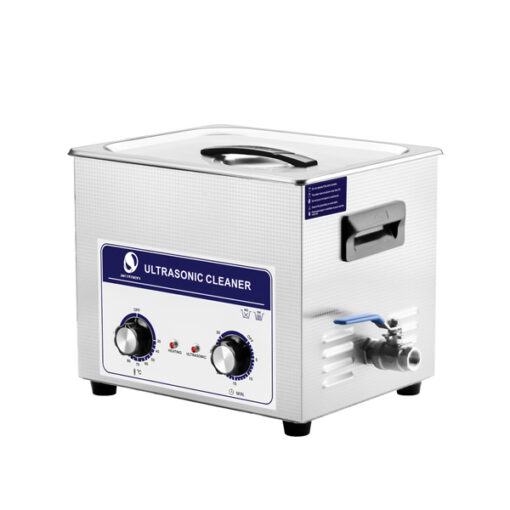

10L Small Ultrasonic Cleaner
Introduction:
Ultrasonic cleaner is device that use ultrasonic waves to clean objects. It is widely used in various industries and applications due to its effectiveness in removing contaminants from surfaces.
Principle of Operation: Ultrasonic cleaners work by generating high-frequency sound waves. These sound waves create millions of tiny bubbles in a cleaning solution, a process known as cavitation. The bubbles implode violently upon contact with the surface of the object being cleaned, dislodging dirt, grease, oil, and other contaminants.
Main Features and Benefits:
- Dual mechanical knob controls for easy adjustment of temperature and time.
- Inner tank made of 304 stainless steel, pressed in one piece without welding to prevent water leakage.
- Outer shell made of 304 stainless steel embossed plate, fingerprint-proof and corrosion-resistant.
- Bottom equipped with non-slip and shock-absorbing rubber feet for stable and slip-resistant operation.
- Adjustable time range of 1-30 minutes to meet various cleaning time requirements.
- New heating method with fast heating speed, adjustable from room temperature to 80°C.
- Industrial-grade ultrasonic transducer (vibrator) with long service life.
- Models with a capacity of 6.5L and above come with a drain valve for quick drainage of cleaning solution.
Technical Specifications:
Model | JP-040 | Ultrasonic frequency | 40KHz |
Inner tank material | Stainless steel (SUS304) | Capacity | 10L |
Time control | Mechanical control (1-30 minutes) | Ultrasonic power | 240W (4 transducers) |
Heating power | 200W (mechanical heating) | Inner tank size | 300*240*150mm (L*W*H) |
Product size | 325*265*280mm (L*W*H) | Packaging size | 430*345*380mm (L*W*H) |
Power supply | AC100-120V, 50/60Hz; AC220-240V, 50/60Hz | ||
Weight | N.W. 7.5KG, G.W. 8.3KG | ||
Certification | ISO, CE | ||
Warranty | One year, lifetime support |
Application Fields of Small Ultrasonic Cleaner:
Laboratory utensils, mechanical parts, hardware parts, electronic components (circuit boards), medical instruments, jewelry, tickets/cards, and other small items.
Detail Applications:
- Laboratory and Scientific: Utilized in laboratories for cleaning glassware, laboratory equipment, and delicate instruments.
- Medical and Dental: Used to clean medical instruments, surgical equipment, dental instruments, and implants to ensure proper sterilization and hygiene.
- Jewelry and Watches: Ideal for cleaning jewelry, watches, and gemstones, removing dirt, oil, and tarnish without causing damage.
- Electronics: Used for cleaning electronic components, circuit boards, and precision parts without causing damage or leaving residues.
- Optics: Suitable for cleaning lenses, optical components, and delicate optical instruments like telescopes and microscopes.
- Automotive: Effective for cleaning automotive parts, carburetors, fuel injectors, and engine components.
Overall, ultrasonic cleaners offer a fast, efficient, and gentle cleaning method for a wide range of objects and surfaces, making them indispensable tools in various industries and applications.
