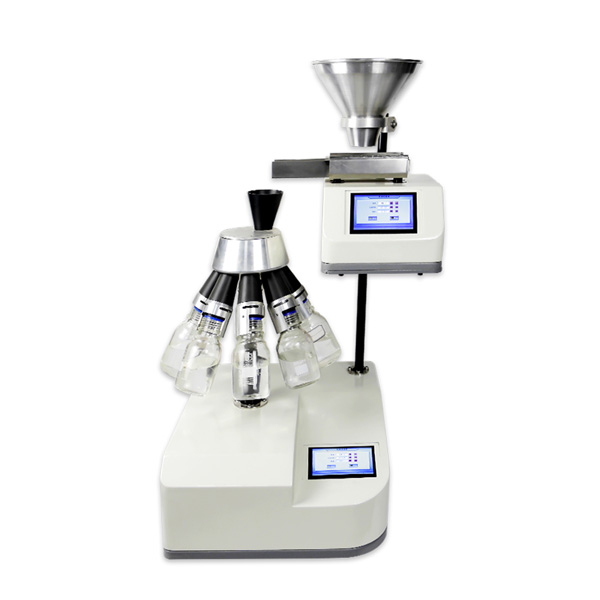

Rotary Sample Divider
Introduction:
The Sample Divider is an instrument designed to evenly divide a bulk sample into several smaller, representative portions. Each portion maintains the same physical and chemical properties as the entire sample, accurately reflecting its characteristics. The sample is directed into receiving containers through an eccentrically set sampling funnel. The rotary sample divider is currently one of the most precise sample dividing instruments available.
Applications:
The Sample Divider is used in various fields such as agriculture, chemistry, synthetic materials, pharmaceuticals, geology, metallurgy, engineering, electronics, building materials, environment, resource recycling, glass, ceramics, biology, and food. It is ideal for sample division and sample reduction tasks.
Features and Benefits of Sample Divider:
- High Precision Sampling: Ensures accurate and consistent sample division.
- Adjustable Time: Digital timer for precise control.
- Speed Monitoring: Maintains stable rotational speed for reliable results.
- Quick Fastening System: Allows for convenient and rapid operation through the fast securing of sample bottles.
- LCD Touchscreen: Simple and convenient operation with a user-friendly interface.
- Compact and Easy to Clean: Designed for convenience and minimal maintenance.
Technial Specifications:
Model | MT-F200 | Number of Sub-Samples | 6 / 8 / 10 |
Feed size | <12mm | Storage Programs | 10 storage programs |
Batch
Processing Volume |
5000ml | Speed | 20~150r/min (LCD display) |
Time Setting | 1s~99min59s (LCD display) | Power | 50w |
Sample Bottle Capacity | 25ml、30ml、50ml、100ml、250ml、500ml | Dimensions | L400* W450* H825(mm) |
Sample Flow Rate | 0-6L/min | Weight | 40kg |
