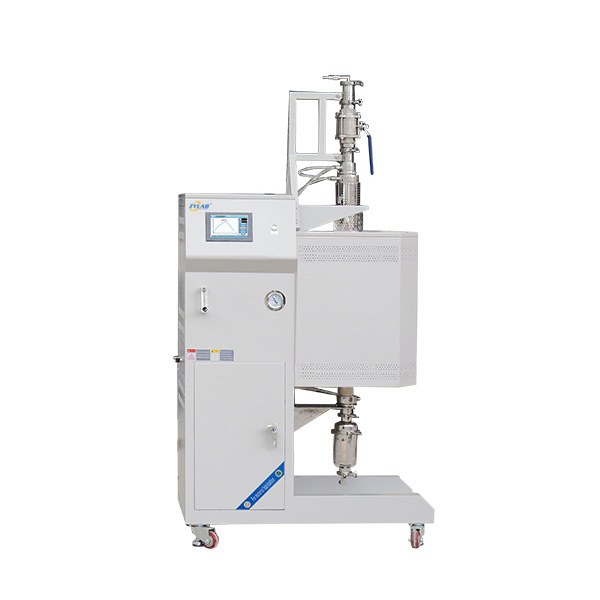

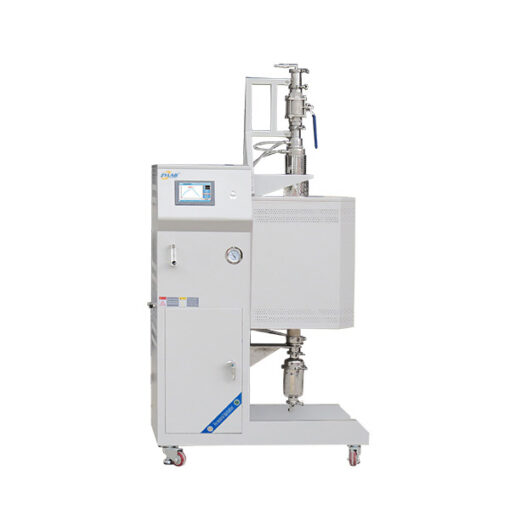

High-Temperature Vertical Rapid Pyrolysis Furnace
Introduction:
The high-temperature vertical rapid pyrolysis furnace is manufactured using internationally advanced technology and designed with aesthetics and user safety in mind. It features an intelligent touch screen control interface for easy and barrier-free operation.
The control mathematical model uses advanced PID self-learning fuzzy control, maintaining temperature control accuracy within ±1°C. After extensive long-term testing with various samples, it has been verified to be suitable for the calcination of almost all types of materials. The standardization of the production process ensures the consistency of your sample product quality, making it an excellent assistant for both experimentation and production.
Features and Benefits:
- Equipped with separate feed and discharge bins, the feed bin can independently replace gas, allowing for continuous feeding. The discharge collection bin can be fitted with different mesh filters based on the material size, currently equipped with a 100-mesh filter. The filter is designed with a detachable structure, greatly facilitating user cleaning and replacement.
- The equipment top is equipped with a high-temperature-resistant hard-seal ball valve, allowing material feeding at high temperatures. After a brief sintering process in the high-temperature zone, the material is collected in the lower collection bin.
- This equipment is suitable for ash treatment of powders, coal combustion, and modification of magnetic materials. Its compact size and small footprint make it particularly suitable for laboratory use.
Technical Parameters of Rapid Pyrolysis Furnace:
Model | LT1700-60TI |
Maximum Temperature | 1700℃ |
Rated Temperature | 1650℃ |
Rated Power | 10KW |
Temperature Control Accuracy | ±1℃ |
Sensor Type | Type B thermocouple, Φ8*150mm |
Heating Element | High-purity silicon molybdenum rods(MoSi2) |
Heating Rate | 1℃/H-20℃/Min |
Temperature Zone Size | Φ220*310mm |
Furnace Tube Size | Corundum tube Φ60*1000mm |
Feed Bin Capacity | 80ml |
Discharge Collection Bin Capacity | 1.5L (100 mesh filter) |
Furnace Body External Dimensions | L1080×H2000×D600mm |
Weight | Approximately 220KG |

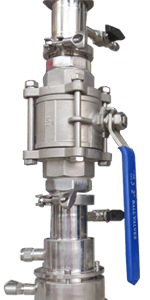

Equipment Detail 1 | High-temperature hard-seal ball valve allows material feeding at high temperatures. |

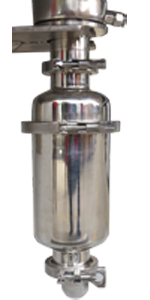

Equipment Detail 2 | Brief sintering process in the high-temperature zone followed by material collection in the collection bin. |
Control System | 1.Can store up to 15 temperature curves, avoiding the hassle of repeated settings for different experimental processes.
2.7″ touch screen, more intuitive experimental process and easier operation. 3. Embedded operating system with bilingual (Chinese/English) graphical interface, 7-inch true color touch screen input, intelligent human-machine dialogue mode, and non-linear sample temperature correction. 4. Features include over-temperature alarm, thermocouple breakage prompt, and leakage protection. |
Sealing System | Stainless steel vacuum sealing |
Vacuum Degree | 10Pa (mechanical pump) |
Pressure Measurement and Monitoring | Uses a mechanical pressure gauge with a hermetically sealed structure to effectively protect internal components from environmental influences and debris, and has strong corrosion and high-temperature resistance. |
Gas Supply System | One rotameter gas inlet to the feed bin, another one gas inlet reserved.
Uses a rotameter(20-200ml/min, other range can be customerized) to control gas flow rate, integrated with the equipment. |
Service Support | One-year limited warranty, with lifetime support (warranty does not cover consumable parts such as processing tube and O-rings, please order replacements under related products below). |
Applications:
This furnace is suitable for experiments involving powder ashing, coal combustion, and magnetic material modification.
