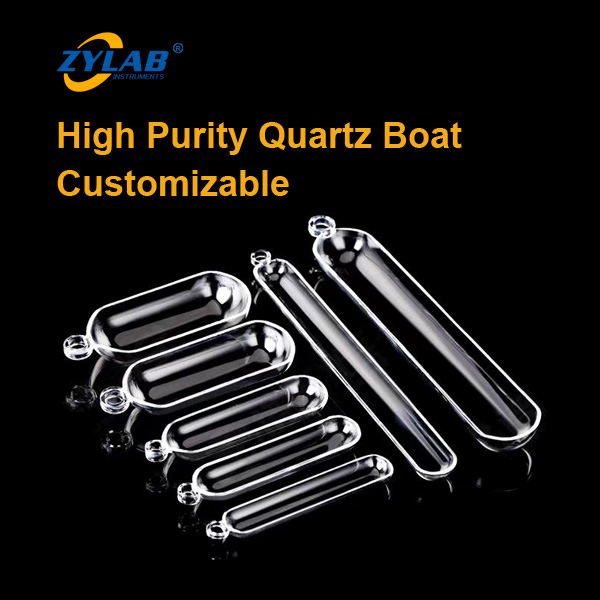

ZYLAB High Purity Quartz Boat
Product Details:
ZYLAB High Purity Quartz Boats are specifically designed for use in tube furnaces, providing exceptional performance in high-temperature environments.
Available in both single-ear and double-ear designs, these quartz boats are ideal for laboratory applications such as crystal growth, ceramic sintering, and metallic material handling in controlled atmospheres.
Made from high-purity quartz, these boats are engineered to withstand prolonged temperatures up to 1100°C and are resistant to most acids and alkalis, ensuring reliable performance in challenging processes.
Material: High Purity Quartz
Shape: Single Ear and Double Ear Designs
Max Temperature Resistance: Up to 1450°C
Chemical Stability: Resistant to most acids, alkalis, and molten metals
Thermal Shock Resistance: Withstands rapid temperature changes
Customization: Available in custom sizes and configurations upon request
For more information, custom orders, or technical support, please contact us.
Applications
- Crystal growth in semiconductor and material research
- Ceramic sintering and other high-temperature material processing
- Handling of metallic and non-metallic materials in tube furnaces
- Laboratory experiments requiring precise material manipulation under extreme heat
- Vacuum and controlled atmosphere furnaces
Why Choose ZYLAB High Purity Quartz Boat?
- High Purity Quartz ensures minimal contamination in sensitive experiments
- Durability and Reliability for high-temperature and high-pressure environments
- Single and Double Ear Designs offer versatility for various applications
- Customized Solutions tailored to specific laboratory and industrial needs
- Technical Support for assistance with custom designs and applications

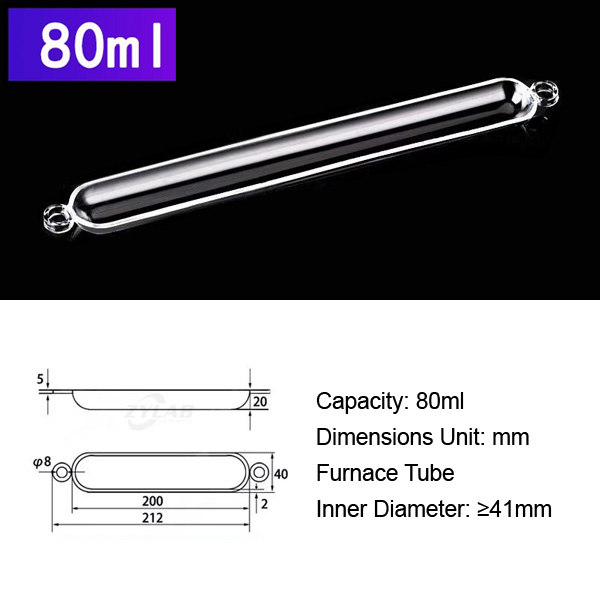

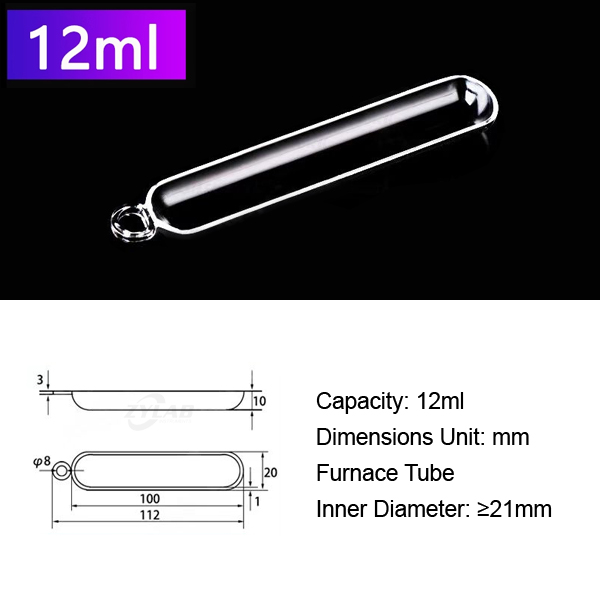

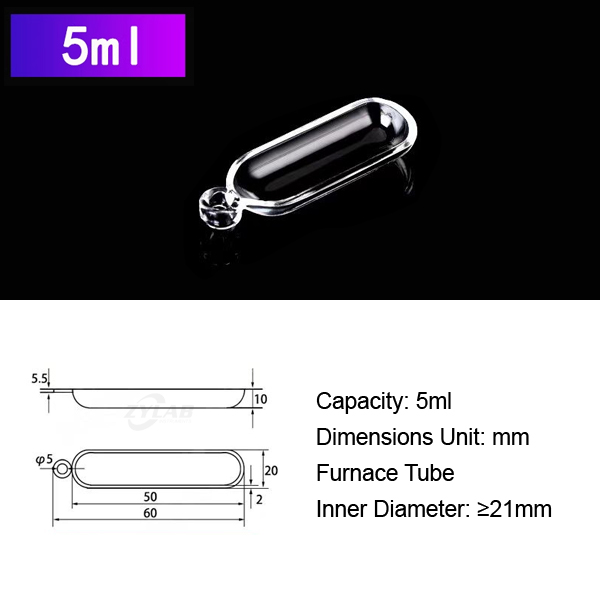

Quartz Boat Specifications
| ZYLAB Quartz Boat Specifications (UoM：mm) | |||
| 30 × 10 × 5 | 50 × 10 × 5 | 50 × 15 × 7.5 | 50 × 20 × 10 |
| 50 × 25 × 12 | 50 × 30 × 15 | 100 × 10 × 5 | 100 × 15 × 7 |
| 100 × 20 × 10 | 100 × 25 × 12 | 100 × 30 × 15 | 100 × 40 × 20 |
| 100 × 45 × 22 | 100 × 50 × 25 | 150 × 70 × 35 | 200 × 25 × 12 |
| 200 × 40 × 20 | 80 × 18 × 9 | ||
Custom dimensions and shapes are available upon request.
