Introduction

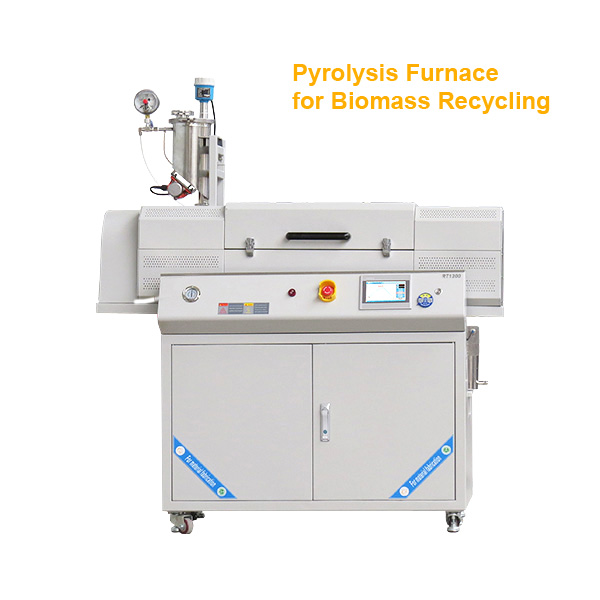

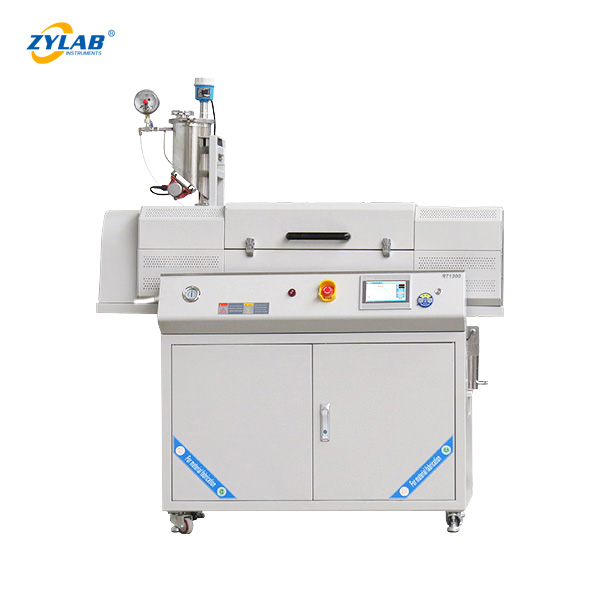

Lab continuous Pyrolysis Furnace for Biomass Recycling Applications(automatic feeding and discharging vacuum atmosphere sintering furnace) with a maximum temperature of 1200°C and a stainless steel furnace tube. It is equipped with two types of stainless steel augers, with pitches of 40mm and 60mm, enabling different feed rates and effectively enhancing the uniformity of material heating temperature and reaction.

Applications

This Lab Continuous Pyrolysis Furnace for Biomass Recycling Applications is primarily used for the thermal treatment of biomass/ organic solid waste and continuous sintering experiments under vacuum or atmospheric conditions.

Highlight

1.A stainless steel vacuum feeding tank with a capacity of 4 liters is installed, and on the right side of the equipment, there is a stainless steel water-cooled discharge tank with a volume of 4 liters.
2.The feeding tank is equipped with a vibration motor to control the stability and uniformity of the feed.
3.On the left side, the auger inside the furnace tube is rotated by a chain wheel to achieve stable material in and out, with an adjustable rotation speed.
4.The equipment has three temperature control units, and the temperature zone length is 600 millimeters.
5.Through a quick installation design, the furnace tube and auger maintenance and replacement are very convenient.

Features and Benefits

1.The furnace tube is made of heat-resistant 310S stainless steel.
2.Utilizes PLC centralized control, simplifying operation, and features a 7-inch touchscreen for real-time display of various data, making it intuitive and clear.
3.Equipped with an alarm function, enabling unattended sintering.
4.Configured with a material level monitor for monitoring material conditions, and additionally equipped with a vibrator for better material introduction.
5.High-purity Al2O3 fiber refractory insulation material with superior insulation effect, effectively reducing equipment power consumption.
6.Adopts an advanced and stable dynamic sealing system, ensuring the equipment can be used under vacuum or atmospheric conditions.
7.The furnace body can be tilted from -14° (discharge) to -2° (feed), facilitating material handling operations.

Technical Parameters

Model	RT1200-80
Power supply	AC380V/7.5KW
Max.temp	1200℃（<1 hour）
Working temp	1000℃（continuing）
Heating rate	≤20 ℃/min
Heating size	φ150×600mm
Dimension	L1650×D760×H1720mm
Stainless Steel Auger
Intelligent control system				1.Sintering Process Curve Settings: Dynamic display allows the pre-storage of multiple sintering process curves, with each curve freely customizable. 2.Scheduled sintering enables unattended sintering according to predetermined process curves. 3.Real-time display of sintering power, voltage, and other information, recording sintering data, and enabling paperless documentation export. 4.Remote control capability for real-time observation of equipment status. 5.Temperature Calibration: Non-linear correction throughout the sintering process based on the temperature difference between the main control temperature and sample temperature.
Temp accuracy	+/- 1 ℃
Heating element				Fe-Cr-Al alloy doped with Mo
Gasification Outlet				Outlet designed with expansion to prevent blockages
Equipment Details
	Vacuum Level: ≤7Pa (mechanical pump)
Electric Contact Pressure Gauge			Clamp end surface bears force, membrane exposed to directly sense pressure, preventing scaling, unhygienic conditions, and viscous pressure blockage issues.
Weight	≈300KG
Usage Precautions	1.Do not open the furnace when the furnace chamber temperature is ≥300℃ to avoid injury. 2.During equipment use, ensure that the absolute pressure gauge reading does not exceed 0.15MPa to prevent damage due to excessive pressure. 3.When operating under vacuum, the equipment’s operating temperature should not exceed 600℃.
Service Support	1-year warranty with lifelong support (consumable parts such as furnace tubes and sealing rings are not covered within the warranty scope).
