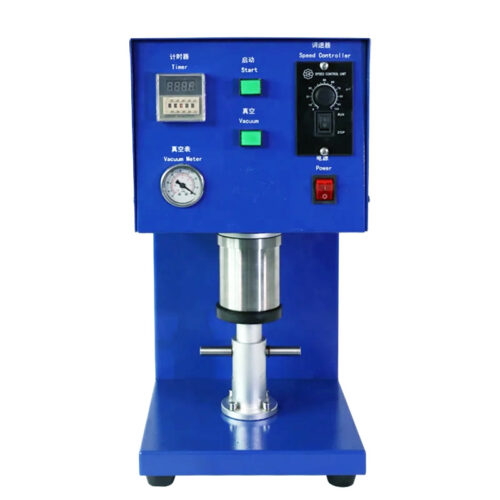

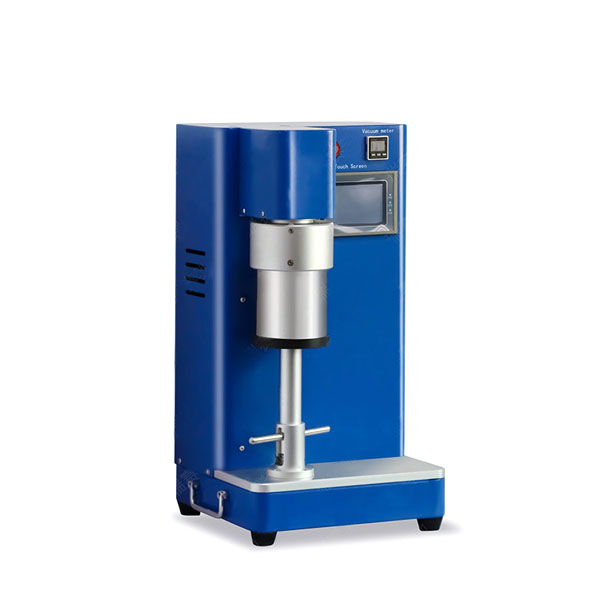

Dual-Shaft Planetary Vacuum Mixer

Dual-Shaft Planetary Vacuum Mixer w/ Optional Containers (500-1000ml)

Introduction:

This planetary vacuum mixer is an efficient equipment that integrates vacuum mixing and dispersion. It is suitable for the mixing process of positive and negative electrode slurry in battery experiments, as well as the mixing of powdery materials and various ceramics. Since the mixing is done in a vacuum, it completely eliminates bubbles, thereby improving the material’s fillability and the model’s density.

Key Features and Benefits:

1.Vacuum environment to effectively eliminate bubbles generated during the mixing process; the machine comes with a built-in vacuum system.
2.Multi-speed operation with the ability to set stirring speed and time for each stage.
3.Design includes forward and reverse mixing function, enabling high-speed mixing of high viscosity slurries with good uniformity.

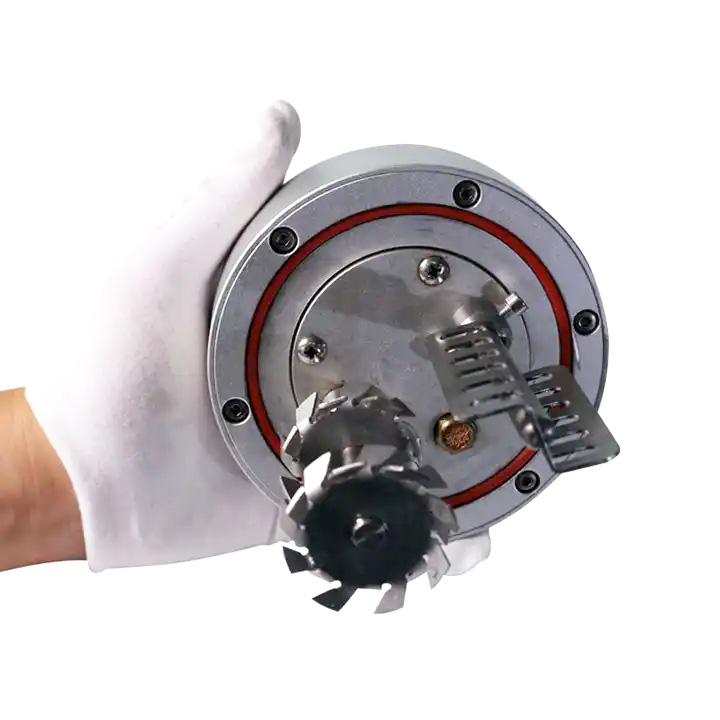

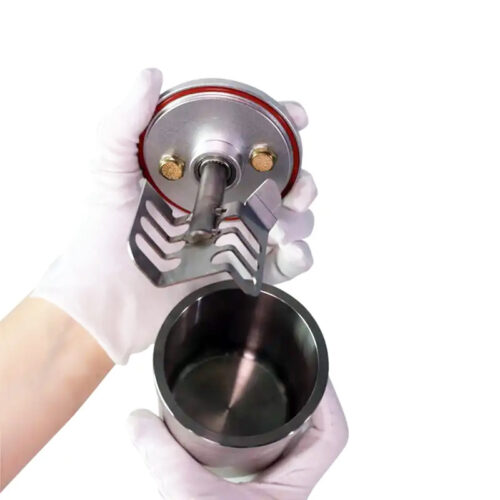

4.Equipped with a dual-axis planetary mixing structure, screw-type mixing blades, and different mixing shaft forms and combinations based on the size of the mixing tank.
5.Designed with a stand for easy operation, ensuring safety during the vacuum mixing process.
6.Exquisite appearance with a three-dimensional geometric design, simple and elegant.

Key Parameters:

• Stirring Speed: MAX 1200 rpm
• Standard configuration with dual-axis screw-type mixing blades; others based on tank design.
• Multi-stage function: Three-speed settings available.
• Built-in vacuum pump, vacuum degree -0.08 MPa.
• Accessory volume: 1L or 500ml stainless steel vacuum mixing tank; or other specifications.
• Mixing time: 0-600 minutes adjustable.
• Power supply voltage: AC220V.
• Rated power: 200W.
• Overall dimensions: 330mm × 320mm × 570mm (length × width × height).
• Weight: 45kg.

Applications:

This planetary vacuum mixer is an efficient equipment that integrates vacuum mixing and dispersion. It is suitable for the mixing process of positive and negative electrode slurry in battery experiments, as well as the mixing of powdery materials and various ceramics.
