Pit Type Molten Salt Electroplating Furnace for High-Temperature Metal Coating

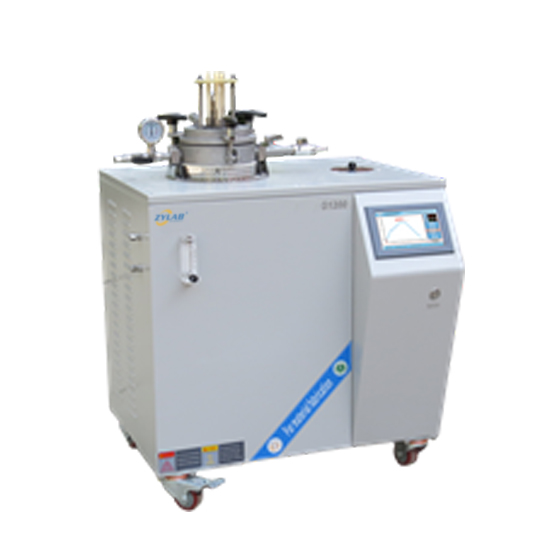

ZYLAB Pit Type Molten Salt Electroplating Furnace

Introduction

The ZYLAB Pit-Type Molten Salt Electroplating Furnace is specifically designed for molten salt electrochemical applications that require precise temperature control and uniform heating. This furnace enables high-temperature molten salt electroplating processes, which involve both the deposition of metal layers and solid-state diffusion between the deposited metal and the substrate. The formation of a diffusion bonding layer ensures a much stronger and more durable adhesion of the coating.

Maintaining accurate temperature control in molten salt baths is critical for the success of anodizing and electroplating processes. The furnace’s advanced temperature regulation system ensures stable and consistent salt bath conditions, directly impacting the quality and reliability of the electroplated layer.

This equipment is widely used in the molten salt electrochemical field, particularly in laboratory research, pilot-scale experiments, and specialized industrial applications.

Key Features

1. Non-contact SCR Control Module
   Enhances system stability and control precision.

2. Ring-Distributed Alloy Heating Elements
   Ensures uniform temperature distribution inside the furnace chamber.

3. High-Performance Insulation Materials
   Minimizes heat loss and reduces overall power consumption.

4. Multiple Electrode Connectors
   Convenient for quick and flexible switching.

5. 310S Austenitic Chromium-Nickel Stainless Steel Reactor
   Excellent resistance to oxidation and corrosion, with high creep strength.

6. Water-Cooled Sealing Structure
   Effectively lowers flange temperature, protects sealing rings, and ensures reliable airtightness during sintering processes.

Technical Specifications of Pit Type Molten Salt Electroplating Furnace

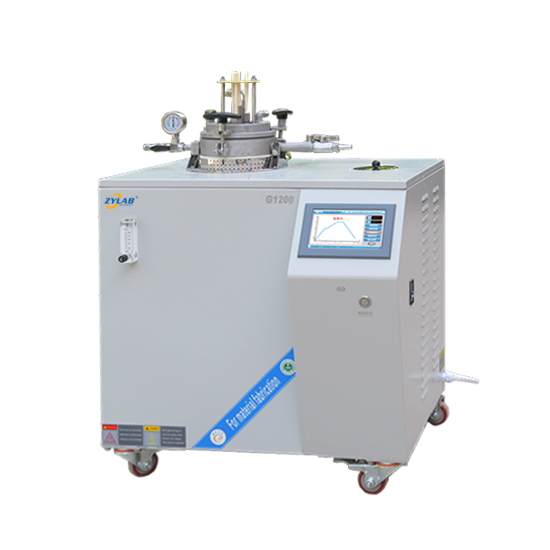

Product Model	G1200
Electrical Power Supply	AC 220V, 2KW
Maximum Temperature	1200°C (for ≤1 hour)
Continuous Working Temperature	1100°C (continuous operation)
Heating Rate	≤ 20°C / minute
Chamber Dimensions	Ø100mm x 200mm (Diameter x Depth)
Temperature Control System		1. Embedded control system with bilingual (Chinese-English) graphical interface 2. 7-inch full-color touchscreen with intuitive human-machine interaction 3. Non-linear temperature correction for enhanced precision 4. Stores up to 15 programmable temperature profiles for different process requirements 5. Safety features include over-temperature alarm, thermocouple break warning, and leakage protection
Temperature Accuracy	±1°C
Heating Elements		Mo-doped Fe-Cr-Al alloy heating wires
Vacuum Reaction Vessel		Austenitic stainless steel reaction tank (310S material), corrosion and oxidation resistant
Net Weight	80KG
Service Support	One-year warranty with lifetime support (warranty excludes consumable parts such as heating elements and thermocouple).

Typical Applications

• Molten salt electroplating of aluminum, titanium, and refractory metals
• High-temperature anodizing and surface modification processes
• Research in molten salt electrochemistry and solid-state diffusion bonding
• Surface treatment for aerospace, automotive, energy, and precision components
• Coating applications requiring superior corrosion resistance and mechanical strength

Why Choose ZYLAB Pit-Type Molten Salt Electroplating Furnace?

• Precision Temperature Control
  Crucial for molten salt electrochemical success, ensuring optimal process conditions.
• Superior Coating Quality
  Promotes diffusion bonding, producing highly adhesive and durable coatings.
• Robust & Reliable Design
  Engineered for demanding molten salt processes with enhanced safety and process stability.
• Customization Available
  Tailor-made solutions for different electroplating requirements in research or industrial production.
• Trusted ZYLAB Support
  Comprehensive service, technical support, and global customer care from ZYLAB.
