Cylindrical Pill Press Mold Kit for Powder Sample Forming and Testing

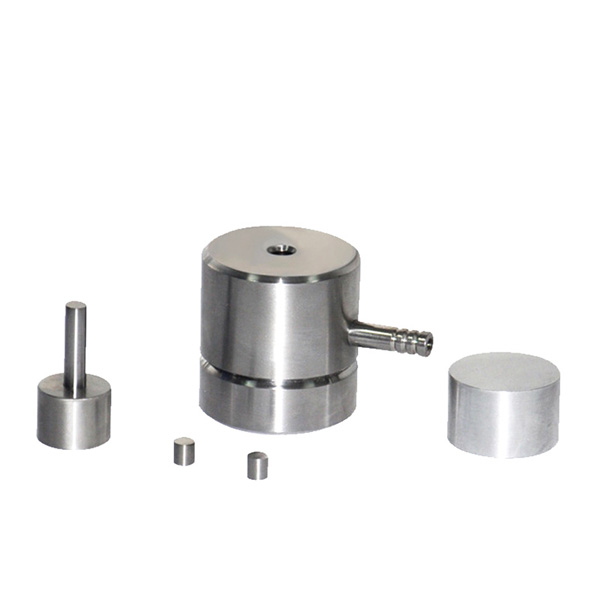

Cylindrical Pill Press Mold Kit

Details

The cylindrical pill press mold kit is a commonly used tool for pressure forming of powder samples in laboratories. It is suitable for shaping and testing various powder samples, including inorganic powders, organic powders, and metal powders.

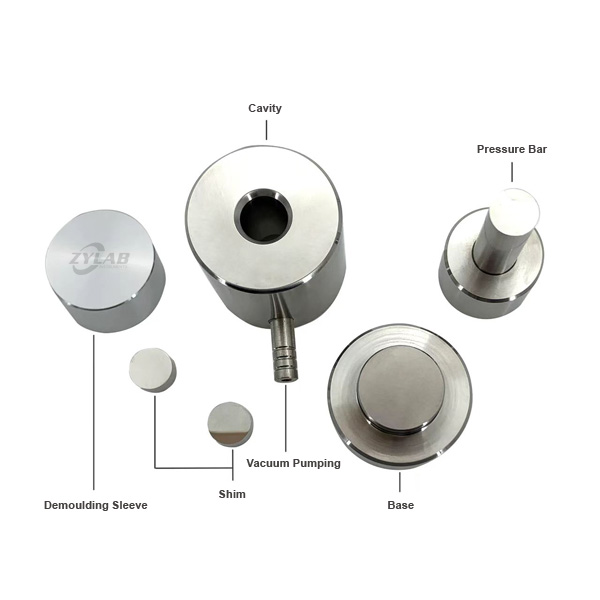

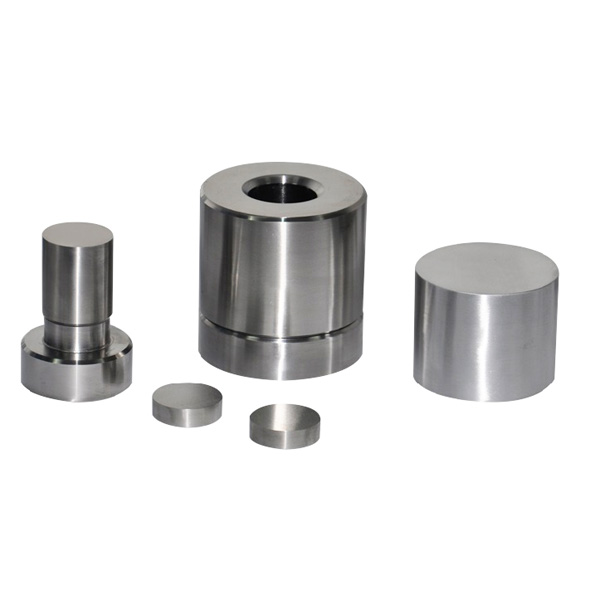

The mold kit consists of a base, a sleeve, a pressing rod, spacers, and a demolding sleeve. Made from high-strength, wear-resistant materials, it is characterized by easy operation, high precision, and broad applicability.

When used with a pill press, it can compress powder materials into circular sheets, cylinders, or other shapes. The size of the pressed samples ranges from φ2mm to φ150mm, and custom sizes can be tailored to meet specific needs.

This mold is widely used in scientific experiments and educational settings, particularly in material science research, catalyst testing, sample preparation, and small-scale industrial production.

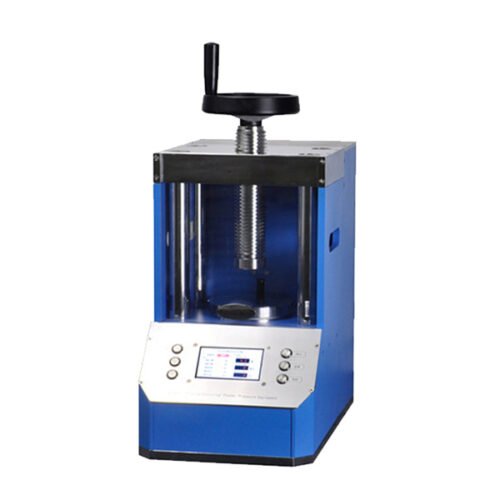

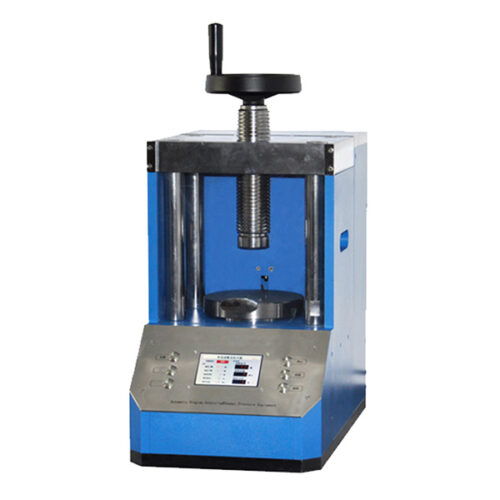

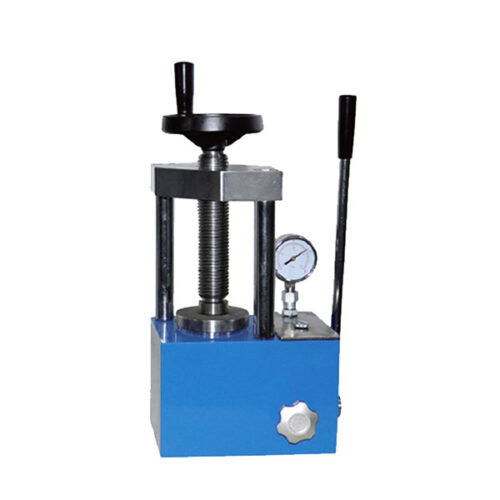

Click here to view the lab pill press.

To grind the required materials into powder with the correct particle size ( from millimeters to micrometers), we recommend using our planetary ball mill and accessories or agate mortar and pestle set.

Applications

Material Science Research:
Used for pressing ceramic powders, metal powders, and polymers into samples to study their physical and chemical properties such as density, hardness, electrical conductivity, and thermal conductivity.

Catalyst Testing:
Molded samples are commonly used for evaluating catalyst performance, such as assessing efficiency and stability in chemical reactions.

Sample Preparation:
Ideal for preparing standardized samples suitable for spectroscopic analysis and quality control, ensuring reliable test results.

Education and Teaching:
Utilized in teaching laboratories at universities and research institutions to demonstrate powder forming processes or test the properties of various materials.

Pharmaceuticals and Chemical Industry:
Applied in the preparation and testing of pharmaceutical powder samples and in the chemical industry for catalyst forming and reaction experiments.

Small-Scale Industrial Production:
Used for producing small batches of high-precision parts or forming materials to meet specific application needs.

Parameter

Specifications

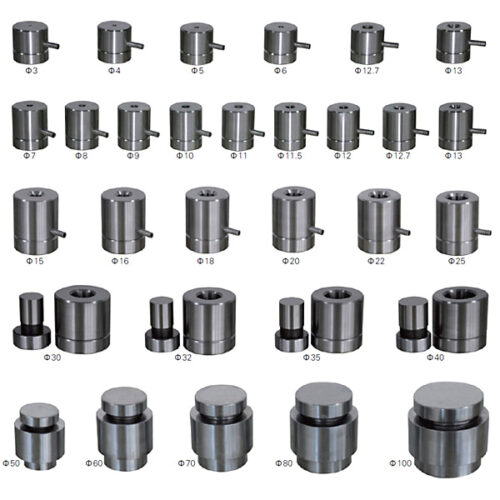

The standard dimensions of ZYLAB cylindrical pill press mold kits include Φ2mm, Φ3mm, Φ4mm, Φ5mm, Φ6mm, Φ7mm, Φ8mm, Φ9mm, Φ10mm, Φ11mm, Φ12mm, Φ13mm, Φ14mm, Φ15mm, Φ16mm, Φ17mm, Φ18mm, Φ19mm, Φ20mm, Φ21mm, Φ22mm, Φ23mm, Φ24mm, Φ25mm, Φ26mm, Φ27mm, Φ28mm, Φ29mm, Φ30mm, Φ31mm, Φ32mm, Φ33mm, Φ34mm, Φ35mm, Φ36mm, Φ37mm, Φ38mm, Φ39mm, Φ40mm, Φ50mm, Φ60mm, Φ70mm, Φ80mm, Φ90mm, Φ100mm, Φ120mm, and Φ150mm.

Custom sizes are available upon request, with delivery times ranging from 3 to 20 days.

If you need more detailed information, please contact us immediately. We offer free quotes on all products!

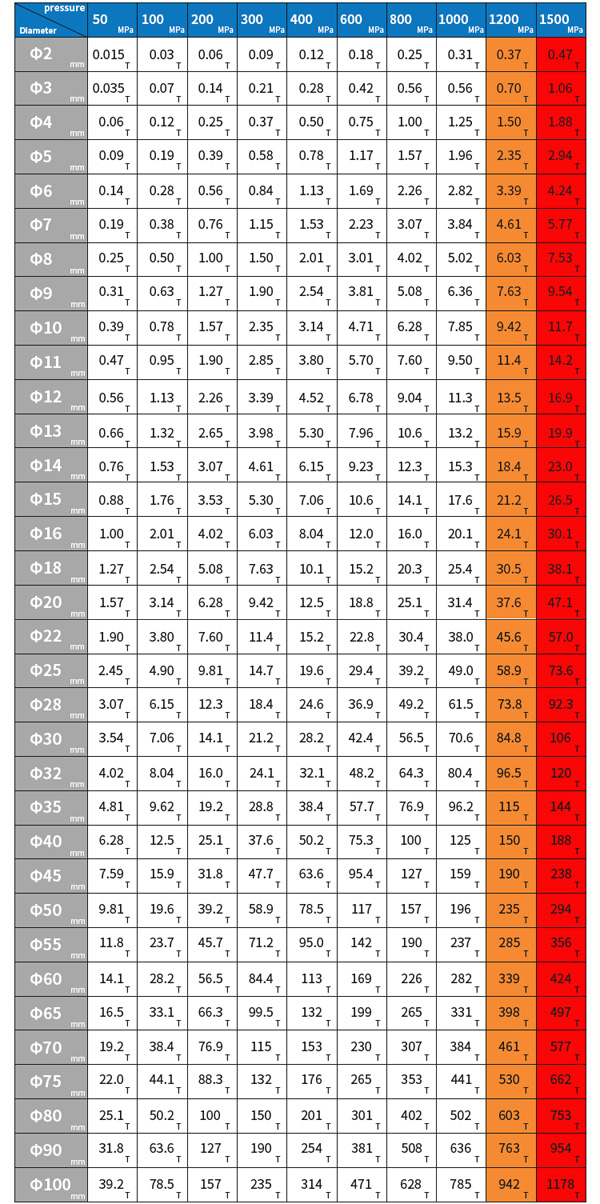

Pressure Matching

Note: Molds are generally used within the pressure range of 100-800 MPa and can reach up to 1500 MPa.

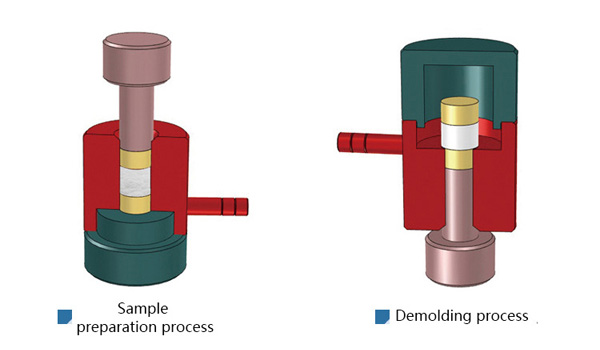

Operational Diagram of Cylindrical Pill Press Mold Kit

Usage and Maintenance

1. Before each use, clean the surface of the mold with lint-free paper to remove any anti-rust oil, as it may affect the accuracy of sample test results.
2. Place the mold at the center of the tablet press, ensuring the applied pressure does not exceed the mold’s maximum pressure capacity.
3. After use, promptly clean any remaining sample from the mold to prevent corrosion.
4. If residual samples on the mold surface cannot be removed, avoid using chemical reagents for cleaning or soaking.
5. For long-term storage, apply anti-rust oil to the mold and store it in a dry environment.

For More Options on Mold

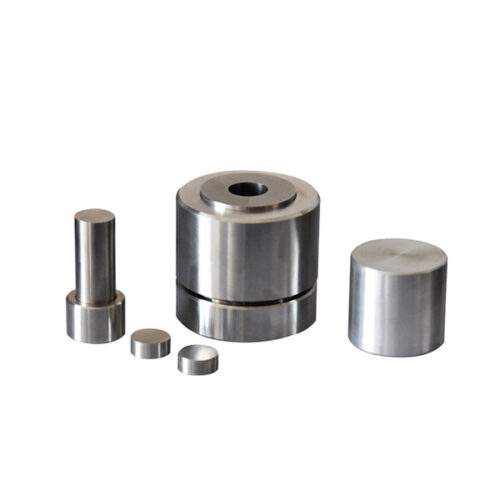

• Cylindrical Split Mold

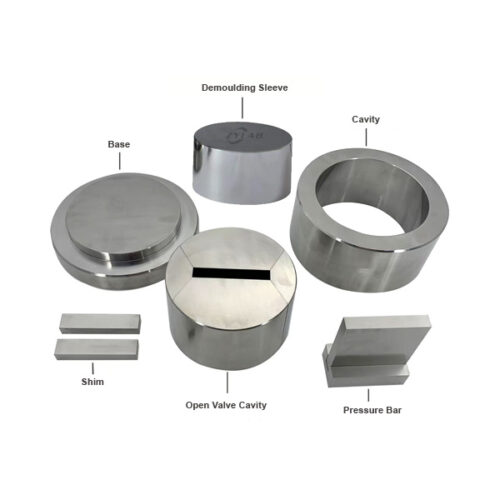

• Square Dry Pellet Pressing Mold

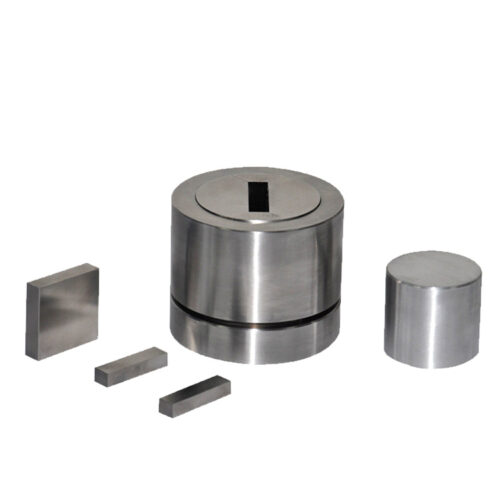

• Square Split Pressing Die Set
