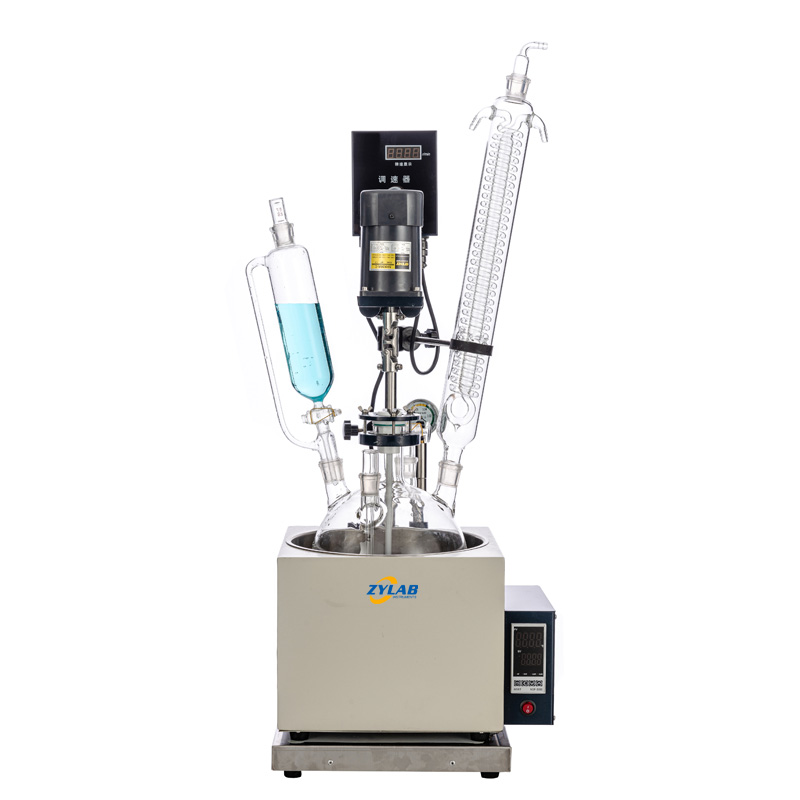

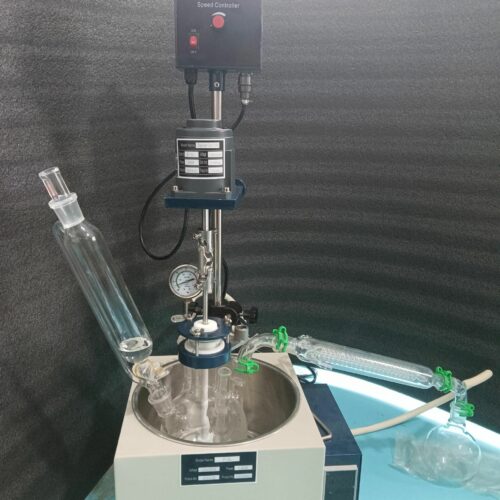

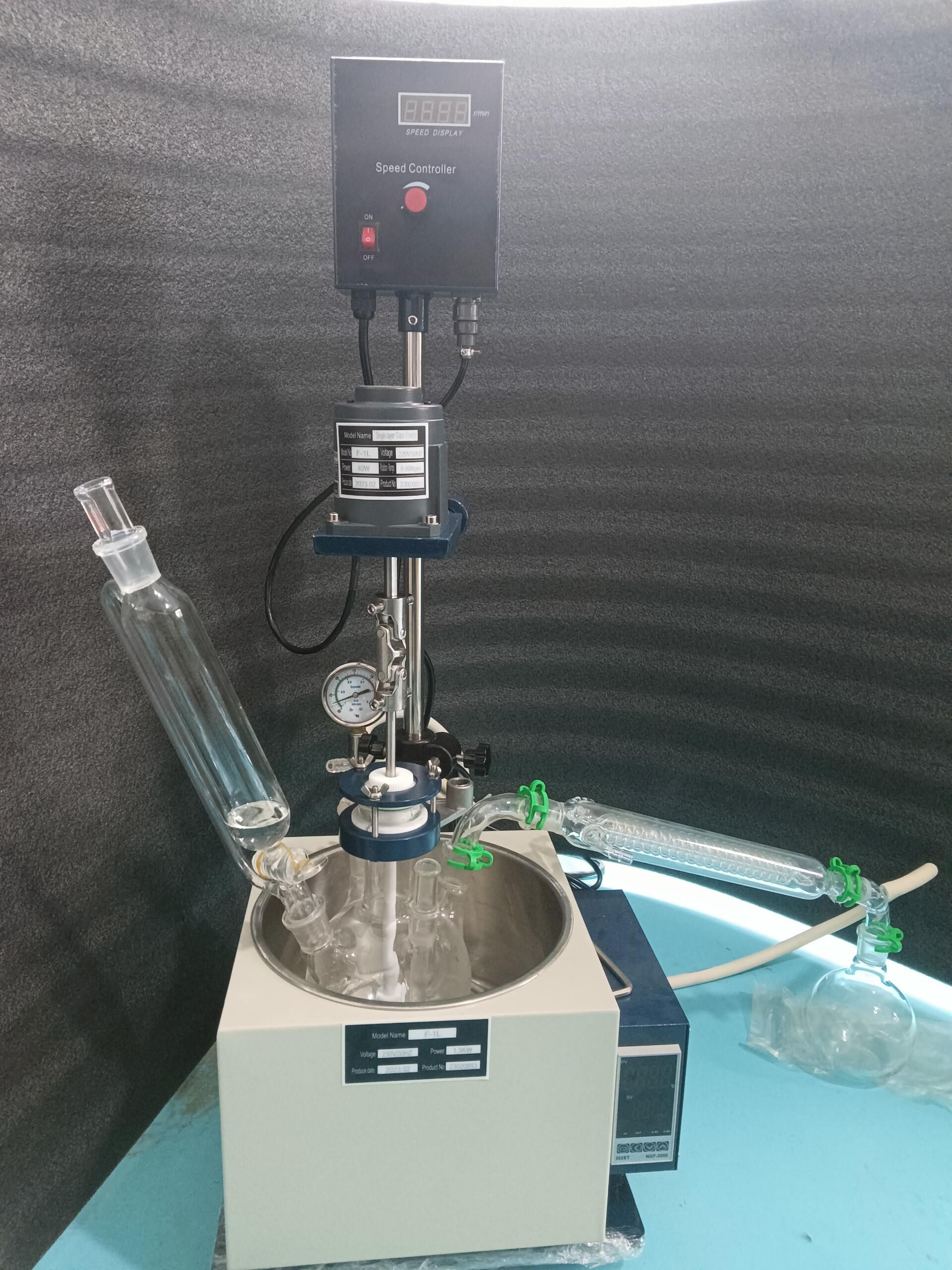

Lab Mini 1L Oil Bath Reactor
Introduction:
This series Oil Bath Rreactors is our new single-layer glass reactor, produced on the basis of practical demands and standards of customers, absorbing advanced experience, technologies and advantages of similar products, and innovating boldly; it is not only convenient (one person can move, operate, wash, install and disassemble), but also novel and practical in structure, and it has elegant appearance, being in the lead in nation. In addition, it has become the ideal instrument in experiments and manufacturing of modern chemistry, fine chemical engineering, bio-pharmaceuticals and new material synthesis.
Oil Bath Reactor operating principle: put reaction materials into single-layer glass reactor, and vacuumize to stirring reaction simultaneously; add water or oil into outside water or oil bath to proceed heating reaction; control evaporation and back-flow of reaction solution, and charging under constant voltage . (optional refrigeration modules matched with refrigeration sources to proceed low-temperature reaction).
Features and Benefits:
1. Oil Bath Reactor body adopts high-borosilicate glass 3.3(GG-17 materials), which has superior physical and chemical performance, and transparent glass is convenient for user to observe reaction materials.
2. The shell of heating kettle is sprayed plastics to prevent corrosion, liner adopts superior stainless steel and is durable in use.
3.Rod and other accessories adopt stainless steel and aluminium alloy, elegant and secure.
4. Stainless stirring rod is coated PTFE, applied in multiple solvents stirring, which has no pollution and corrosive resistance.
5. Speed reducing and power increasing motor is stirring, and it has characteristics of running smoothly, large force moment, no-spark and long life.
6. PTFE modules and mechanical seal ensures favorable vacuum degree and long life.
7. Constant temperature oil(water) bath controls temperature intelligently, and displays oil or water temperature in bath; temperature control is realized by K sensor which is accurate. When water temperature reached pre-setting temperature, controller will cut heating source automatically; when it is lower, controller will connect heating source automatically so that water temperature is constant in tank.
8.The vacuum pressure gauge displays real-time vacuum and the pointer displays.
9.The mixing and heating double fuse has high safety protection performance.
Technical Parameters:
| Model | F-1L | |
| Flask capacity | 1L, spherical | |
| Power supply | 220~240V/50Hz | |
| Mixing motor power | 40W | |
| Heating power | 1.5KW | |
| Stirring speed | 0-800rpm/min | |
| Temp of flask range | -80~ + 250.C | |
| Temp range of bath | Rt-180.C | |
| Temp accuracy | +/-1.C | |
| Achievable vacuum | 0.098Mpa | |
| Flask
Ф131mm, 5 necks |
Mixing | Ф50mm Flange port |
| Condenser | 24# standard port | |
| Funnel | 24# standard port | |
| Pressure relief | 19# standard port | |
| Temperature measuring | 19# standard port | |
| Agitator paddle | Ф10*350H(mm), paddle 80mm | |
| Condenser | Ф40*350H(mm), the upper 24#standard port，the lower 24#standard plug | |
| Constant pressure funnel | 250ml, the upper 24 # standard port is equipped with a glass plug, and the lower 24 # standard plug | |
| Pressure-relief system | 19 # plug valve, vent nozzle (pagoda joint) OD 10mm | |
| Temperature measuring | 19 # plug glass temperature measuring tube | |
| Receiving system | 2 adapters, 24 # standard port, 500 spherical collecting bottle | |
| Vacuum nozzle | 24 # glass air extraction head, nozzle (pagoda joint), OD 10mm | |
| Condensate coil inlet and outlet circulation nozzle | Pagoda joint, OD 10mm | |
| Bath size(mm) | Ф245*140H | |
| Dimension of overall (mm)W*D*H | (400-700)*330*900 | |
| Net weight (kgs) | 18 | |
| Package (mm) | 1000*460*510, wooden box，0.23m³ | |
| Gross weight (kgs) | 33 | |
Which kinds of industry can use this Oil Bath Reactor?
Applications of Oil Bath Reactor:
Mainly for chemical synthesis, drying, stirring, dissolving, mixing, etc.
