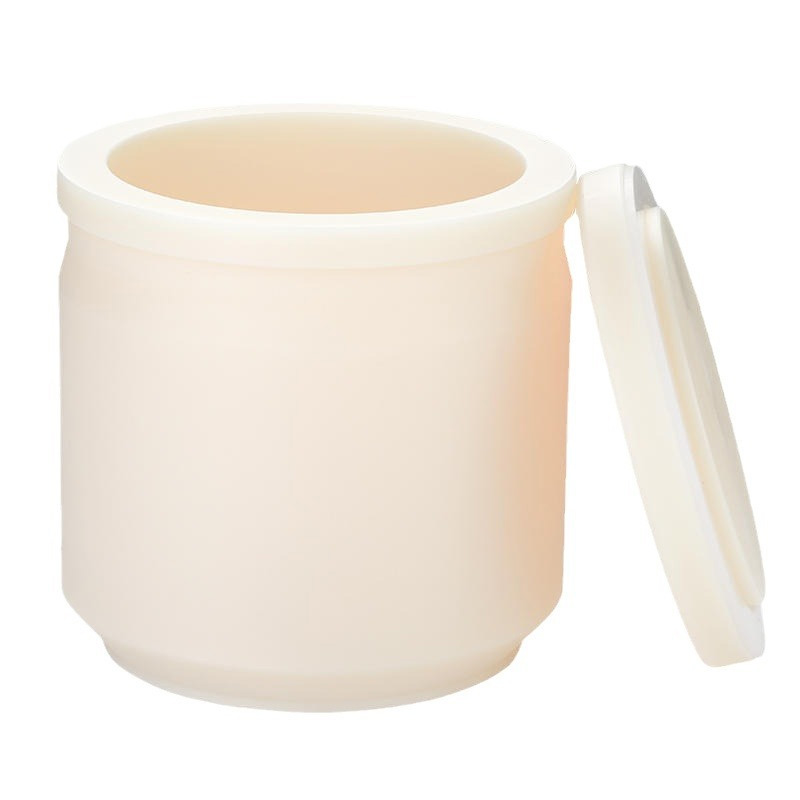

Planetary Ball Mill Accessories Nylon Ball Mill Jar
Introduction:
A Nylon Ball Mill Jar is a specialized container with lightweight and cost-effective features, designed for the grinding and milling of various materials. It is commonly used in laboratories and industries for its unique properties and advantages.
Key Features and Benefits of Nylon Ball Mill Jar:
- Material: Made from high-quality nylon, these jars offer excellent resistance to wear and abrasion, making them ideal for long-term use. Nylon is also chemically resistant to a wide range of substances, ensuring that the jar remains unaffected by most chemical reactions during the milling process.
- Durability: Nylon is a tough and resilient material, providing durability and reliability. This ensures the jar can withstand the rigors of constant use in various milling applications.
- Lightweight: Compared to other materials such as metal or ceramic, nylon jars are significantly lighter. This makes them easier to handle, reducing the effort required for setup and operation.
- Noise Reduction: Nylon jars are known for their ability to reduce noise during the milling process. This makes them a preferred choice in environments where noise levels need to be minimized.
- Versatility: Suitable for a wide range of applications, nylon ball mill jars can be used for grinding and mixing materials like minerals, ores, chemicals, and powders. They are ideal for both wet and dry milling processes.
- Cost-Effective: Nylon jars are generally more affordable compared to other high-end materials like agate or zirconia. This makes them a cost-effective option for many laboratories and industries.
Applications of Nylon Ball Mill Jar:
- Laboratories: Commonly used in scientific research for grinding and mixing samples.
- Pharmaceuticals: Used for preparing and mixing powders and chemicals.
- Ceramics: Ideal for grinding ceramic materials and creating fine powders.
- Mining and Metallurgy: Employed in the grinding of ores and minerals.
Main Application Industries: Ceramic Materials, Lithium Battery Materials, Magnetic Materials.
Specifications of Ball Mill Jar :
Model | 50ml | 100ml | 250ml | 500ml | 1L | 2L | 3L | 5L | 10L | 15L | 20L |
Stainless Steel Ball Mill Jar | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ |
PTFE Ball Mill Jar | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ||
Agate Ball Mill Jar | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ||||
Zirconia Ball Mill Jar | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | |||
Tungsten-carbide Ball Mill Jar | ☆ | ☆ | ☆ | ☆ | ☆ | ||||||
Polyurethane Ball Mill Jar | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ||
Silicon Nitride Ball Mill Jar | ☆ | ☆ | ☆ | ☆ | ☆ | ||||||
Nylon Ball Mill Jar | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ |
Alumina Ball Mill Jar | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ |
Note: ☆ indicates standard models; other models require customization.
Matched Planetary Ball Mill:
Model | Spec | With ball mill jar | Remarks | |
Spec(ml) | Quantities | |||
YXQM-0.4L | 0.4L | 50-100ml | 2 or 4 | With 50ml vacuum ball mill jar |
YXQM-1L | 1L | 50-250ml | 2 or 4 | With 50-100ml vacuum ball mill jar |
YXQM-2L | 2L | 50-500ml | 2 or 4 | With 50-250ml vacuum ball mill jar |
YXQM-4L | 4L | 50-1000ml | 2 or 4 | With100-500ml vacuum ball mill jar |
YXQM-8L | 8L | 500-2000ml | 2 or 4 | With250-1000ml vacuum ball mill jar |
YXQM-10L | 10L | 500ml-2.5L | 2 or 4 | With 250-2.5L vacuum ball mill jar |
YXQM-12L | 12L | 1L-3L | 2 or 4 | With 500-3L vacuum ball mill jar |
YXQM-16 | 16L | 1L-4L | 2 or 4 | With 500-4L vacuum ball mill jar |
YXQM-20L | 20L | 1L-5L | 2 or 4 | With 1000-5L vacuum ball mill jar |
YXQM-40L | 40L | 4L-10L | 2 or 4 | With 3L-10L vacuum ball mill jar |
YXQM-60L | 60L | 6L-15L | 2 or 4 | With 5L-15L vacuum ball mill jar |
YXQM-80L | 80L | 6L-20L | 2 or 4 | With 5L-20L vacuum ball mill jar |
YXQM-100L | 100L | 10L-25L | 2 or 4 | With 9L-25L vacuum ball mill jar |
