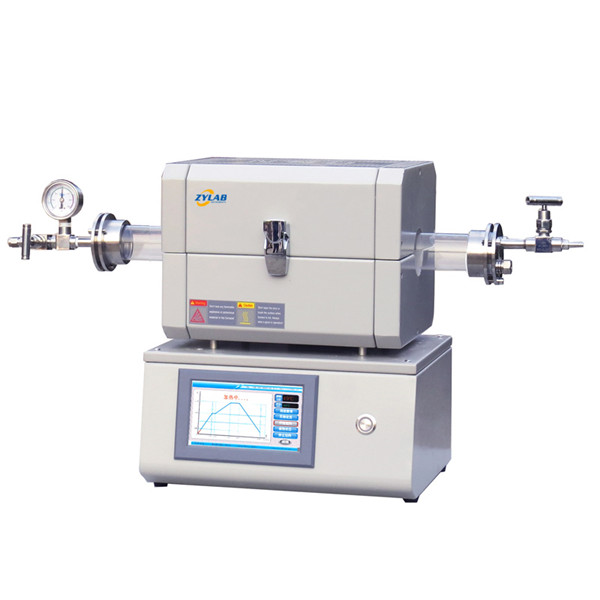

Lab Multi-position Tube Furnace
Introduction:
This Multi-position Tube Furnace have small size, high performance, very popular in labs. Can preset 15pcs temperature controlling curve, satisfy the vacuum sintering of the vast majority of materials, the sintering of the protective atmosphere and all kinds of CVD experiments, etc.
The first-class workmanship using high-quality materials, combined with ease of operation, make the 1200℃ Multi-position Tube Furnace all-rounders in research and the laboratory.
Main Features:
1. High purity quartz tube as furnace tube, Max. Temperature 1200C(<3hour), working temperature Rt –1100C.
2. 30 segments programmable and auto control.
3. 7”Color Touch screen LCD man-machine English interface, more intuitive and convenient operation, the graph of sintering curve with temperature changes makes you clear at a glance.
4. Can presetting 15 sintering curves to avoid the trouble caused by repeated settings of different experimental processes.
5. High purity alumina inorganic refractory, overall vacuum molding chamber, energy saving and ensure uniformity of temperature zone and a fast heating rate.
6.By using special lining import from Japan and high quality resistance wire, protected against chemical contamination at the best and longer service life.
7. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
8.Ring heating, open structure, convenient observation for operator, able to meet rapid sintering of small sample.
9.Unique flange has a multi-function test holes, insert the corresponding electrode to test tube temperature or atmosphere environment.

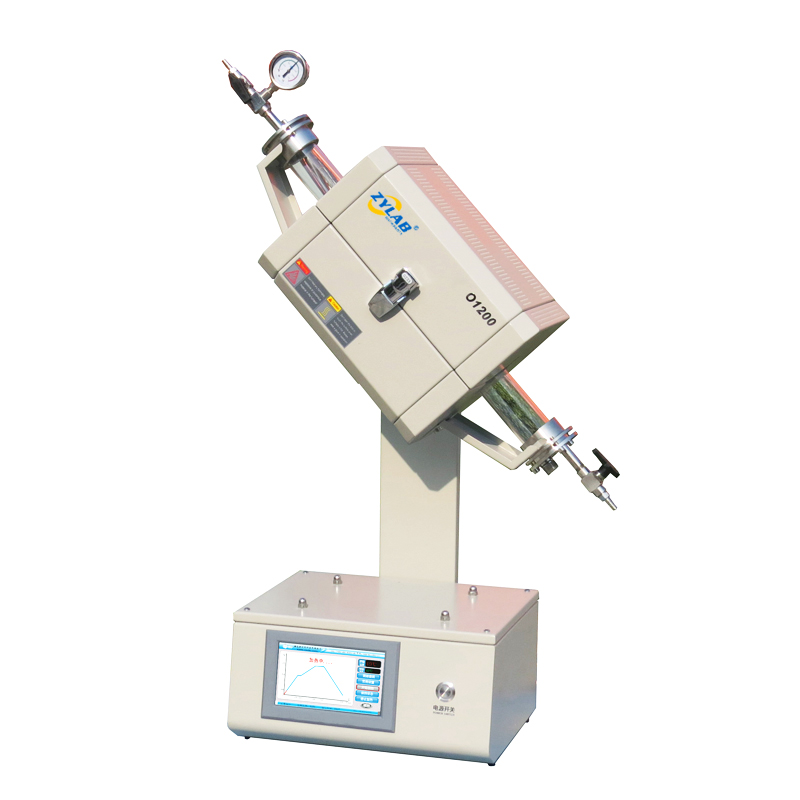

10. The working position can be moved in many directions according to the needs of the experiment , can be tilted to be vertical.
11. Can add modules to contol and download data remotely(optional).
12. Low power consumable, exquisite structure and light weight, it is the ideal furnace for material research labs, also used in factory for small production.
Technical Parameters:
| Model | O1200-50TIY |
| Product Name | 1200.C Multi-position Tube Furnace |
| Chamber Model | Open |
| Chamber Material | Imported high quality alumina fiber refraction insulation |
| Heating Element | High quality resistance wire |
| Max.temperature | 1200.C |
| Working Temperature | RT-1100.C(continuing) |
| Heating Rate | ≤20.C/min |
| Heating Zone | Single |
| Length of Heating Zone | 200mm |
| Constant
Temperature Zone |
120mm |
| Tube Material | High purity quartz |
| Tube Diameter | 50mm(Inner diameter 42mm) |
| Tube Length | 600mm |
| Sealing Mode | Vacuum Flange |
| Control Mode | 7 inch Touch Screen, Intelligent PID Control |
| Operating Interface | English Graphical Interface |
| Temperature Accuracy | +/- 1.C |
| Presetting Curve | 15 Presetting Curve, 30 Segments Programmable |
| Protection Setting | Over Temperature Alarm, Over Current Protection, Broken Thermocouple Protection |
| Thermocouple | K Type |
| Certification | CE, ISO |
| Working Voltage | AC 208-240V 50/60 Hz |
| Power | 1.2KW |
| Dimension | 380(L) * 350(W) * 450(H)mm |
| Net Weight | 23kgs |
| Standard Accessories | Quartz Tube, Vacuum Flange, Tube Block, O-ring, Protective Gloves, Crucible Hook, Manual Book |
Which kinds of industry can use this Multi-position Tube Furnace?
The main industries are rare earth preparation, electronic lighting, crystal annealing, bioceramics, electronic ceramics, special alloys, magnetic materials, precision casting, etc.
Applications:
The lab Multi-position Tube Furnace is a piece of experimental equipment for heat treatment of various materials, which are mainly used in vacuum sintering, atmosphere protection sintering, vacuum coating, CVD experiments, material composition measurement Analysis and other occasions.
