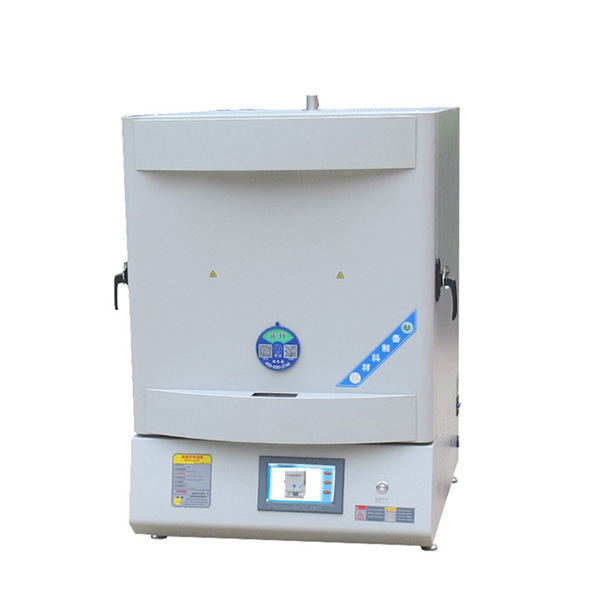

Customized 1500.C Muffle Furnace with Left Sliding Door
Introduction
The 1500.C Muffle Furnace with Left Sliding Door is a laboratory device specifically designed for high-temperature heat treatment, features a left-sliding door, ideal for high-temperature heating applications. It offers efficient thermal processing with easy access and precise temperature control, max.temperature up to 1500.C. It is widely used in material science, metallurgy, chemical engineering, ceramics, and other fields.
Key Features of Muffle Furnace with Left Sliding Door
- Advanced Touch Screen Operation: Simple and easy to use, with intuitive temperature curve display for convenient operation.
- Efficient Heat Dissipation Design: The surface temperature of the furnace remains below 50°C even at high temperatures.
- High-Purity Heating Elements: Made of acid- and corrosion-resistant high-quality SiC heating elements, enhancing the lifespan and stability of the equipment.
- Efficient Insulation Materials: Utilizes advanced refractory ceramic fiber insulation materials, reducing heat loss and effectively lowering energy consumption.
- Modular Structure: Sturdy and durable design, easy to maintain and replace.
- Exhaust Chimney Design: Equipped with an exhaust chimney on the furnace top to effectively remove volatiles generated during sintering.
- Left-Sliding Door: Optimally utilizes laboratory space while minimizing heat radiation exposure to the operator when opening the door.
Technical Parameters
| Model | M1500-L |
| Furnace structure | •1600 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Door Opening Method | Left-Sliding Door |
| Chamber size
(working space) |
W400mm*H350mm*D600mm |
| Max. temperature | 1500.C(<1hours) |
| Working temperature | RT-1450.C(continuing) |
| Heating rate | 1°C/H ~20°C/Min |
| Intelligent Touch Screen
Temperature controller |
1. PID automatic control and auto-tune function.
2. 30 programmable segments for precise control. 3. Built in protection for over-heated and broken thermal couple, and leakage. 4. Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation. 5. Can store 15 sintering programs to avoid the trouble caused by repeated settings of different experimental processes.
|
| Heating element | High-purity sic heating element with excellent acid and corrosion resistance
|
| Sensor | S type Thermocouple |
| Temperature accuracy | +/- 1.C |
| Working voltage | AC 208 – 240V, 50/60 Hz (as requirement) |
| Max. Power | 6kw |
| Service and Support | One-year limited warranty with lifetime support |
| Certificate | CE, ISO9001 |
Which kinds of field can use this Muffle Furnace?
Universities, Chemistry, New Materials, New Energy, Coal Mining, Metallurgy, Electronics, Ceramic etc.
Applications
The 1500°C Muffle Furnace with Left-Sliding Door is ideal for high-temperature heat treatment in a variety of industries, including:
- Material Science: For sintering, annealing, and other thermal treatments of materials.
- Metallurgy: Used in metal processing and heat treatment.
- Chemical Engineering: For reactions, calcination, and other high-temperature processes.
- Ceramics: Suitable for firing and sintering ceramic materials.
- Laboratory Research: Applied in scientific studies and experiments requiring controlled high-temperature environments.
