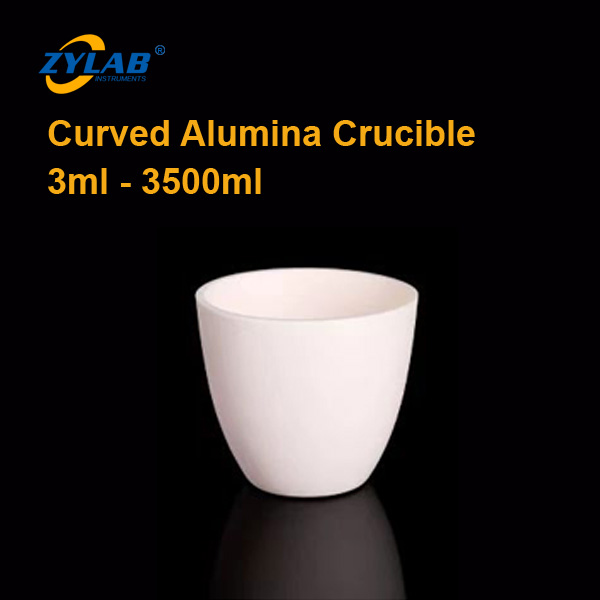

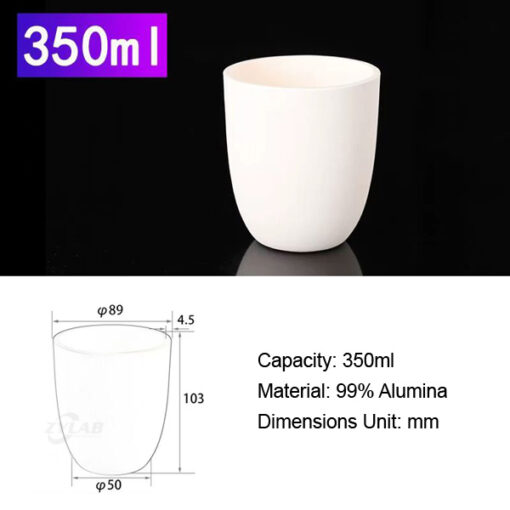

99% Alumina Curved Muffle Furnace Crucible
Product Details:
Muffle Furnace Crucible is a high-performance laboratory tool designed for high-temperature applications.
Made from 99% high-purity alumina, it offers exceptional thermal resistance, chemical stability, and corrosion resistance, making it ideal for use in extreme environments.
The curved design enhances uniform heat distribution and accommodates specific experimental or material processing needs.
Engineered for muffle furnaces and crucible furnaces, this crucible is widely used in ceramic sintering, powder calcination, chemical analysis, and metal melting processes.
Alumina Purity: >99%
Maximum temperature resistance: 1750°C
Continuous operating temperature: ≤1600°C
Click Here to View Muffle Furnace Crucibles with Lids.
The lid can be purchased separately.
We offer customized services according to your requirements!
Standard Specifications for Curved Muffle Furnace Crucible:
| 99% Alumina Curved Muffle Furnace Crucible | ||||||
| 3ml | 4ml | 5ml | 10ml | 15ml | 20ml | 25ml |

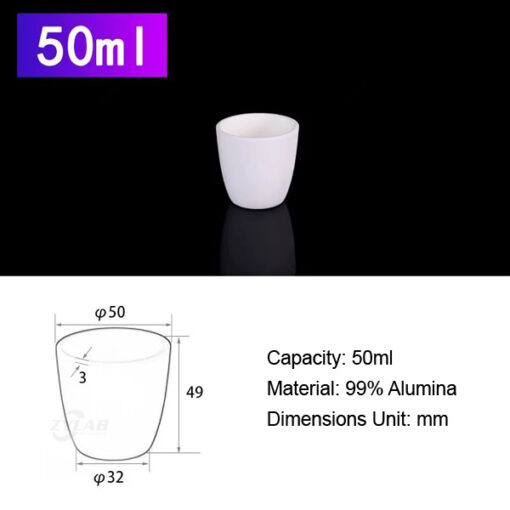

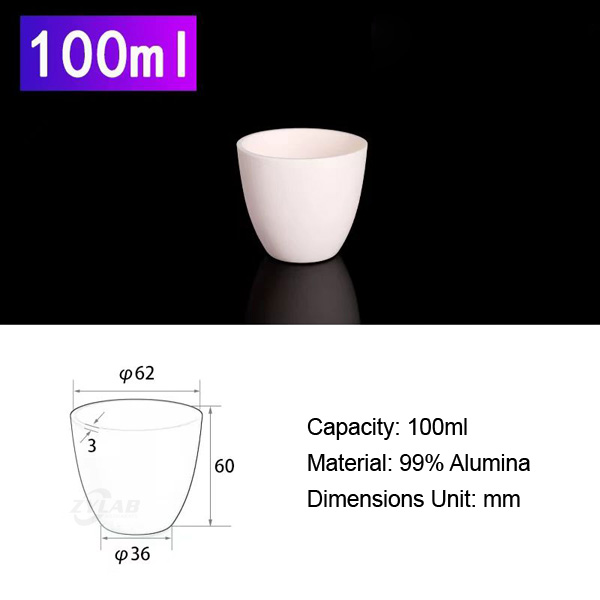

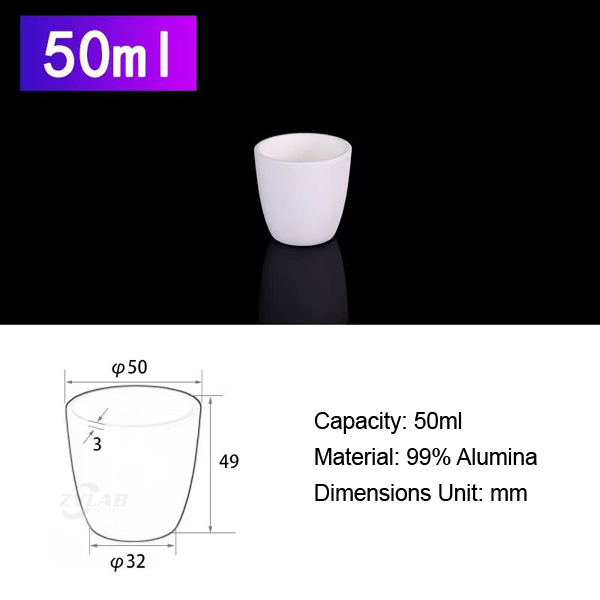

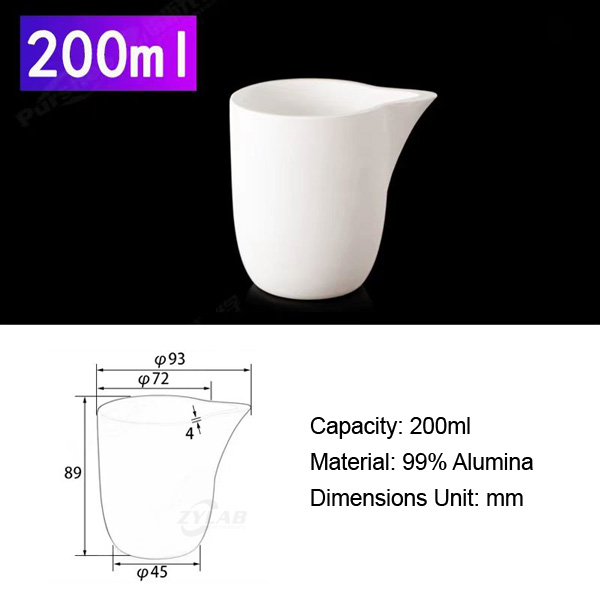

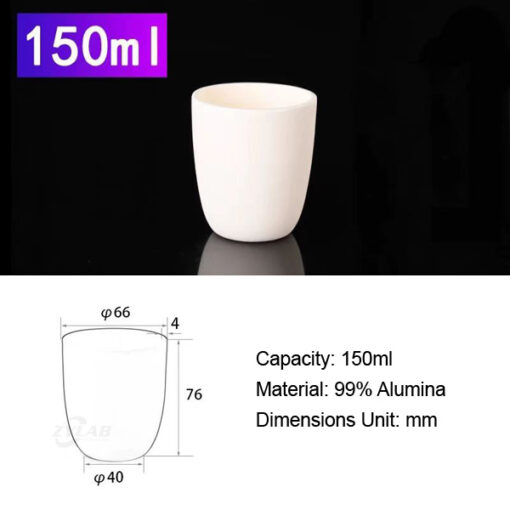

| 30ml | 40ml | 50ml | 100ml | 150ml | 200ml | 300ml |

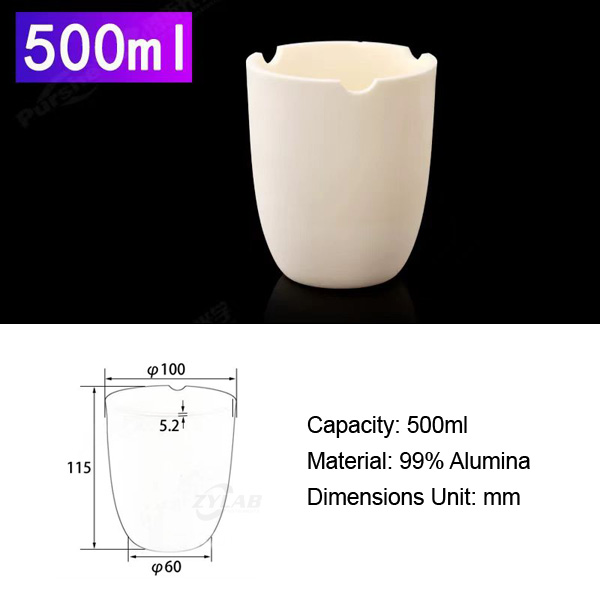

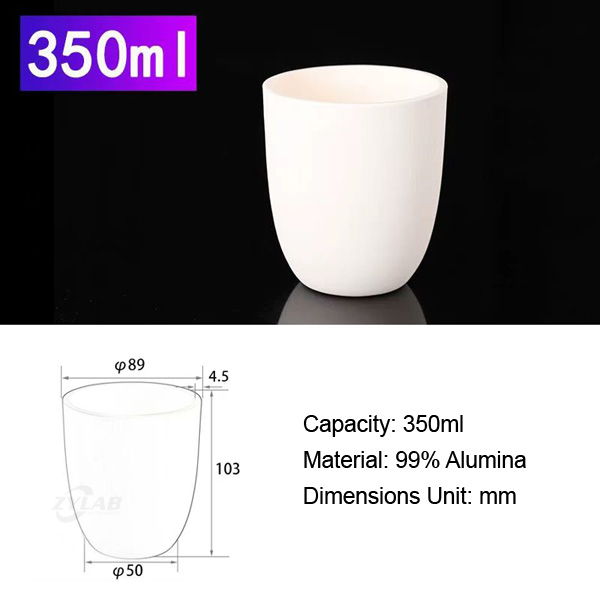

| 200ml | 300ml | 350ml | 460ml | 500ml | 750ml | 1000ml |
| 1300ml | 1500ml | 2300ml | 3500ml | |||
| The crucibles come in both standard and heightened models, with wall thicknesses ranging from 1.5 mm to 10 mm. | ||||||
All crucibles support customization services such as drilling, engraving, and slotting.
If you need more detailed information, please contact us immediately. We offer free quotes on all products!
How to Use Alumina Crucibles？
1. Before the first use, preheat the crucible in an oven at around 105°C for 120 minutes to remove moisture.
2. Do not directly heat the crucible with gasoline blowtorch, acetylene torch, or alcohol burner to avoid uneven heating and cracking of the product.
3. The heating or cooling rate should not be too fast. The temperature change below 1200°C should be <5°C/minute, and above 1200°C should be ≤4°C/minute.
4. The distance between the product and the heating element (such as carbon tube, silicon molybdenum rod, or heating wire, etc.) should be >2cm.
5. The bottom of large crucibles should preferably not directly contact the bottom of the furnace. It is recommended to use alumina foot pads or other heat-resistant materials to lift the crucible, forming air convection to prolong the service life of the product.
