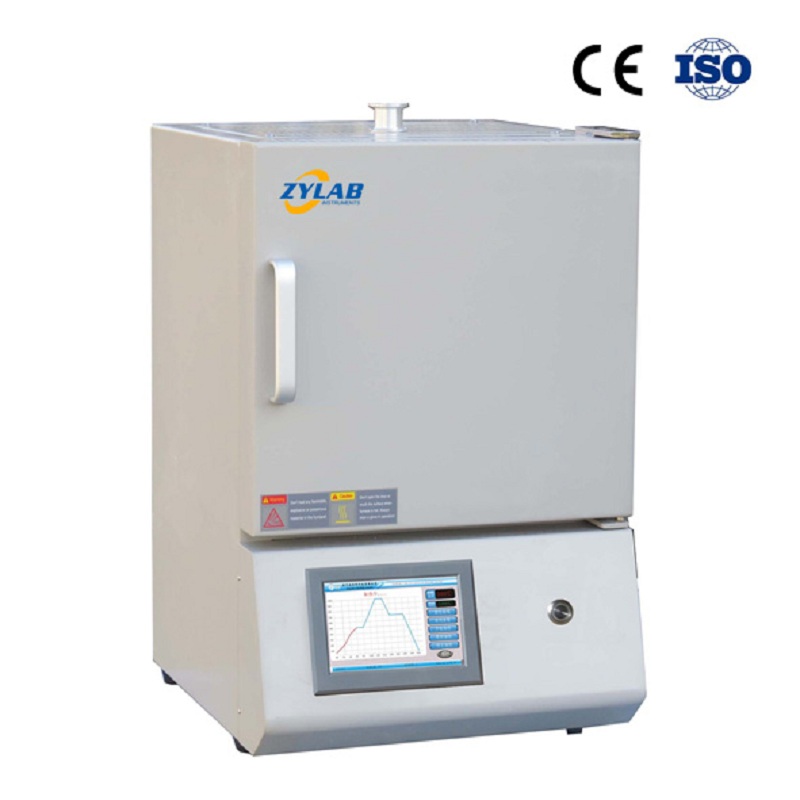

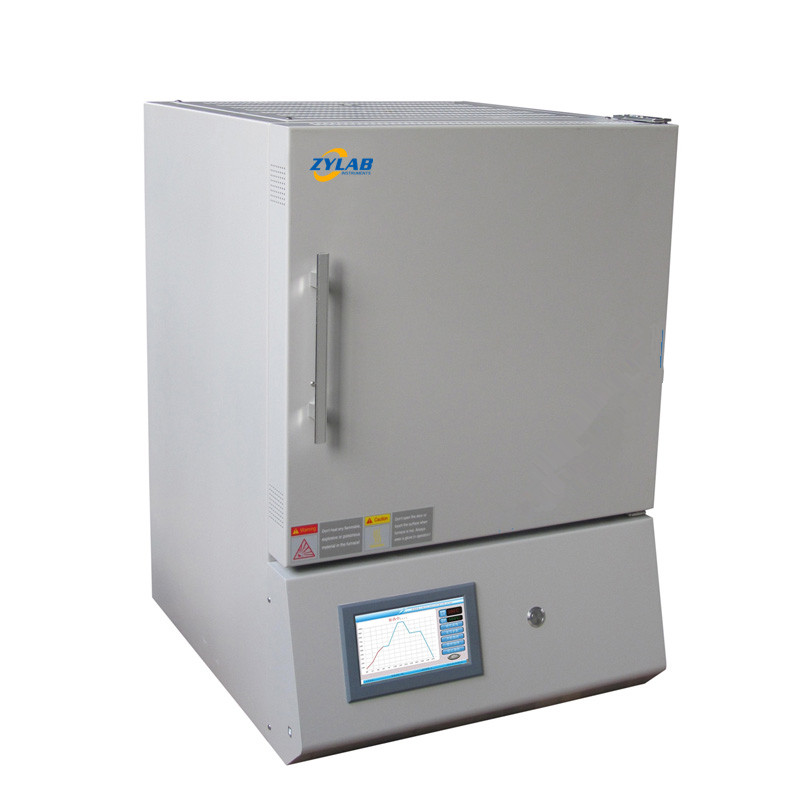

Laboratory Muffle Furnace 1500.C
Introduction:
The first-class workmanship and using high-quality materials, combined with ease of operation, make the Muffle Furnace 1500.C all-rounders in research and the laboratory, such as sintering, melting, annealing, heating, test, etc heat treatment.
The exquisite design gives people a smooth experience. The sintering curve that changes with temperature makes you clear at a glance and solves the problem of wrong curve setting. 15 sintering curves can be pre-stored to save the trouble of repeated modification, plus the classic style and touch screen graphic interface, making the operation of the device more simple. Reasonable heat dissipation design scheme makes the surface temperature of the furnace body always lower than 50.C under high temperature.
Main Features of Muffle Furnace 1500.C:
1. Max. Temperature 1500C, working temperature RT-1450C.

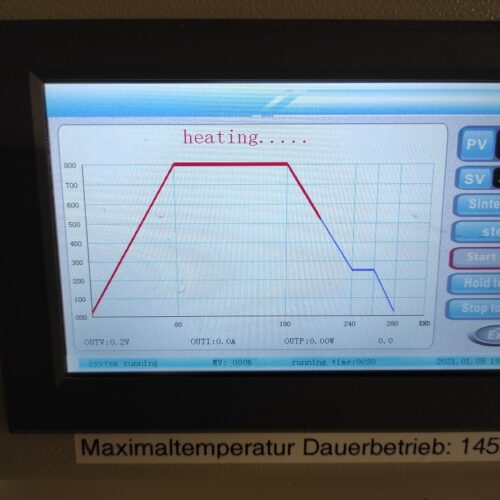

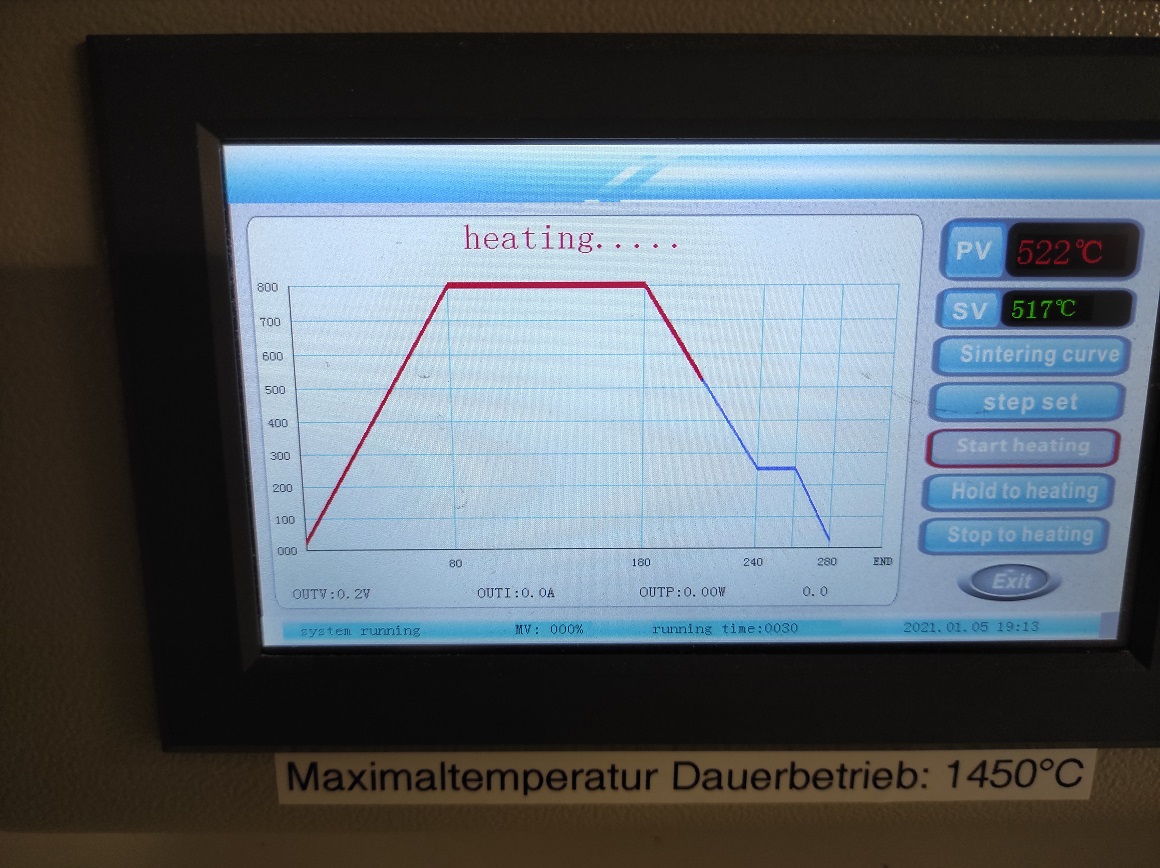

2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 30 segments programmable and auto control.

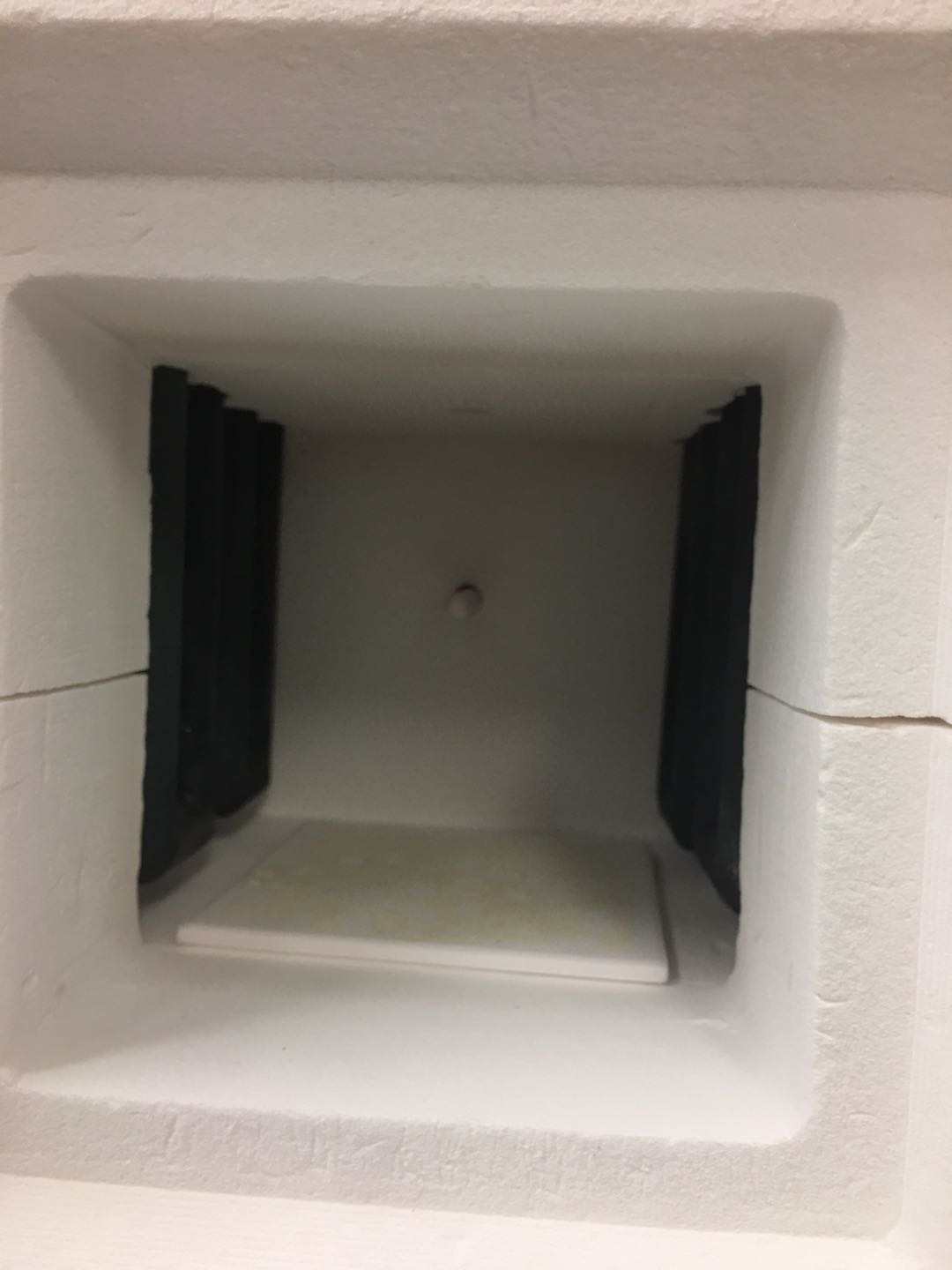

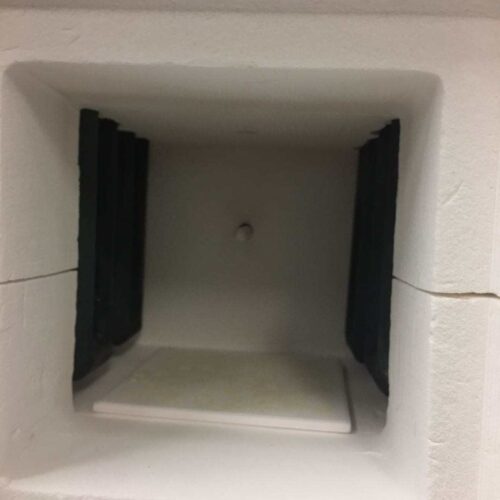

4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and top quality sic heating element with excellent acid and corrosion resistance, products are protected against chemical contamination at the best and long service life.

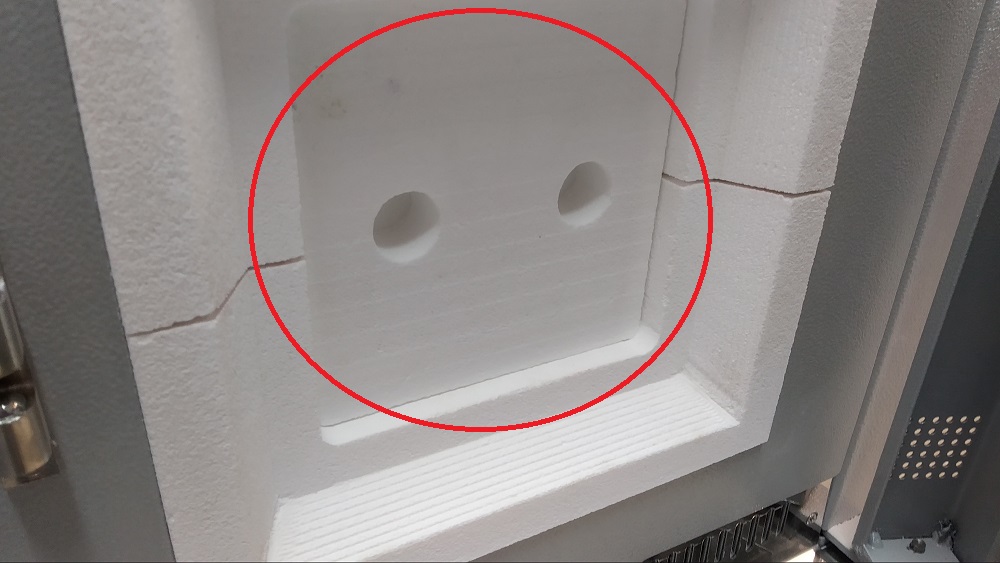

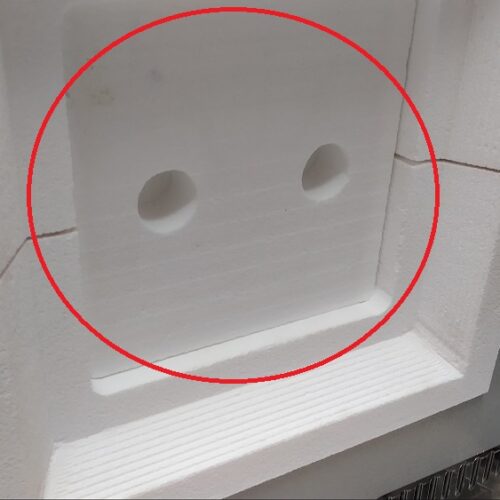

6. Vent hole carefully designed is the perfect solution to the waste gas during material sintering.
7. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
8. Low power consumable, exquisite structure and light weight, it is the ideal muffle furnace for material research labs, also used in factory production.
Main Specifications:
| Model | M1500-12IT |
|
Furnace structure |
•1600 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size
(working space) |
120*120*120mm

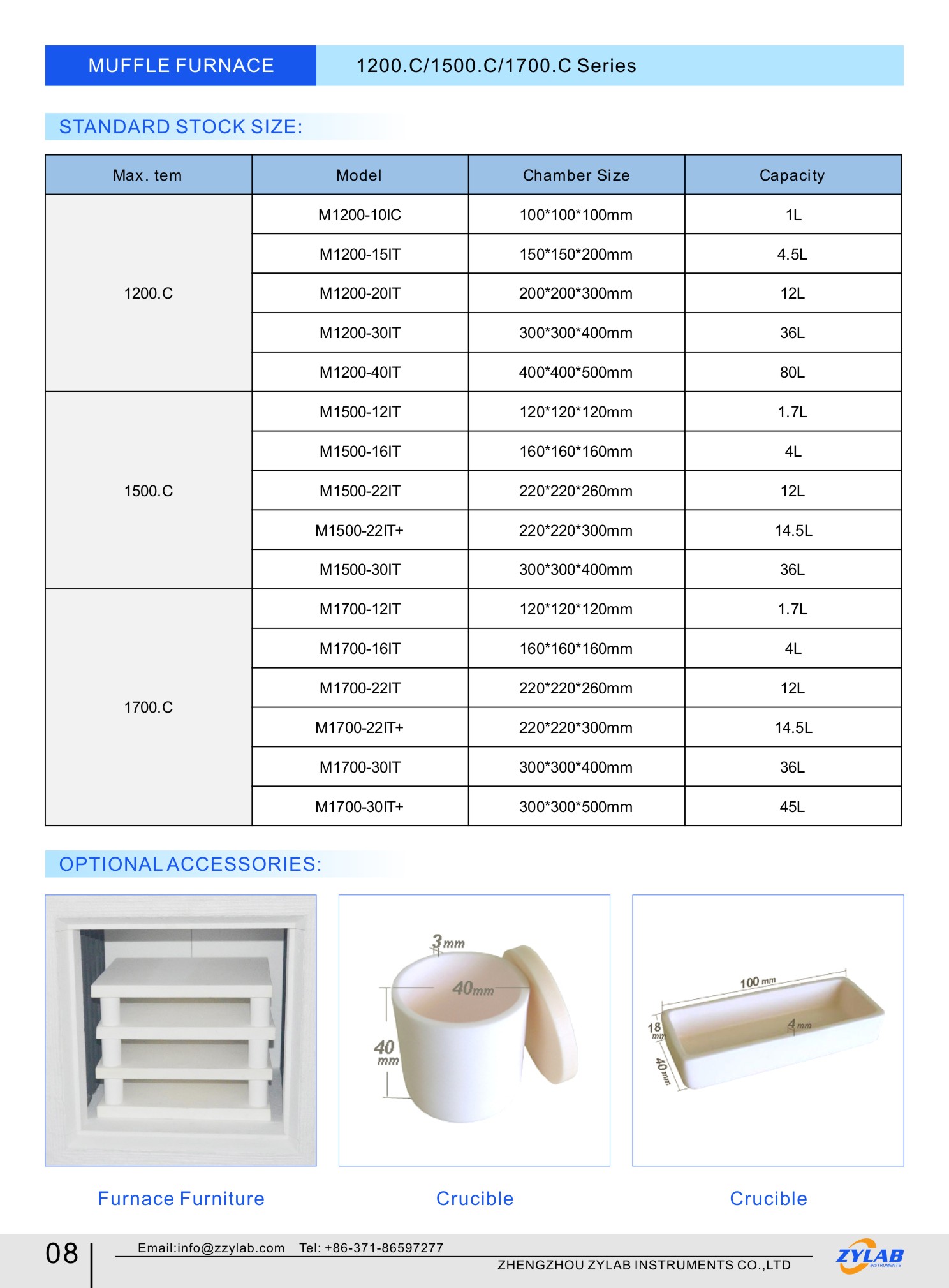

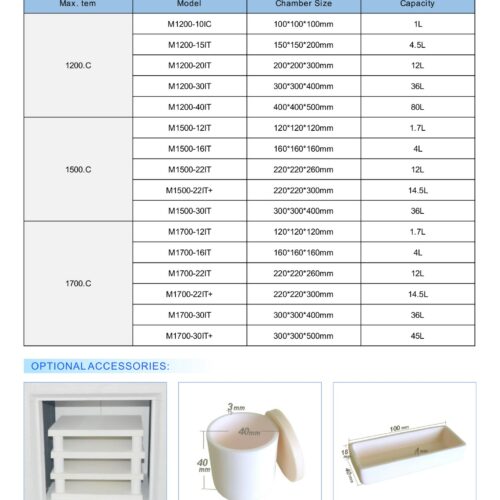

Also supply other sizes:160*160*160mm, 220*220*260mm, 220*220*300mm, 300*300*400mm. |
| Max. temperature | 1500.C(<1hours) |
| Working temperature | RT-1450.C(continuing) |
| Intelligent Touch Screen
Temperature controller |
1. PID automatic control and auto-tune function. 2. 30 programmable segments for precise control. 3. Built in protection for over-heated and broken thermal couple, and leakage. 4. Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation. 5. Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes.
|
| Heating rate | 1℃/H~20℃/Min |
| Thermocouple | S type |
| Temperature accuracy | +/- 1.C |

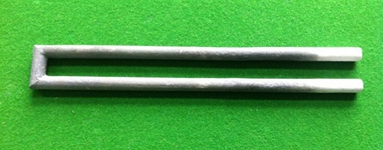

| Heating element | Special high-density and high-purity silicon carbide rod with excellent acid and corrosion resistance
|
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) |
| Max. Power | 1.5Kw |
| Dimension | 390(W)*630(H)*430(D)mm |
| Quantity / Net weight | 1set / 50kgs |
| Warranty | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
| Certificate | CE, ISO9001 |
Which kinds of industry can use this Muffle Furnace 1500.C?
Universities, Chemistry, Material Science, New Energy Research, Metallurgy, Electronics, Ceramic etc.
Applications:
- Materials Research
- Annealing, sintering, and heat treatment of metals and ceramics
- Phase transition and thermal stability studies
- Chemical Analysis
- Ash content determination (plastics, rubber, coal, food, etc.)
- Loss on Ignition (LOI) tests for soils, cement, and minerals
- Gravimetric analysis after high-temperature processing
- Ceramic and Glass Industries
- Sintering of ceramic components (alumina, zirconia, etc.)
- Glass melting, fusing, and thermal conditioning
- Electronics and Semiconductor
- Wafer annealing and stress relief
- Firing and sintering thick-film circuits on substrates
- Environmental Testing
- Determination of organic content in soil and sludge
- Waste material analysis (combustible vs non-combustible fractions)
- Powder Metallurgy
- Debinding and pre-sintering of metal and ceramic powders
- Burnout of binders in molded or 3D-printed parts
