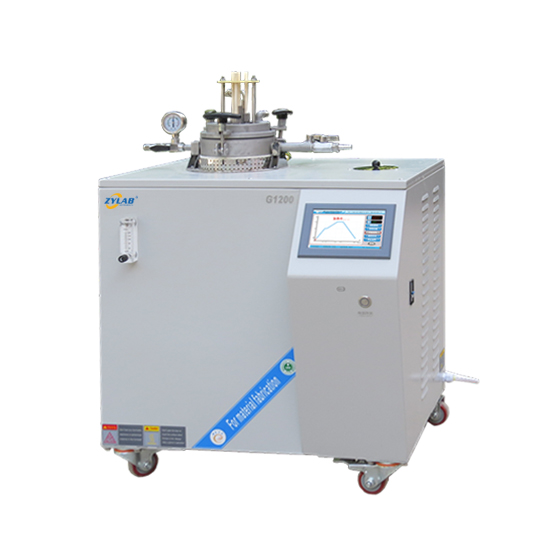

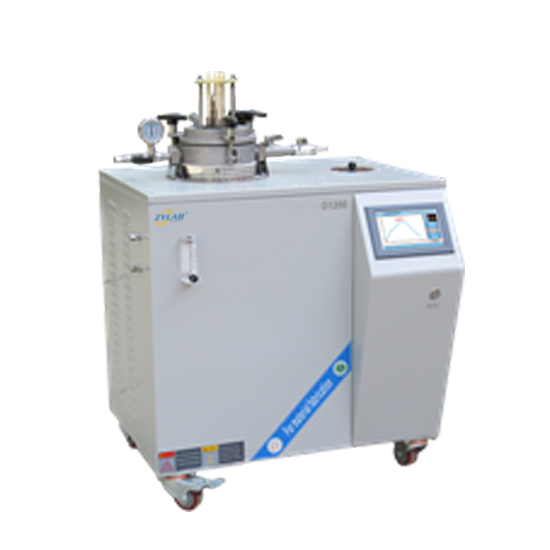

ZYLAB Molten Salt Electroplating Furnace

Introduction

The ZYLAB Molten Salt Electroplating Furnace is a high-performance laboratory-grade furnace specifically designed for molten salt electroplating and electrochemical metallurgy applications. It operates under high temperatures and vacuum or controlled atmospheres, ensuring stable and efficient electrochemical deposition in molten salt environments.

Molten salt electroplating is typically conducted at elevated temperatures, where the deposition process is coupled with solid-state diffusion between the deposited metal and the substrate. This mutual diffusion results in the formation of a strong metallurgical bond between the coating and the base material, significantly enhancing adhesion and durability. Therefore, precise temperature control and stability are critical in molten salt systems. The temperature control system of ZYLAB’s furnace is the core component that directly affects the success of the electroplating process.

Key Features

1. Contactless SCR Control Module

   • Utilizes a non-contact silicon-controlled rectifier (SCR) module to enhance the stability and precision of the temperature control system.

2. Uniform Heating Design

   • The alloy heating elements are embedded and arranged in a ring distribution within the chamber to ensure excellent temperature uniformity throughout the furnace.

3. High-Performance Insulation Materials

   • Constructed with advanced refractory and insulation materials, minimizing heat loss and significantly reducing the overall energy consumption of the equipment.

4. Multiple Electrode Connectors

   • Equipped with multiple electrode terminals, allowing for easy and flexible switching during the electroplating process.

5. High-Temperature Resistant Reaction Vessel

   • The reaction crucible is made from 310S austenitic chromium-nickel stainless steel, known for its superior creep resistance, oxidation resistance, and corrosion resistance at high temperatures.

6. Water-Cooled Sealing Structure

   • Features a water-cooled flange and sealing system that effectively reduces the temperature of the flange, protects sealing components, and ensures airtight integrity during high-temperature operations.

Technical Specifications of Molten Salt Electroplating Furnace

Product Model	G1200
Electrical Power Supply	AC 220V, 2KW
Maximum Temperature	1200°C (for ≤1 hour)
Continuous Working Temperature	1100°C (continuous operation)
Heating Rate	≤ 20°C / minute
Chamber Dimensions	Ø100mm x 200mm (Diameter x Depth)
Temperature Control System		1. Embedded control system with bilingual (Chinese-English) graphical interface 2. 7-inch full-color touchscreen with intuitive human-machine interaction 3. Non-linear temperature correction for enhanced precision 4. Stores up to 15 programmable temperature profiles for different process requirements 5. Safety features include over-temperature alarm, thermocouple break warning, and leakage protection
Temperature Accuracy	±1°C
Heating Elements		Mo-doped Fe-Cr-Al alloy heating wires
Vacuum Reaction Vessel		Austenitic stainless steel reaction tank (310S material), corrosion and oxidation resistant
Net Weight	80KG
Service Support	One-year warranty with lifetime support (warranty excludes consumable parts such as heating elements and thermocouple).

Applications

• Molten Salt Electroplating

  • Deposition of metals such as aluminum, magnesium, titanium, and rare earth metals in molten salt electrolytes.
  • Production of dense, uniform, and strongly bonded metallic coatings on complex-shaped components.
  • Ideal for coating refractory metals or substrates that require high-temperature electrochemical processing.

• Electrochemical Metallurgy

  • High-temperature molten salt electrolysis for extracting and refining reactive metals.
  • Laboratory-scale simulation of industrial processes like aluminum and magnesium smelting.
  • Synthesis of advanced alloys through electrodeposition techniques.

• Surface Modification and Diffusion Coating

  • Creating diffusion layers through solid-state diffusion between the deposited layer and the substrate, enhancing surface hardness, wear resistance, and corrosion resistance.
  • Production of protective coatings for aerospace, automotive, and energy applications.

• High-Temperature Electrolysis Research

  • Investigation of electrochemical processes in molten salts for materials discovery and energy storage applications.
  • Development of novel electrode materials and electrolytes for molten salt systems.

• Advanced Materials Processing

  • Fabrication of functional coatings, including thermal barrier coatings (TBCs) and corrosion-resistant layers.
  • Research on high-temperature ionic conductors and molten salt chemistry.

Why Choose ZYLAB Molten Salt Electroplating Furnace?

1. Precision Temperature Control

ZYLAB furnaces feature an advanced temperature control system with high accuracy (±1°C), ensuring stable process conditions essential for successful molten salt electroplating and electrochemical experiments.

2. Uniform Heating for Consistent Results

The furnace chamber uses a ring-shaped arrangement of Mo-doped Fe-Cr-Al alloy heating elements, delivering excellent temperature uniformity throughout the workspace, which is critical for achieving high-quality and consistent deposition layers.

3. High-Quality Materials and Construction

The reaction vessel is made of 310S austenitic chromium-nickel stainless steel, offering exceptional resistance to oxidation, corrosion, and thermal creep, ensuring long service life even under harsh high-temperature environments.

4. Energy-Efficient and Safe Design

ZYLAB uses high-performance refractory insulation materials that reduce heat loss and lower power consumption. The water-cooled sealing system effectively reduces flange temperatures, protecting sealing components and maintaining vacuum integrity for safe operation.

5. Flexible and User-Friendly Operation

Equipped with an intelligent control system and a 7-inch color touchscreen interface, users can easily program and store up to 15 temperature profiles. Multiple electrode connection points provide operational flexibility for different electrochemical setups.

6. Tailored for Laboratory and Pilot Applications

Specially designed to meet the needs of scientific research and small-scale production, ZYLAB furnaces are ideal for molten salt electroplating, electrochemical metallurgy, surface treatment, and advanced materials development.

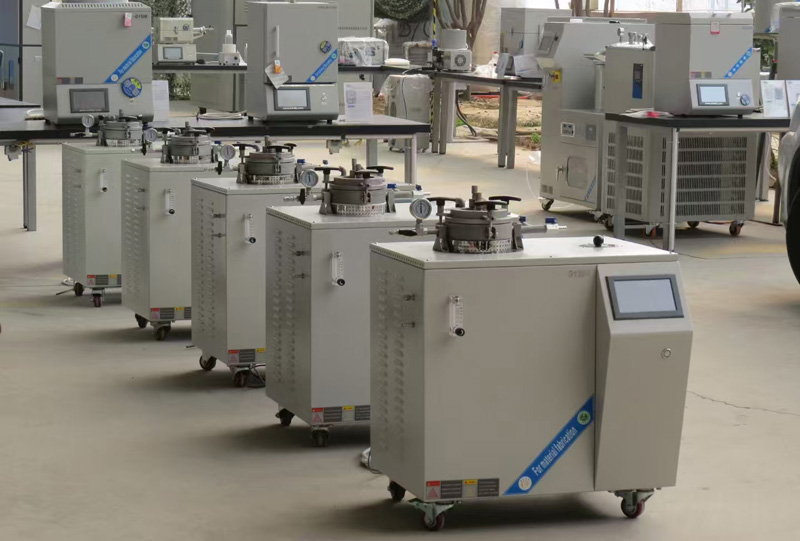

7. Reliable Performance from a Trusted Manufacturer

ZYLAB has a proven track record in providing high-quality laboratory equipment. Our molten salt electroplating furnace fills the gap in the market for advanced molten salt electrochemistry, offering reliable solutions for research institutions and industry labs worldwide.

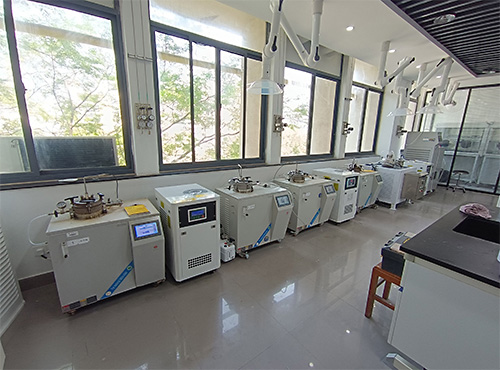

Click Here to View：How Laboratory Molten Salt Electric Heating Furnaces Are Transforming the Aluminum Electrolysis Industry
