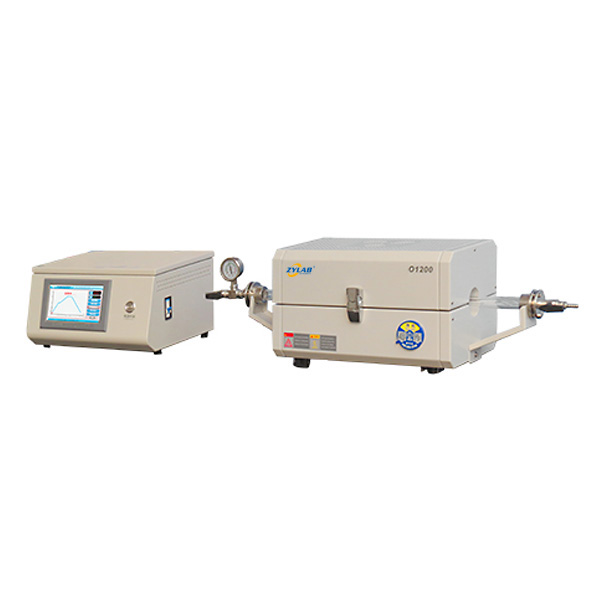

Laboratory Mini Split Tube Furnace
Introduction:
The mini split tube furnace features a design where the heating chamber and control system are separate. It is suitable for experiments involving reactants or products that are toxic, hazardous, flammable, or explosive, or processes with such risk factors. The equipment is simple to operate, safe, and reliable. It can also be used as a specialized device for the sintering, melting, and analysis of metals, non-metals, and other compound materials in vacuum or atmospheric conditions.
Features and Benefits:
- Double-layer air cooling structure;
- High-purity Al2O3 fiber refractory insulation materials for energy saving and consumption reduction;
- High-purity alumina coating on heating elements to extend service life;
- Intelligent touch screen control system for worry-free operation.
Technical Parameters of Mini Split Tube Furnace:
| Model | O1200-25TIY |
| Power Supply | AC220V 1.2KW |
| Touch Screen Size | 7″ |
| Maximum Temperature | 1200°C (<1 hour) |
| Operating Temperature | 300~1150℃(Long-term) |
| Heating Rate | ≤20°C/minute |
| Heating Zone | 300mm |
| Tube Diameter | Φ25mm |
| Control System | 1. Can store up to 15 temperature profiles, avoiding the hassle of resetting for different experimental processes;
2. More intuitive experimental process and easier operation; 3. Embedded operating system with bilingual (Chinese/English) graphical interface, 7-inch true color touch screen input, intelligent human-machine dialogue mode, nonlinear temperature correction.  |
| System Protection | Over-temperature alarm, over-current protection, thermocouple disconnection protection. |

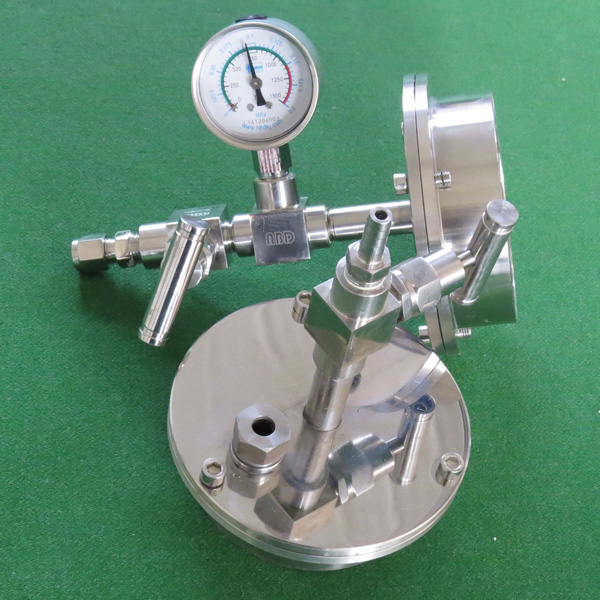

| Sealing System | Stainless steel vacuum sealing
|
| Pressure Measurement and Monitoring | Uses a mechanical pressure gauge with a hermetically sealed case to effectively protect internal components from environmental impact and debris intrusion, while also offering strong corrosion resistance and high-temperature capability.
|
| Temperature Accuracy | +/- 1°C |
| Sensor Type | K-type thermocouple |
| Heating Element | Mo-doped Fe-Cr-Al alloy
|
| Furnace Dimensions | L430×H260×D280mm |
| Net Weight | Approximately 30KG |
| Service Support | 1-year warranty with lifetime support (warranty does not cover consumable parts). |
