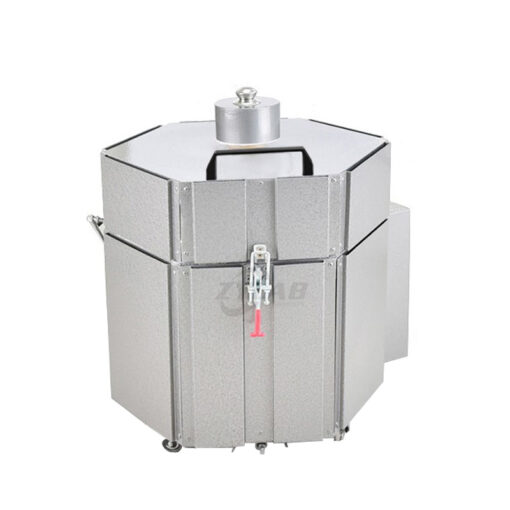

1280.C Low Power Household Mini Ceramic Electric Kiln
Introduction:
This Mini Ceramic Electric Kiln is a professional high-temperature kiln for pottery(ceramic art).
Exquisite and reasonable design will bring you a better ceramic art experience.
Main Features:
1. Top loading, small size, large inner space, smart and convenient.
2. Small power, super energy saving, more safe.

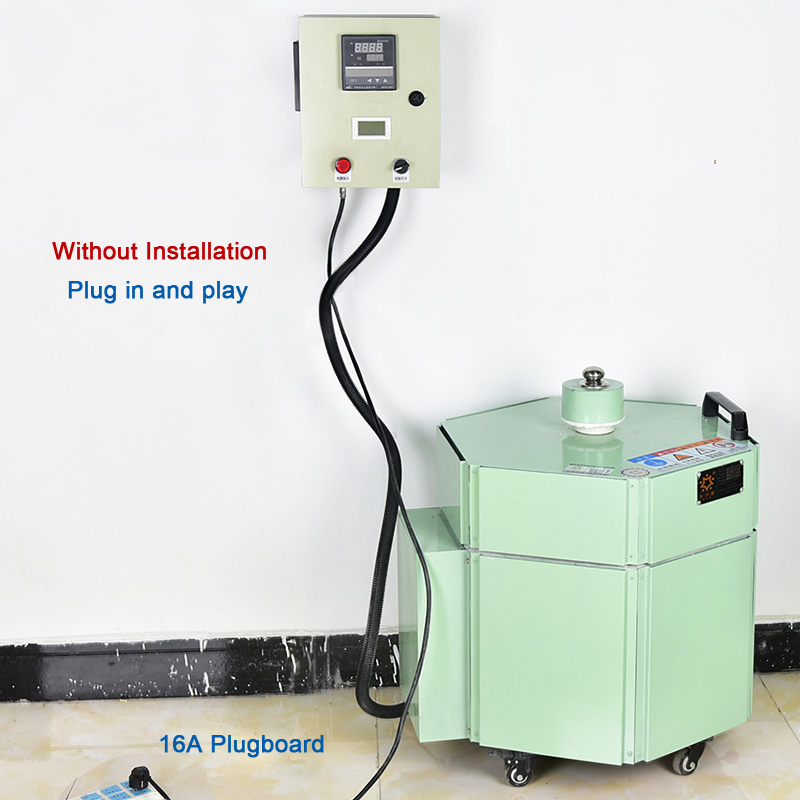

3. Plug in and play (mini model), convenient and simple.
4. 32 steps of intelligent temperature control, automatically run and stop, without personnel on duty.
Detail Characteristics:

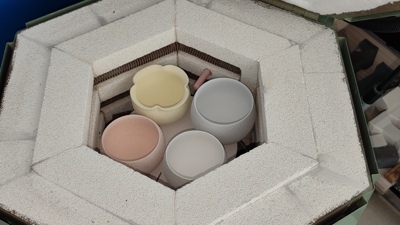

1. Top opening cover is designed with the energy-saving, larger capacity of the same specification, can put more works.

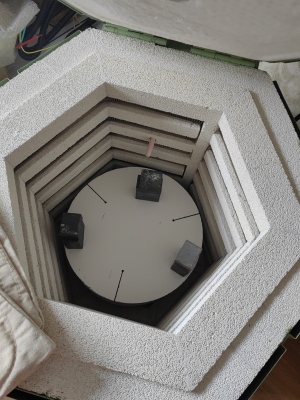

2. Add heating at the bottom, surround the heating wire on 7 sides, and raise the temperature in a three-dimensional way. Compared with other kilns, the heating is balanced, the firing is more stable, and the fired porcelain is more colorful.

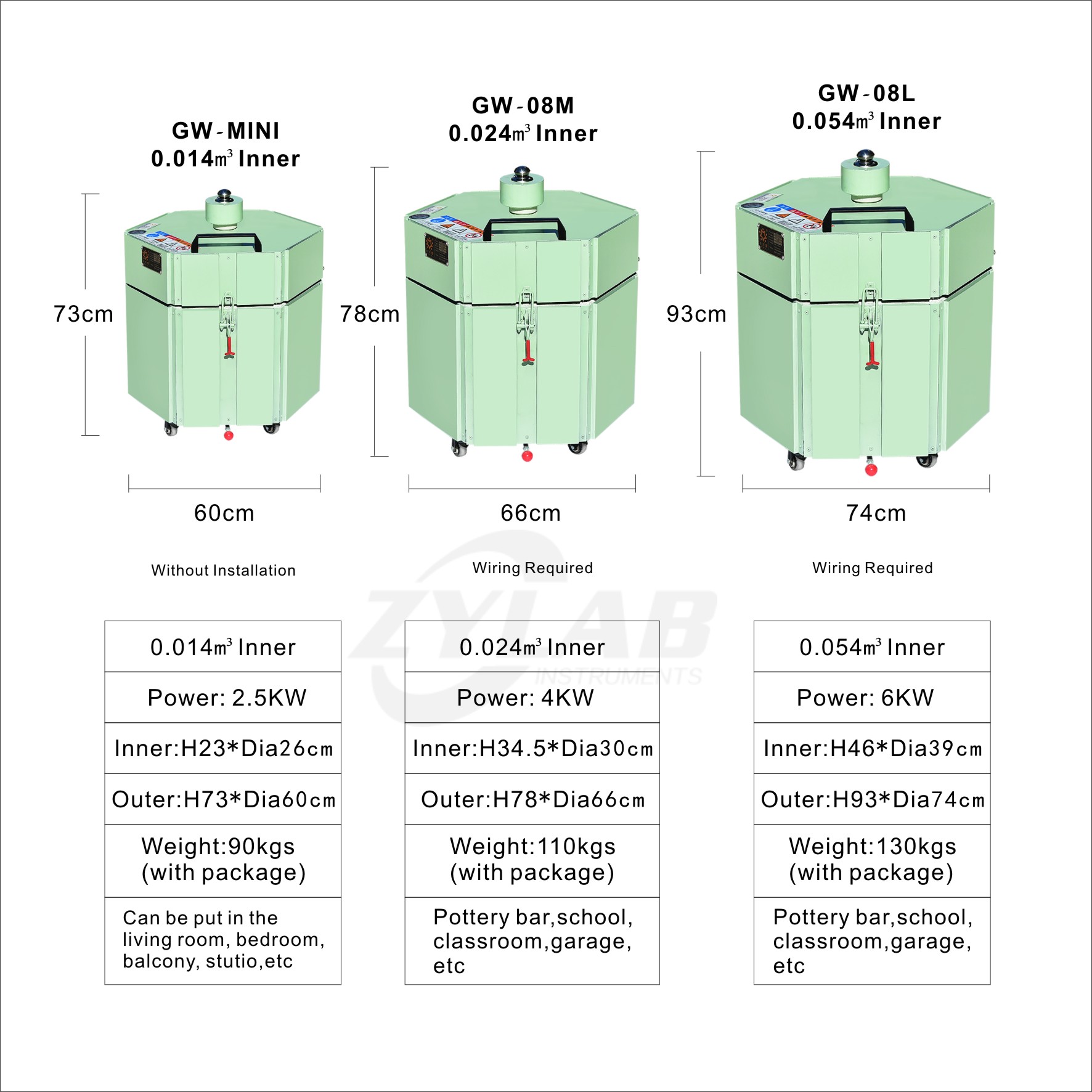

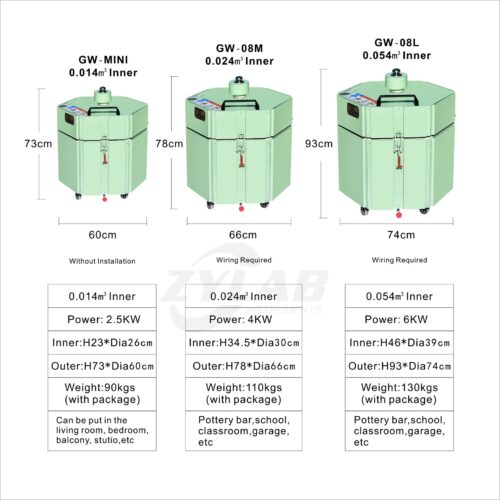

3. Three capacity specifications are available (GW-08Mini 0.014m3, GW-08M 0.027m3, GW-08L 0.054m3), meet different needs.
4. The weight is easy to carry, two adults can easily lift it.

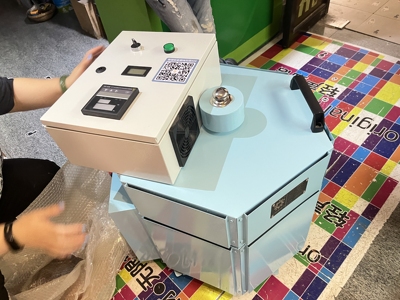

5. Split controller has a longer service life.
6. Support multiple firing modes. Such as plain firing, baking, underglaze color, overglaze color, glaze firing, blue and white porcelain, etc
7. High quality 1300 ℃ silicon molybdenum wire is selected, which greatly improves the firing temperature limit and service life of the electric kiln. Other manufacturer use 1200 ℃ silicon molybdenum wire, the maximum temperature can only reach 1200 ℃, and the service life is short.
8. Five layers of energy gathering (silicon molybdenum wire+light mullite brick+high temperature high aluminum wool board+2.0 steel plate+ folded type plate paint on both sides), safe thermal insulation and temperature locking, reduce heat emission, lower the temperature of the kiln body.
9. The shell is treated against scalding,it is heat-resistant, impact resistant, scratch resistant and easy to clean
10. There is an air vent at the top and bottom, which is convenient and faster for heat dissipation, and the water vapor can be dispersed from the channel.
11. Exquisite universal wheel, made of anti pressure material, is equipped with a fixed locking rotating device, which is convenient for handling and moving.

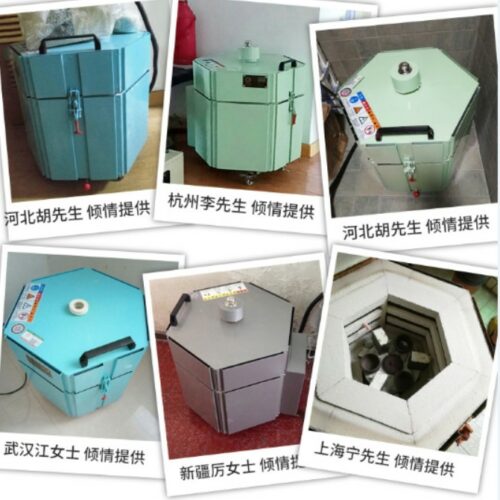

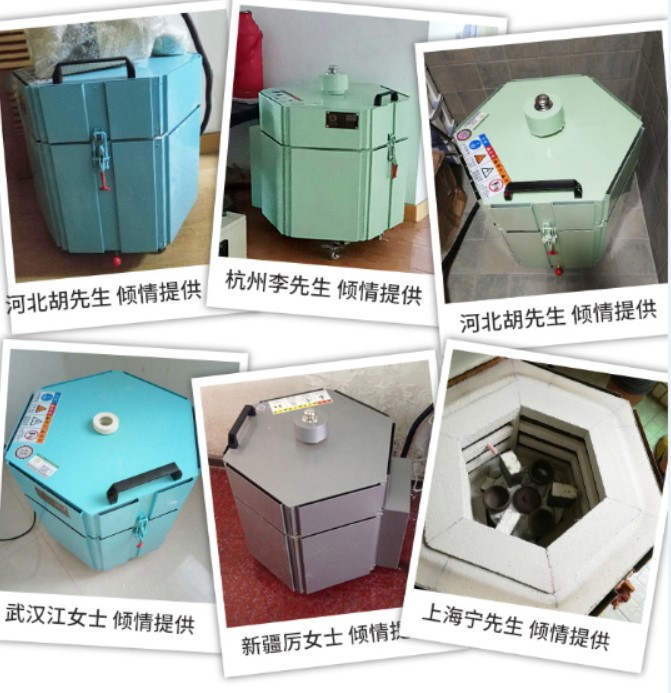

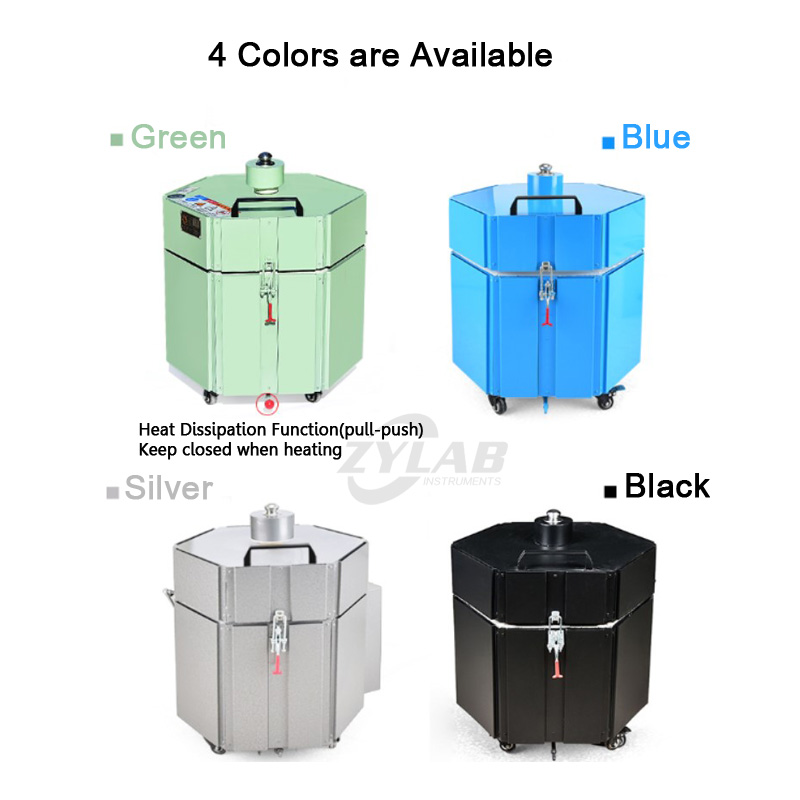

12. Four colors are available: green, blue, silver, black.
13. Green ang environment-friendly, energy-saving and power saving, with power consumption of 10 kWh/time (mini model)
14. The 2.8″ LCD WIFI remote controller can be selected(optional). Even when you are outside, you can also view the use of the electric kiln remotely through the mobile phone app to automatically control the firing of the kiln.
15. Firing utility tools are delivered come with kiln.
*6 pillars, *2 SiC slab, * 1 bottle of slab coating, diameter: 6cm aluminum oxide cake * 20, * 1 pair of High temperature protective gloves.
Main Specifications:
Model | GW-08 |
Kiln structure | •High quality lightweight mullite brick + high temperature high aluminum board as insulation Materials. •Double layers steel casing with fan cooling, to ensure the surface of kiln below 50.C. |
Chamber size
(working space) |
Three specifications are available:
GW-08Mini 0.014m3, GW-08M 0.027m3, GW-08L 0.054m3 |
Max. working temperature | 1280.C |
Long-term
working temperature |
Rt -1240.C |
Intelligent
temperature controller |
•PID automatic control and auto-tune function. •32 programmable steps for precise control. •Built in protection for over-heated and broken thermal couple.•Automatically run and stop, without personnel on duty. |
Heating element | High quality Silicon Molybdenum Wire, 7 heating sides |
Heating rate | 0~20℃/min |
Temperature accuracy | +/- 1 ℃ |
Thermocouple | S type |
Working voltage | 220V 50Hz |
Warranty | 18 months(not including consumable parts, such as heating elements, thermocouple, etc), lifetime support. |
Certificate | ISO9001 |
Turnkey solution are available:(optional)
Equipment (pottery wheel ,drying oven, glazing machines, air pump, pressing machine, etc.)
Clay
Glaze
Pigments
Tools
mold
etc.
(Details, pls contact with our expert)
Which kinds of industry can use this Mini Ceramic Electric Kiln?
Education(school & college)
Ceramic art
Applications:
Professional high-temperature electric kiln for pottery(ceramic art) firing.
