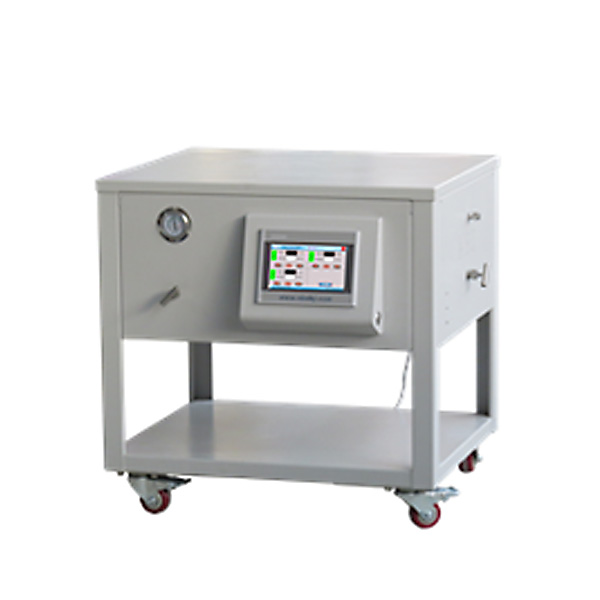

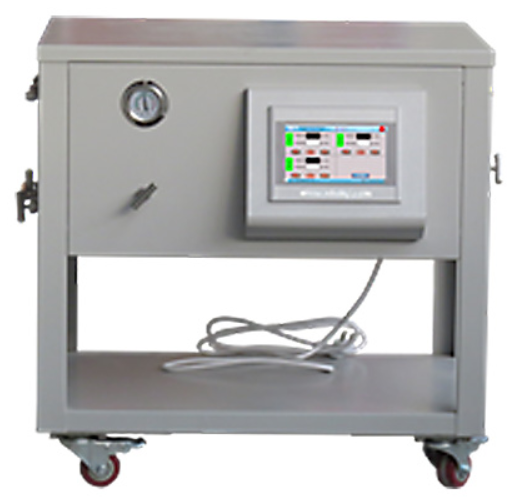

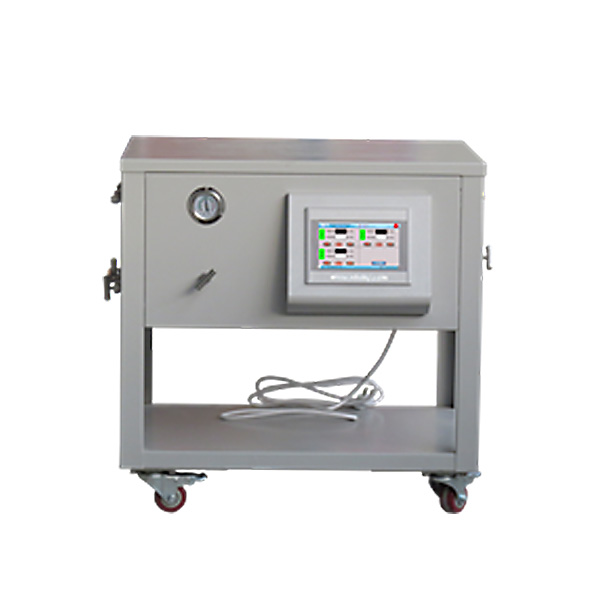

Advanced Touchscreen Mass Flow Control MFC Gas Cabinet for Precise Gas Management
Introduction
This MFC gas cabinet is suitable for low-pressure, low-flow continuous gas supply systems for single or mixed gases.
Features and Benefits
- Conveniently switch between multiple gases while preventing atmospheric air from entering the heating tube.
- The large screen displays gas pressure and flow data clearly, combining aesthetics with practicality for easy operation.
- Accurate flow display ensures effective control of gas consumption.
- Quick-connect fittings for all instruments and valves simplify maintenance and disassembly.
Technical Parameters of MFC Gas Cabinet:
 |
Touchscreen Functionality：
The touchscreen serves as the integrated control terminal for the mass flow controller. It provides power supply, operational control, flow setting, and flow display functions. The flow display instrument can be directly used with our S49 series mass flow controllers (MFC) or S49 series mass flow meters (MFM), and can also be compatible with other models of mass flow controllers. The touchscreen includes the following functions: 1. Provides power supply for mass flow controllers or flow meters. 2. Manual operation control and flow setting. 3. Display of gas flow. 4. Compatible with other models of mass flow controllers. |
||||||
| Model | ZYLAB – 2MFC | ZYLAB – 3MFC | ZYLAB – 4MFC | ||||
| Flow Type | Mass Flow Controller | ||||||
| Pipeline |  |
Uses clean, polished, corrosion-resistant special stainless steel tubing or corrosion-resistant, aging-resistant PTFE tubing (optional). | |||||
| Number of Inlet Interfaces (multi-port
customization available): |
2 | 3 | 4 | ||||
| Interface Size | 1/4” double ferrule fitting | ||||||
| Accuracy | ±1.0% F.S | ||||||
| Flow Measurement Range | Options of 50, 100, 200, or 500 Sccm | ||||||
| Pressure Differential Range | 0.05-0.4MPa | ||||||
| Net Weight | 35KG | ||||||
| Usage Precautions | 1. Ensure that the pressure in the pipeline is <0.15 MPa.
2. After connecting the gas cabinet to the gas cylinder, perform a leak test using soapy water. |
||||||
| Service Support | 1-year warranty, with lifetime support (excludes consumable parts within warranty coverage) | ||||||
