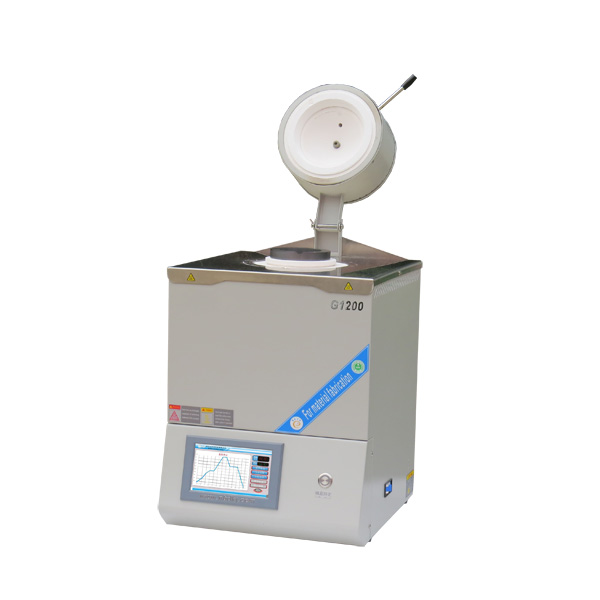

Laboratory 0.45L Precision Melting Furnace 1200℃
Introduction:
The lab precision melting furnace is suitable for melting precious metals such as gold, silver, and copper, and facilitates the casting and forming of precision castings at high temperatures. It uses alumina fiber refractory insulation materials, making it more energy-efficient and power-saving.
Features and Benefits of Melting Furnace:
- Uses a contactless silicon-controlled rectifier (SCR) module to improve system control stability;
- Small size, lightweight, low power consumption;
- High melting efficiency, excellent energy-saving effect, uniform metal composition.
Technical Parameters of Melting Furnace:
| Model | P1200-0.45LTI
|
|
| Power | AC220V 2KW | |
| Max.temp | 1200℃（<1 hour） | |
| Working temp | 1150℃（Continuous） | |
| Heating rate | ≤30℃/min | |
| Effective
Chamber Volume |
0.45L(450ml) | |
| Graphite Crucible with Quartz Sheath |
|
Made of high-purity graphite, mainly used for melting non-ferrous metals such as copper, aluminum, and alloys. |
| Accuracy | +/- 1℃ | |
| Heating Element |  |
Molybdenum-doped iron-chromium-aluminum alloy heating wire. |
| Net Weight
Dimensions |
39KG
W400*D450*H650mm
|
|
| Service Support | 1-year warranty, lifetime support (warranty does not include consumable parts). | |
