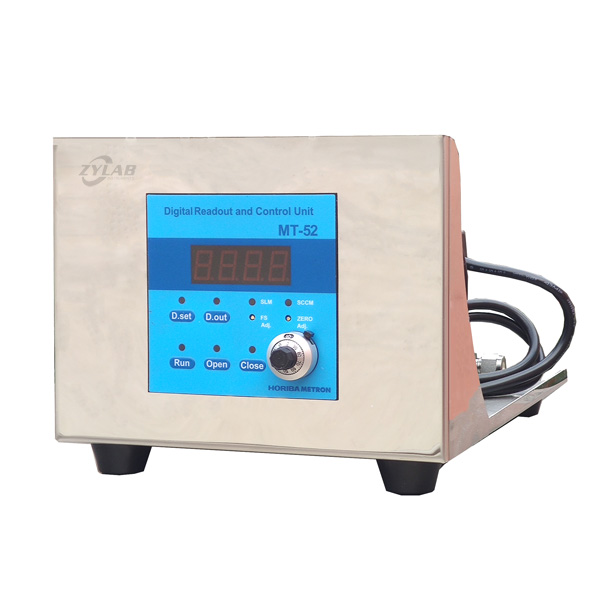

Single-Channel Gas Mass Flow Controller
Introduction
This series of gas mass flow controller is suitable for low-pressure, low-flow, continuous gas supply of various gases. The gas pressure and flow data are intuitively readable on the control panel, making operation simple. The flow control is precise, effectively managing gas consumption. It can be used in conjunction with tube furnaces and other equipment for research experiments such as CVD and atmosphere sintering.
Features and Benefits
- Aesthetic design with strong practicality and easy operation.
- Made of corrosion-resistant polished stainless steel or corrosion-resistant PTFE tubing.
- Reliable mixing device ensuring uniform gas mixing. (Multi-gas)
- All use standard size connectors to ensure compatibility.
- Multi-gas mixing can be customized upon consultation.
Technical Parameters of Mass Flow Controller:
| Model | 1Z |
| Flow Meter Type | High-precision Proton Flow Controller |
| Number of Inlet Interfaces (Multi-channel customizable) | 1 |
| Interface Size | 1/4” double ferrule connector |
| Accuracy | ±1.0% F.S |
| Flow Meter
Measurement Range |
Options of 50, 100, 200, 500 Sccm |
| Pressure Differential Range | 0.05-0.4 MPa |
| Net Weight | 5 KG |
| Usage Precautions | 1. Ensure pipeline pressure is <0.15 MPa.
2. Perform leak testing with soapy water after connecting the gas cabinet to the gas cylinder. |
| Service Support | 1-year warranty, with lifetime support |
For More Options
Please visit our website [Atmosphere Control Collection]
