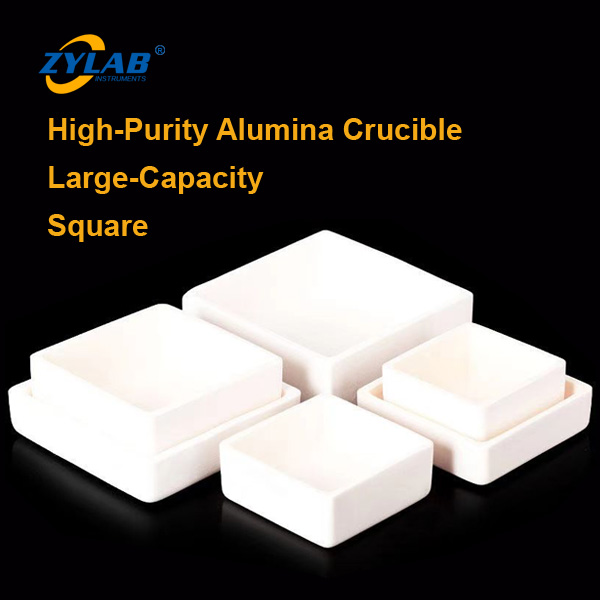

ZYLAB Large-Size High-Temperature Alumina Square Crucible
Product Details:
ZYLAB Large-Size High-Temperature Alumina Square Crucible is specifically designed for demanding high-temperature applications. Made from high-purity alumina (≥99%), this crucible ensures exceptional thermal stability, chemical resistance, and long-term durability.
With its large-size design, this square crucible accommodates substantial material volumes, making it ideal for research and industrial processes requiring high-capacity sample treatment. The crucible also features a customizable window option, allowing users to observe the heating process directly or introduce gas flow for controlled atmospheric conditions.
ZYLAB’s alumina square crucible offers customization options in terms of size, window placement, and coating, making it highly adaptable for specific applications.
-
Material: High-purity alumina (＞99%)
-

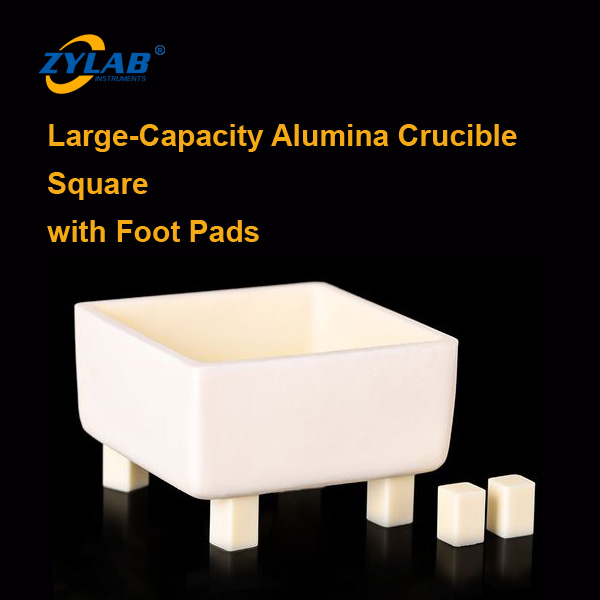

Shape: Square, with reinforced corners and foot pads for stability
-
Temperature Resistance: Long-term operating temperature up to 1600°C
-
Thermal Shock Resistance: Withstands rapid heating and cooling cycles without cracking
-
Chemical Stability: Resistant to most acids, alkalis, and molten metals
For more information, custom orders, or technical support, please contact us.
Applications
-
High-Temperature Heat Treatment: Ideal for calcination, annealing, and sintering processes.
-
Advanced Material Research: Suitable for synthesizing high-purity compounds and analyzing thermal stability.
-
Industrial Processes: Perfect for high-capacity melting and holding applications.
-
Laboratory Experiments: Great for thermal analysis, material testing, and chemical reactions.
-
Semiconductor and Battery Materials: Used in wafer annealing, powder sintering, and more.
Specifications for Large-Size High-Temperature Alumina Square Crucible
| Large-Size High-Temperature Alumina Square Crucible(UoM：mm) | |||
| 100×100×25 | 100×100×35 | 100×100×40 | 100×100×60 |
| 100×100×100 | 105×105×12 | 105×105×40 | 115×115×35 |
| 120×120×50 | 120×120×100 | 135×135×60 | 140×140×38 |

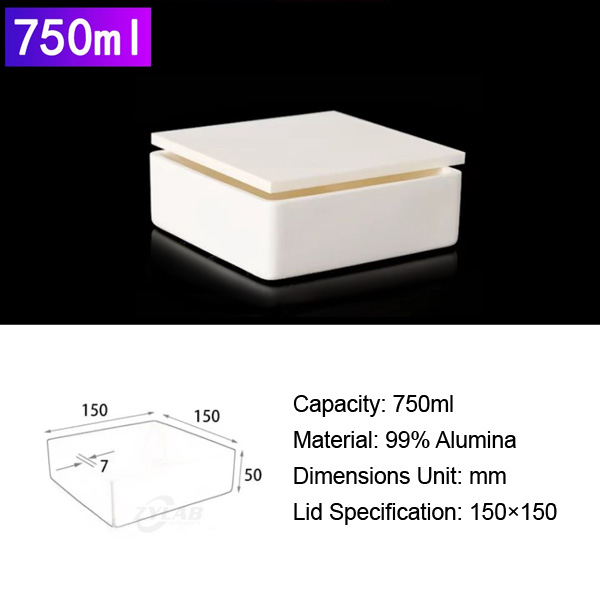

| 140×140×45 | 140×140×70 | 150×150×30 | 150×150×50 |
| 150×150×60 | 150×150×80 | 160×160×45 | 180×180×60 |
| 200×200×50 | 200×200×80 | 200×200×100 | 225×225×83 |

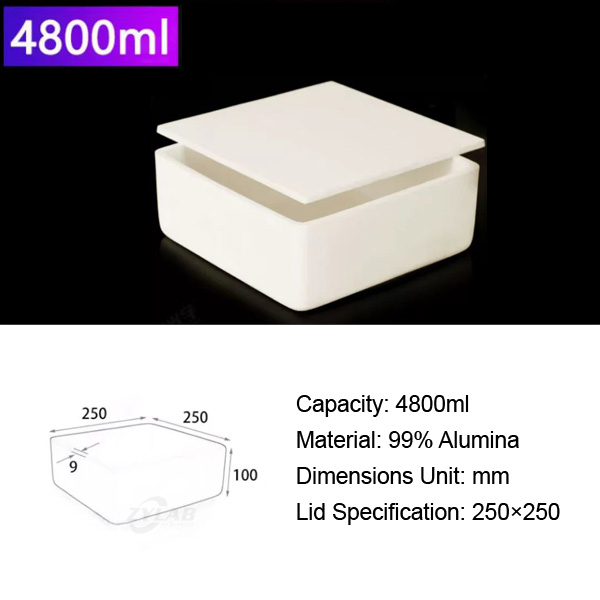

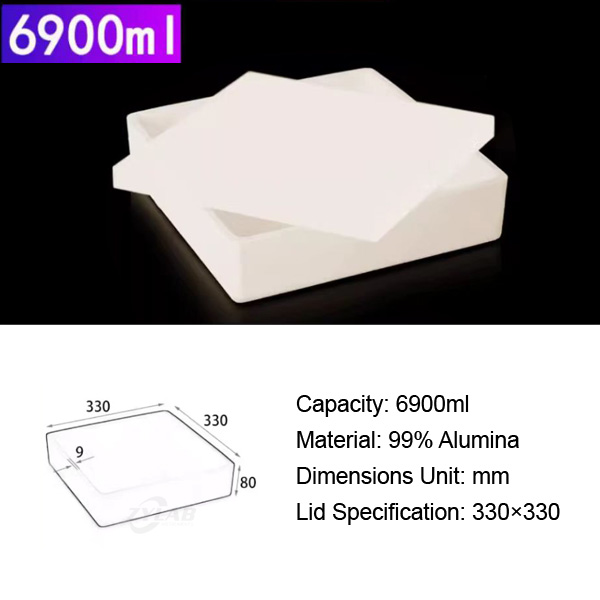

| 250×250×80 | 250×250×100 | 330×330×80 | 330×330×120 |
| 330×330×160 | |||
Custom dimensions and shapes are available upon request.
If you need more detailed information, please contact us immediately. We offer free quotes on all products!
High Purity Alumina Crucibles Notes for Use:
1. Before the first use, preheat the crucible in an oven at around 105°C for 120 minutes to remove moisture.
2. Do not directly heat the crucible with gasoline blowtorch, acetylene torch, or alcohol burner to avoid uneven heating and cracking of the product.
3. The heating or cooling rate should not be too fast. The temperature change below 1200°C should be <5°C/minute, and above 1200°C should be ≤4°C/minute. When cooling, it is recommended to control the temperature by powering off gradually. Cooling too fast during the initial cooling phase after turning off the power may cause the product to crack.
4. The distance between the product and the heating element (such as carbon tube, silicon molybdenum rod, or heating wire, etc.) should be >2cm.
5. The bottom of large crucibles should preferably not directly contact the bottom of the furnace. It is recommended to use alumina foot pads or other heat-resistant materials to lift the crucible, forming air convection to prolong the service life of the product.
FAQ
Q: Can the crucible handle rapid temperature changes?
A: The crucible is designed to resist thermal shock, but gradual heating and cooling are recommended to extend its lifespan.
Q: Are custom sizes available?
A: Yes, we offer size and capacity customization to meet specific application requirements.
Q: What industries use this type of crucible?
A: Common industries include semiconductor manufacturing, materials research, chemical analysis, and high-temperature material processing.
