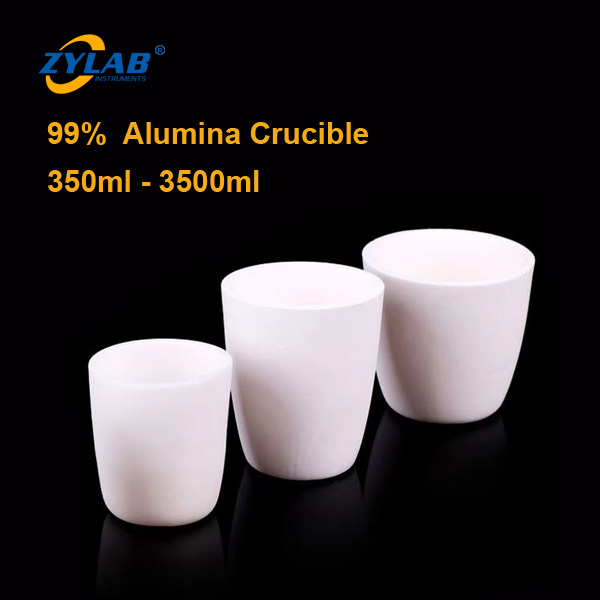

ZYLAB Large-Capacity High-Purity Alumina Crucible
Product Details:
ZYLAB Large-Capacity Alumina Crucible is designed for high-temperature applications requiring superior purity and thermal stability. Engineered with high-purity alumina (purity ≥99%), it is ideal for laboratory, industrial, and research environments where precision and durability are essential. The crucible’s high form and large capacity make it suitable for processing bulky or large-volume samples.
Material: Alumina (Al₂O₃)
Purity: ≥99%

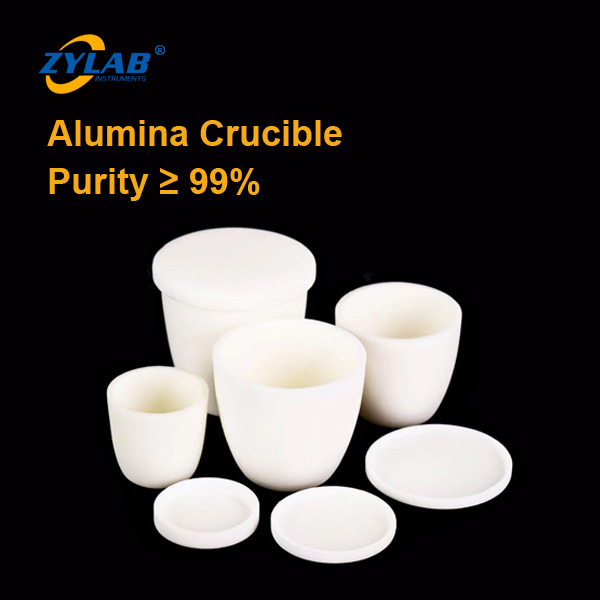

Shape: High Form, with or without Lid
Continuous operating temperature: ≤1600°C
Thermal Shock Resistance: Excellent performance under rapid heating and cooling cycles
Chemical Resistance: Inert to most acids, alkalis, and molten metals
Electrical Insulation: Superior dielectric properties at high temperatures
For more information, custom orders, or technical support, please contact us.
Applications
-
Material Synthesis: Efficient sintering and calcination of metals, ceramics, and composite materials.
-
High-Temperature Melting: Ideal for melting and casting metals and alloys in research and industrial environments.
-
Chemical Processing: Suitable for reactions requiring high thermal stability and chemical resistance.
-
Laboratory and R&D: Used in material science research for sample analysis and preparation.
Why Choose ZYLAB Large-Capacity Alumina Crucible?
-
Reliable performance in high-temperature environments.
-
High purity ensures low contamination risk.
-
Large capacity for bulk material processing.
-
Precision design for consistent results in laboratory and industrial applications.
Specifications for Large-Capacity Alumina Crucible
| Large-Capacity High-Purity Alumina Crucible (UoM：mm) | |
| 300 ml, Ø100 (top), Ø50 (bottom), H85 mm | 300 ml, Ø83 (top), Ø50 (bottom), H106 mm |
| 350 ml, Ø89 (top), Ø50 (bottom), H103 mm | 460 ml, Ø100 (top), Ø62 (bottom), H85 mm |
| 460 ml, Ø85 (top), Ø55 (bottom), H130 mm | 500 ml, Ø100 (top), Ø62 (bottom), H117 mm |

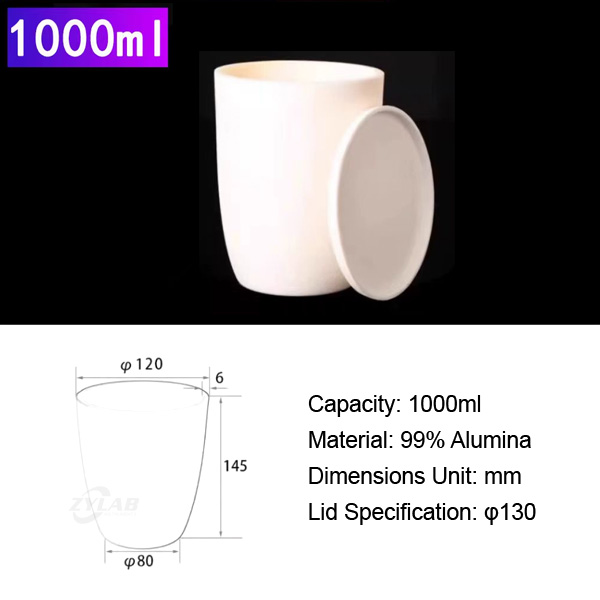

| 750 ml, Ø111 (top), Ø75 (bottom), H128 mm | 1000 ml, Ø120 (top), Ø80 (bottom), H145 mm |
| 1300 ml, Ø130 (top), Ø85 (bottom), H155 mm | 1500 ml, Ø140 (top), Ø85 (bottom), H175 mm |

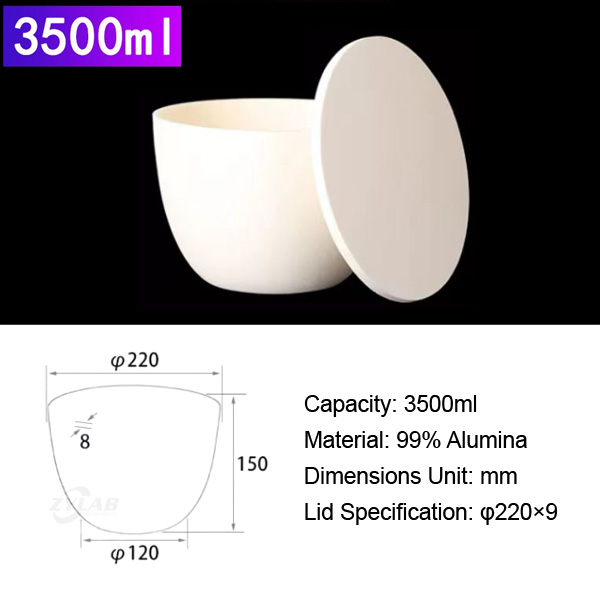

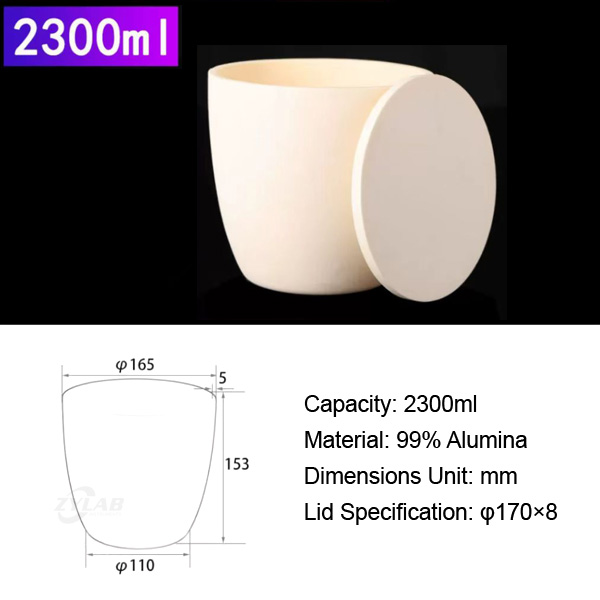

| 2300 ml, Ø165 (top), Ø110 (bottom), H153 mm | 3500 ml, Ø220 (top), Ø120 (bottom), H150 mm |
Custom dimensions and shapes are available upon request.
If you need more detailed information, please contact us immediately. We offer free quotes on all products!
High Purity Alumina Crucibles Notes for Use:
1. Before the first use, preheat the crucible in an oven at around 105°C for 120 minutes to remove moisture.
2. Do not directly heat the crucible with gasoline blowtorch, acetylene torch, or alcohol burner to avoid uneven heating and cracking of the product.
3. The heating or cooling rate should not be too fast. The temperature change below 1200°C should be <5°C/minute, and above 1200°C should be ≤4°C/minute. When cooling, it is recommended to control the temperature by powering off gradually. Cooling too fast during the initial cooling phase after turning off the power may cause the product to crack.
4. The distance between the product and the heating element (such as carbon tube, silicon molybdenum rod, or heating wire, etc.) should be >2cm.
5. The bottom of large crucibles should preferably not directly contact the bottom of the furnace. It is recommended to use alumina foot pads or other heat-resistant materials to lift the crucible, forming air convection to prolong the service life of the product.
