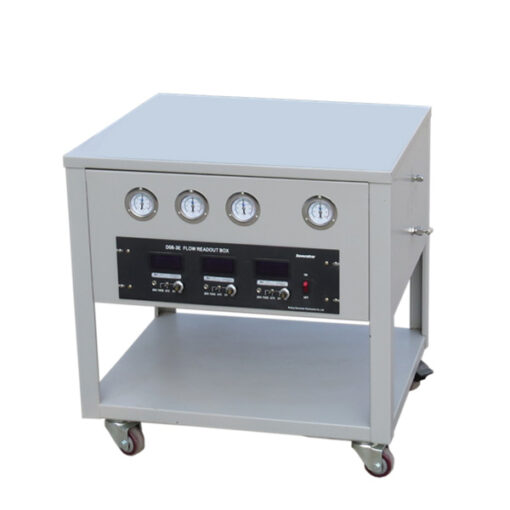

Multi-Channel Laboratory Gas Mixer with High-precision Mass Flow Meter
Introduction:
The laboratory gas mixer is suitable for low-pressure, low-flow situations and is used to mix multiple gases for continuous supply. Gas pressure and flow data are clearly visible on the control panel, making operation simple. Precise flow control effectively manages gas consumption. It can be used in conjunction with equipment such as tube furnaces for CVD, atmosphere sintering, and other research experiments.
Features and Benefits:
1.Stylish appearance, strong practicality, and easy operation;
2.Made of corrosion-resistant polished stainless steel tubing or corrosion-resistant polytetrafluoroethylene (PTFE) tubing;
3.Reliable gas mixing device ensures uniformity of gas mixture;
4.Standard-sized connectors are used to ensure versatility;
5.For multi-gas mixing, customization options are available upon consultation.
6. All valves and parts are easy to maintain and disassemble.
Technical Parameters of Laboratory Gas Mixer:
| Model | ZYLAB-2Z | ZYLAB-3Z | ZYLAB-4Z | ||||
| Flowmeter Type | High-precision Mass Flow Meter | ||||||
| Pipeline Schematic |
Utilizes clean, polished stainless steel tubing or corrosion-resistant, aging-resistant polytetrafluoroethylene (PTFE) tubing (optional) |
||||||
| Number of Gas Inlet Ports (customizable for multi-port) | 2 3 | 4 | |||||
| Port Size | 1/4″ Double Ferrule Connector | ||||||
| Accuracy | ±1.0%F.S | ||||||
| Flowmeter Measurement Range | 50、100、200、500Sccm Optional | ||||||
| Pressure Range | 0.05-0.4MPa | ||||||
| Net Weight | 35KG | ||||||
| Usage Notes | Ensure the pressure inside the pipeline is <0.15MPa; | ||||||
| Service Support | 1-year warranty with lifelong support | ||||||
