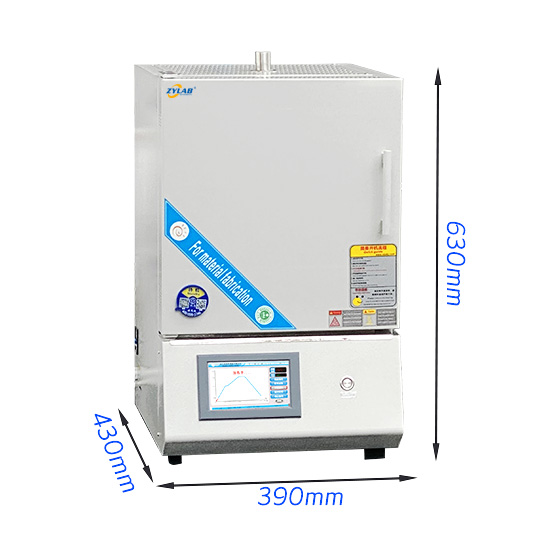

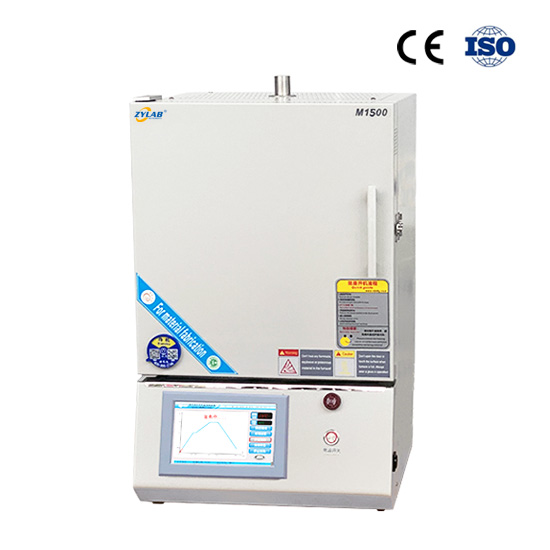

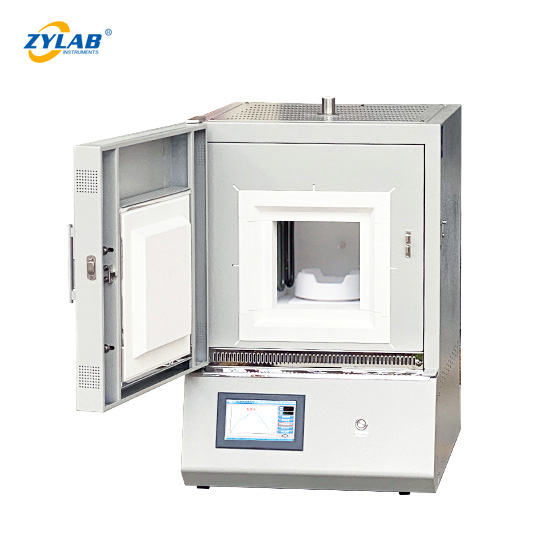

ZYLAB Laboratory Box Furnace 1500°C
Introduction
ZYLAB Laboratory Box Furnace offers precise and reliable high-temperature processing up to 1500°C, ideal for laboratory sintering, thermal testing, and small-scale material production.
Compact and customizable, it features advanced insulation, intelligent control, and durable SiC heating elements.
Key Features
-
High Maximum Temperature – Up to 1500°C
Suitable for high-temperature sintering, annealing, and material testing applications. -
Laboratory-Scale Design
Optimized for laboratory environments, offering compact size with effective thermal performance. -
7-Inch Color Touchscreen Controller
Intuitive interface with real-time temperature display, program memory, and precise PID control. -
30-Segment Programmable Logic
Enables automatic execution of custom heating profiles for consistent and repeatable results. -
Durable Ceramic Fiber Chamber
Offers low thermal conductivity, fast heat-up rates, and improved energy efficiency. -

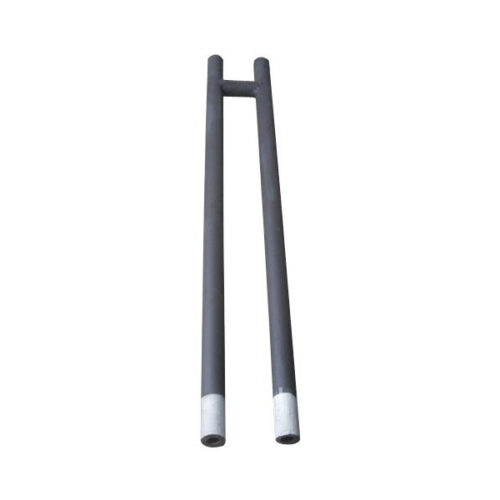

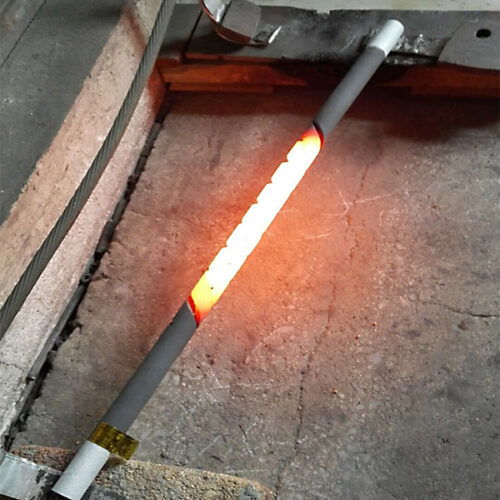

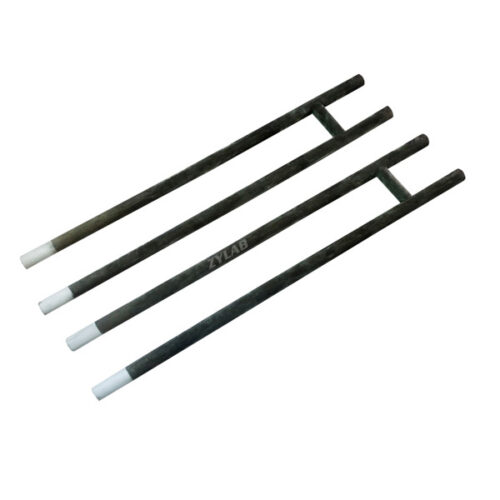

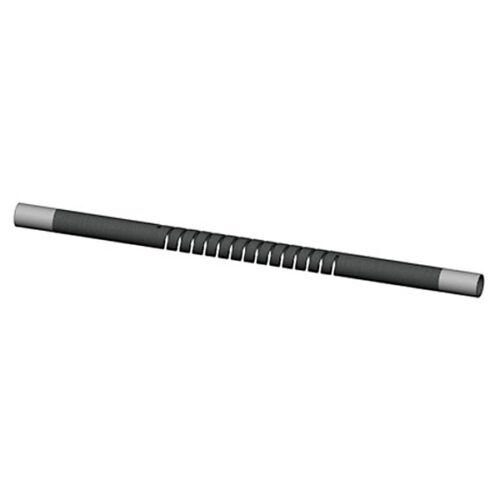

Premium Silicon Carbide Heating Elements
Equipped with high-purity SiC rods featuring excellent acid resistance and corrosion resistance, ensuring durability and clean thermal processing. -
Double-Layer Steel Casing with Cooling Fan
Keeps the exterior surface temperature below 50°C to ensure safe operation in lab environments. -
Top-Mounted Exhaust Chimney
Efficient removal of gases and fumes generated during heat treatment processes, improving workplace safety and sample integrity. - Customizable Chamber Size
Standard sizes are available, and the furnace chamber can be tailored to meet specific laboratory or R&D needs.
Applications of Laboratory Box Furnace
-
Ceramic and Glass Sintering – Processing of technical ceramics, enamels, and advanced glass
-
Battery Material Research – Sintering cathode and anode materials, as well as solid electrolytes
-
Powder Metallurgy – Debinding and sintering of metal powders in research or prototype production
-
Thermal Property Testing – Used in research labs to study thermal resistance, crystallization, and phase changes
-
Material Science R&D – Supports experiments in material development and heat treatment studies
-
Small-Scale Production – Ideal for producing small batches of high-performance materials
Technical Specifications of Laboratory Box Furnace
Model | M1500-12 | M1500-16 | M1500-22 |
Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) | ||
Max. Power | 1.5KW | 3KW | 3.5KW |
Maximum Temperature | 1500°C (for ≤1 hour) | ||
Continuous Working Temp | 1450°C (continuous) | ||
Max Heating Rate | ≤20°C/min | ||
Chamber Size | 120 × 120 × 120 mm | 160 × 160 × 160 mm | 220 × 220 × 260 mm |
Temperature Controller | ![]() |
|
|
Temperature Accuracy | ±1°C | ||

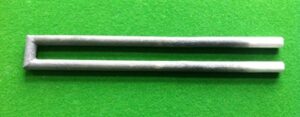

Heating Element | ![]() |
High-density silicon carbide rods | |
Net Weight | 50 kg | 70 kg | 85 kg |
Safety Notice |
|
||
Warranty & Support | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
Advantages of ZYLAB Furnaces
-
Flexible Customization – Designed to meet diverse laboratory demands
-
Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments
-
Professional Support – Dedicated technical service and documentation
-
Efficient Logistics – Timely delivery and global shipment options
