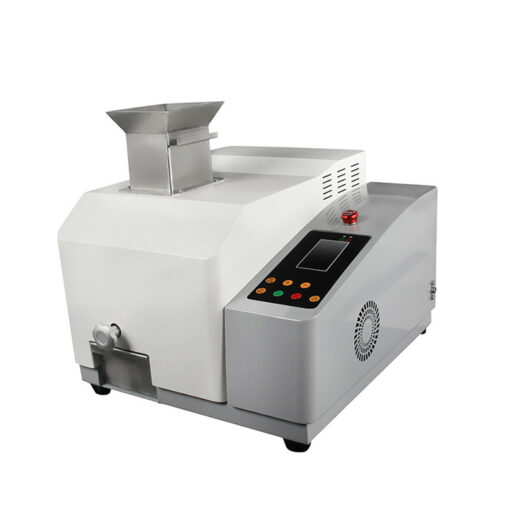

Laboratory Clean Crushing Jaw Crusher
Introduction:
Jaw crusher is one of many crushers, mainly used in various ore, metallurgy, mining, chemical, building materials, resistant, fire materials, ceramics, environmental protection, materials, biology, etc., mainly rely on the movable jaw plate to periodically press against the fixed jaw plate, and the materials sandwiched in it are squeezed and crushed to obtain the thinnest 1mm material.
In the laboratory crusher belongs to the material front section processing equipment, is one of the essential processing in the crushing stage, the appearance is small, the design is simple, uses the liquid crystal control operating system, the process is simple and easy to use, The adjustment process can display the crocodile spacing intuitively on the display screen. Suitable for material diameter less than 30 mm. After crushing, the material is adjusted arbitrarily between 1-10 mm.
Detailed Characteristics:

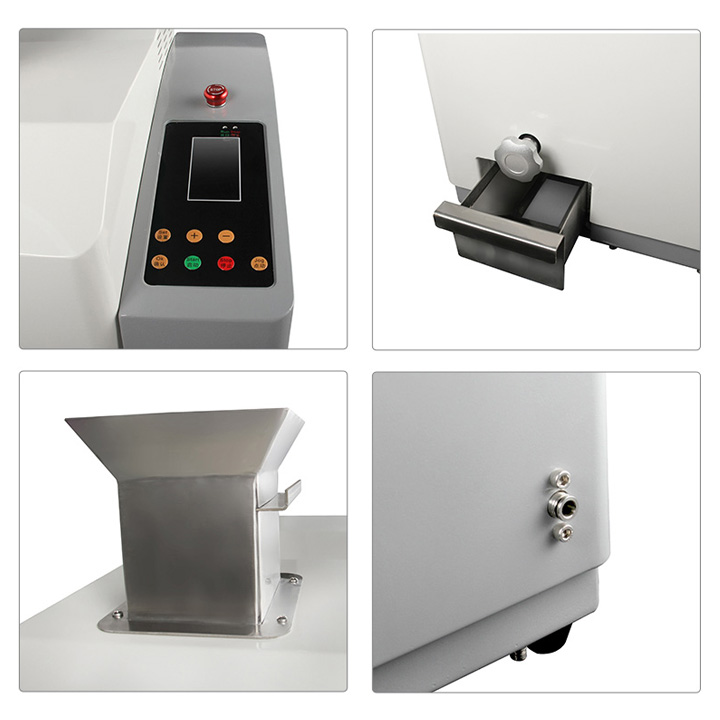

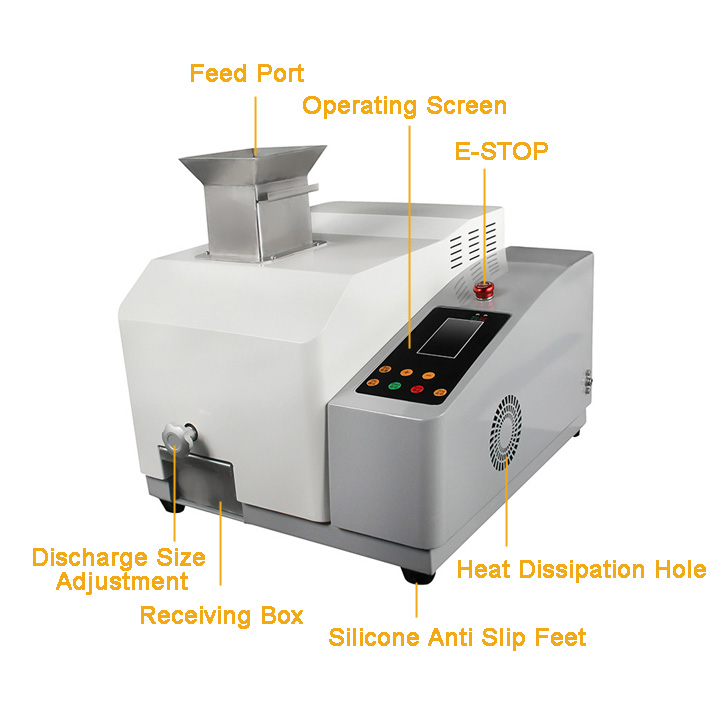

- Compact Size, Significant Impact: Elegant appearance, small footprint, easy to transport, fine particle output; a valuable assistant in the laboratory.
- Control Panel: Allows selection of operating programs, flexible adjustment of running time, and functions such as start, stop, and jog.
- Stainless Steel Feeding Chute: Precision-polished stainless steel for durability; adjustable knob to regulate the feeding size.
- Stainless Steel Receiving Frame: Acid and alkali resistant; corrosion-resistant; made of stainless steel for long-lasting durability.
- Vibration Motor: Utilizes high-strength shock-resistant cast iron bearings for a long lifespan, low noise, and easy maintenance.
- Emergency Stop Button: In case of emergencies during machine operation, the emergency stop button allows for immediate braking.
Specifications:
| Model | Feed port size | Feed size | Discharge size | Throughput | Power | Weight | Dimension(mm) | Material of board | Crushing Hardness |
| MT-10S |
100×70(mm) |
<30mm |
1-10mm |
30kg/h |
1.5kw |
95kg |
500×600×600 |
Corundum | ≤Mohs 5.0 |
| MT-10M | Manganese steel | ≤Mohs 7.0 | |||||||
| MT-10Y | Zirconium oxide | ≤Mohs 7.5 | |||||||
| MT-10T | Tungsten carbide | ≤Mohs 9.0 |
Application Fields:
For laboratory clean crushing in industries such as: electronics, ceramics, polycrystalline silicon, lithium batteries, three primary color fluorescent powder battery, rare earths, metallurgy, chemical, geology, scientific research, and other sectors.
Also suitable for crushing material samples in preparation across various industries.
