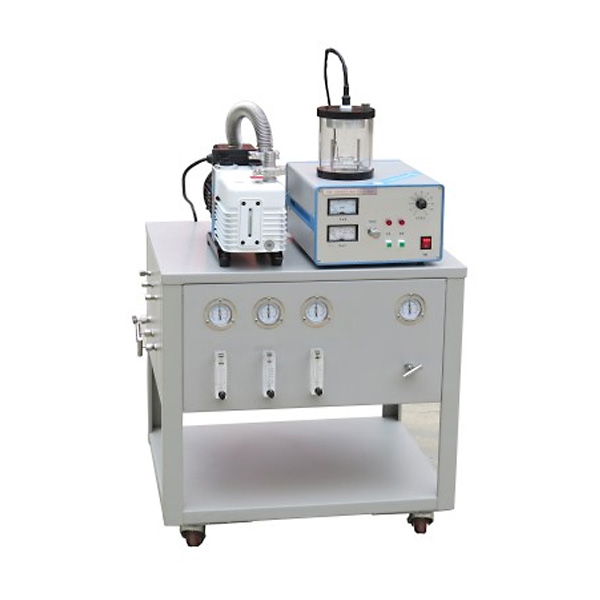

LJ 10 Ion Sputtering Coater with Gas Flow Controller for SEM Sample Preparation

LJ 10 Ion Sputtering Coater with Gas Flow Controller for SEM Sample Preparation

Introduction:

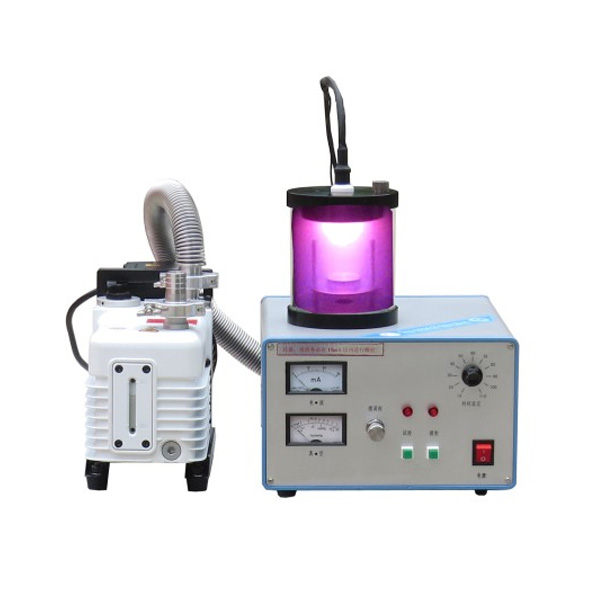

The LJ 10 Ion Sputtering Coater is designed for sample preparation in scanning electron microscopy (SEM), features a simple structure and easy operation. It can perform ion sputtering on SEM samples without requiring high vacuum levels, making it an essential tool for coating SEM samples.

Features and Benefits of Ion Sputtering Coater:

1. Equipped with a 4C silent vacuum pump for noise reduction and improved experimental experience.
2. Includes vacuum gauge and sputtering current meter for real-time monitoring of instrument status.
3. Features edge rubber sealing ring to prevent “glass bell jar edge collapse” phenomenon, ensuring long-term use without affecting vacuum level in the sputtering chamber.
4. Equipped with sputtering current controller and miniature vacuum valve. Combined with automatic control circuitry, it enables easy control of chamber pressure, ion current, and selection of ionization gas for optimal coating results.
5. Comes with a standard Φ58mm x 0.12mm large-size pure gold target for extended sputtering range.

Technical Specifications of Ion Sputtering Coater:

1. Vacuum chamber dimensions: Φ125(113)*126mm
2. Sample stage size: Φ40mm
3. Adjustable sample stage height: 65mm
4. Gold target dimensions: Φ58*0.12mm
5. Vacuum measurement: Pirani gauge
6. Vacuum protection: Equipped with micro-inflation valve for adjusting working vacuum to 20Pa
7. Working chamber gas medium: Air or argon, with dedicated argon inlet and micro-inflation adjustment
