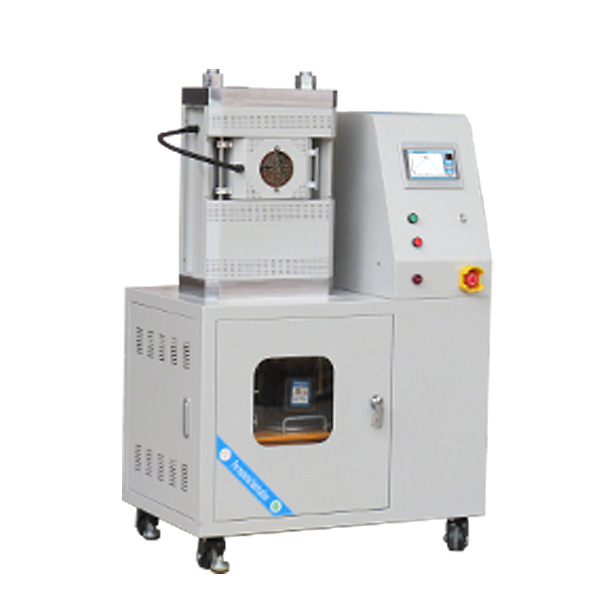

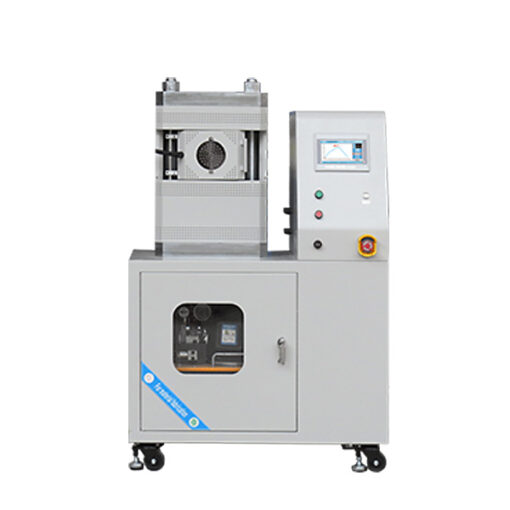

Detachable Hot Press Furnace
Introduction:
This hot press furnace adopts a detachable design, and the pressurization and heating modules can be placed inside a glove box for operation. The thermocouple is front-mounted, facilitating operations within the glove box. When setting temperature and pressure, input the inner diameter of the pressure mold, allowing real-time and precise observation of the material’s temperature and pressure data.
It uses resistance heating, and the hydraulic oil pump is controlled by a frequency converter for more precise pressure control.
This intelligent hot press furnace is mainly composed of three parts: sintering system, electrical control system, and hydraulic system. The furnace lining uses high-purity alumina lightweight fiber materials, and the control system adopts an advanced PLC + touchscreen control system for simpler and more convenient operation. The control mathematical model utilizes advanced PID self-learning fuzzy control, maintaining temperature control accuracy within ±1℃.
Features and Benefits:
- Pressure output is controlled by PID, with automatic pressure compensation.
- Utilizes advanced PID self-learning fuzzy control for high temperature control accuracy, maintaining it within ±1℃.
- Frequency converter control for more precise pressure control.
- The furnace lining uses high-purity alumina lightweight fiber material, providing better insulation and energy efficiency.
- Data storage function, capable of saving important sintering parameters for up to 30 days (with the furnace running 8 hours per day).
- Formula function, can store more than 100 pre-set formulas.
- Multiple safety features to ensure a safer user experience.
- Networking function, through RJ45 interface, using TCP/IP protocol, enabling system connection with an upper computer (requires installation of corresponding software on the upper computer).
Technical Parameters:
Model | RYO-80TIY9-80 | ||
Power supply | 380V/50HZ | ||
Temp accuracy | ±1℃ | ||
Pressure compensation | PID control, automatic pressure compensation for leaks. | ||
Pressure control accuracy | ±0.1MPa with a 10MPa | ||
Rated power | 3KW | ||
Temperature sensing element type | K-type thermocouple 150mm | ||
Max.temp | 1150℃ | ||
Heating zone size | φ80*100mm | ||
Furnace dimensions | L950*H1450*D650mm | ||
Recommended heating rate | ≤10℃/min (for alumina molds: ≤5℃/min) | ||
Furnace details | This part can be separated and placed inside a glove box for operation. | ||
Match the pressing mold and the hot pressing zone. | Stainless steel molds and alumina molds are placed in the heating zone for analysis and research | ||
Control system | 1.Setting sintering process curves: dynamically display and set curves, the equipment can pre-store multiple process curves, and each curve can be freely set. 2.Scheduling sintering, achieving unattended sintering process curve sintering. 3.Real-time display of sintering power, voltage, and other information, record sintering data, and export for paperless recording. 4.Enables remote control, real-time observation of equipment status. 5.Temperature correction: the difference between the main control temperature and the sample temperature, nonlinear correction is performed throughout the sintering process. |
||
Weight | Approximately 240KG | ||
Service support | One-year warranty, lifelong support. |
Applications:
Hot press furnaces find applications in various industries and materials processing techniques due to their ability to provide controlled high-temperature and pressure conditions. Here are some common applications of hot press furnaces:
1. Sintering and Consolidation.
2. Powder Metallurgy.
3. Materials Research.
4. Semiconductor Manufacturing.
5. Ceramic Processing.
6. Graphene Synthesis.
7. Composite Material Production.
8. Research and Development.
