Top Quality SY-50-250D High Temperature Circulator
Features and Advantages:
- Circulation pump with stainless steel magnetic drive ensures no leakage at high temperatures.
- Expansion tank made of SUS304 material, offering strong corrosion resistance.
- All pipes in the circulation system are made of SUS304 stainless steel.
- Sealed circulation system prevents the thermal fluid from evaporating and oxidizing easily, extending the service life of the thermal fluid and avoiding environmental pollution.
- Casters with brake devices facilitate easy movement and precise positioning of the equipment.
- Temperature control utilizes PID algorithm for high precision.

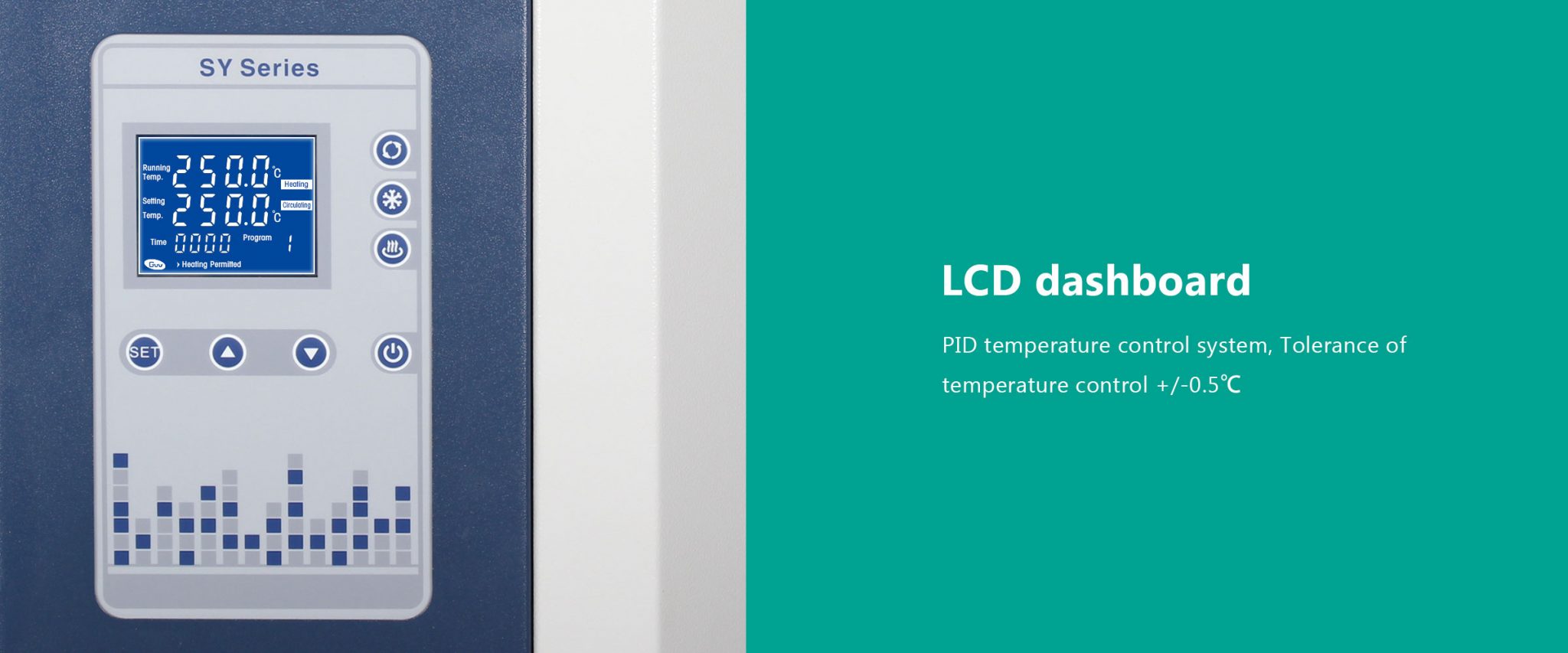

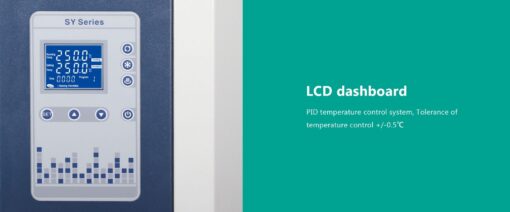

- Button input and LCD display ensure easy operation.

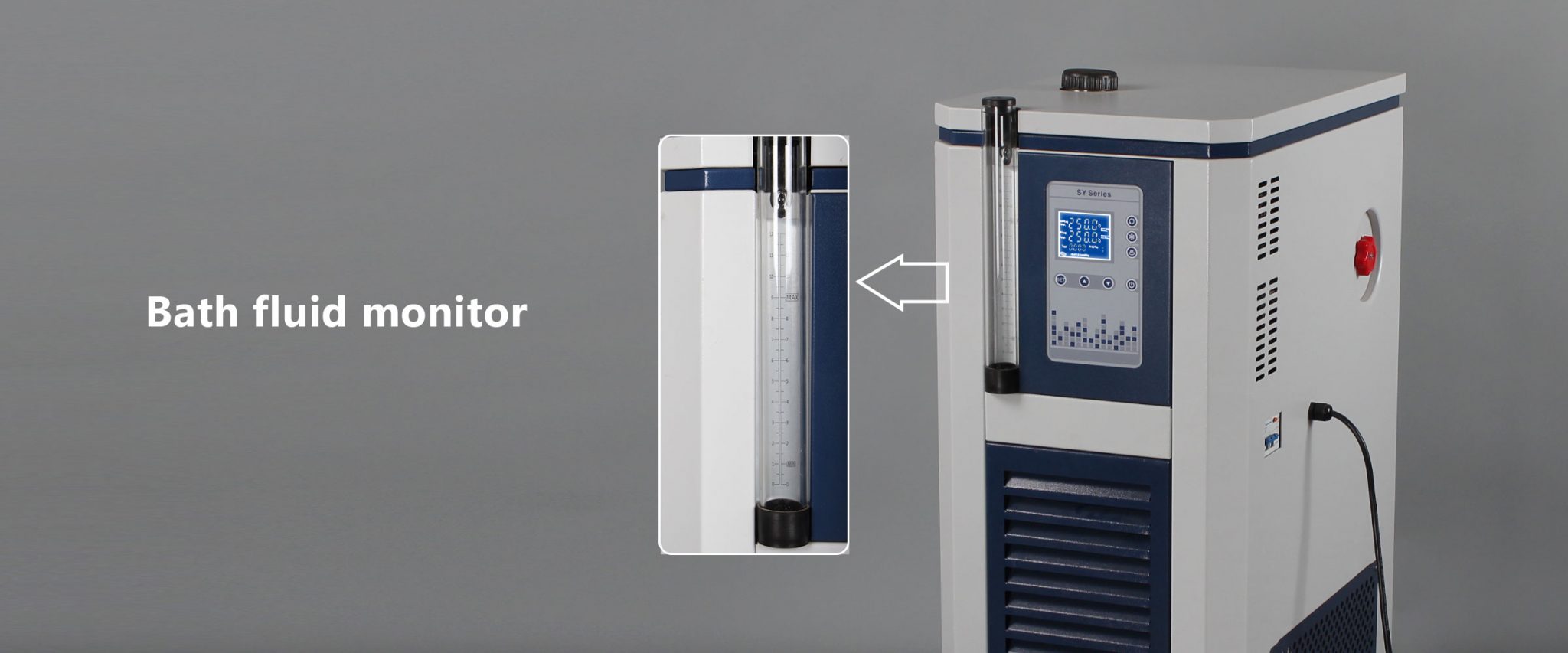

- Equipped with a liquid level display tube to monitor the amount of thermal fluid in the system in real-time, ensuring safe usage.
- Over-temperature protection device cuts off power and alarms immediately when the system temperature exceeds the set limit, ensuring safety.
- Comes with cooling coils that can be connected to an external cooling water source to adjust the temperature of the thermal fluid, meeting process requirements.
- Features RS485 communication function.
Technical Parameters:
| Model No. | SY-50-250D | |
| Operating temperature range (℃) | Room temperature +5-250 | |
| Temperature stability (℃) | ±0.5 | |
| Safety protection functions | Overcurrent, ground fault, overload and over-temperature protection | |
| Heater power (W) | 6000 | |
| Circulation pump | Power (W) | 500 |
| Maximum flow rate (L/min) | 28 | |
| Maximum pressure (bar) | 3.0 | |
| Power source | 3～，380V，50Hz | |
| Ambient temperature range (℃) | 5—35 | |
| Ambient relative humidity (%) | ≤ 70 | |
| Expansion box material | SUS304 | |
| Cooling coil material | Oxygen-free copper tube | |
| External diameter of cooling coil (mm) | Φ10 hose connector | |
| External circulation connector size | R2 3/4 | |
| Conveying pipe and valve materials | SUS304 | |
| Heat carrier filling volume (L) | 13 | |
| Dimensions (mm) | 430W×690D×1225H | |
| Net weight (kg) | 120 | |
| Warranty | 12 months, lifetime support | |
| Certificate | CE, ISO9001 | |
| Matched Jacketed Reactor | 30L~50L | |
Which kinds of industry can use this High Temperature Circulator?
Pharmaceutical plants;
Chemical industry;
Petrochemical industry;
Biological industry
Laboratory research;
Education; etc
Applications of High Temperature Circulator:
This high temperature circulator heat liquids effectively at working temperatures between RT+5 °C to +250 °C. Meeting demanding tasks and strict requirements for research, material testing, and production applications.
