Laboratory High-Temperature High Pressure Tube Furnace
Introduction:

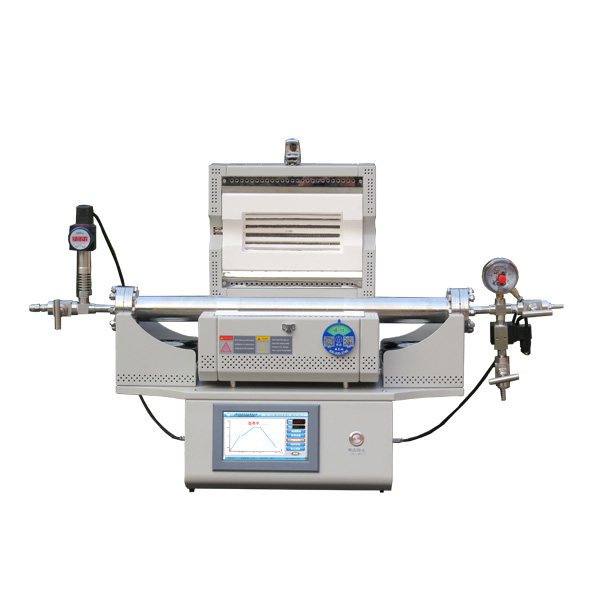

The HP1200 Mini High-Temperature High-Pressure Tube Furnace is equipped with a high-pressure solenoid valve, pressure sensor, and analog safety protection on the flanges. With up to triple safety protection, you can work with peace of mind. When the pressure inside the chamber exceeds the set value, the solenoid pressure release valve automatically opens to vent the gas, maintaining the pressure inside the tube at the desired level. This furnace allows for heat treatment of samples in a high-pressure gas atmosphere, with a maximum temperature of up to 1150°C, making it suitable for research in superconducting and dielectric materials.
Features and Benefits of High Pressure Tube Furnace:
- Triple safety protection ensure peace of mind during operation.
- High circular heater ensures uniform temperature distribution.
- Modular design for durability and ease of maintenance.
- Stabilized pressure setting for safety and reliability.
- Simple one-touch operation with 15 pre-stored work curves for flexible use.
- Real-time monitoring of sintering temperature and power consumption, ensuring safety and energy savings.
Technical Parameters of High Pressure Tube Furnace:
Model | HP1200-2350TIY-D | |||||||||||||
Power Supply | AC220V 1.5KW | |||||||||||||
Temperature and Pressure Allowance | The maximum allowable pressure is dependent on the temperature, as shown in the table below:
High-temperature and high-pressure tube is consumable. Please replace it promptly if any deformation is observed. |
|||||||||||||
Chamber Specifications | 1. Dimensions: Sample constant temperature zone Φ23mm *120mm (custom sizes available upon request).
2. 1/4NPS internal threaded interface installed at the furnace tube gas inlet, with matching high-pressure gas supply tube. 3. The high-temperature and high-pressure furnace tube is made of high-temperature alloy steel, with a TMAX of 1150°C and good ductility. |
|||||||||||||
Furnace Structure | 1. Double-layer structure with an openable design, suitable for customers requiring rapid cooling, with a shell surface temperature of less than 60°C.
2. The inner furnace chamber surface is coated with a nano high-temperature alumina coating to improve heating efficiency. 3. The furnace body is designed to be openable for easy loading of materials and replacement of the furnace tube. |
|||||||||||||

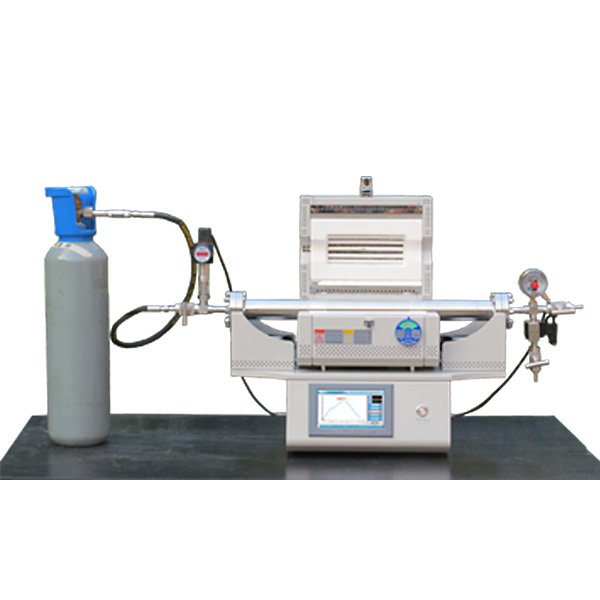

Gas Compatibility and Crucible Use | 1. Compatible with oxidizing, protective, and inert gases such as N2, Ar, and He.
2. To avoid sample contamination, it is recommended to wrap the sample in gold or nickel foil and place it in an alumina or quartz boat before inserting it into the furnace tube for sintering. Do not place samples directly in the high-temperature high-pressure tube without a crucible. |
|||||||||||||
Control System |
|
|||||||||||||
Temperature Accuracy | +/- 1℃ | |||||||||||||
Dimensions and Weight | 800 x 450 x 350mm 45KG | |||||||||||||
Heating Element | Molybdenum-doped iron-chromium-aluminum alloy | |||||||||||||

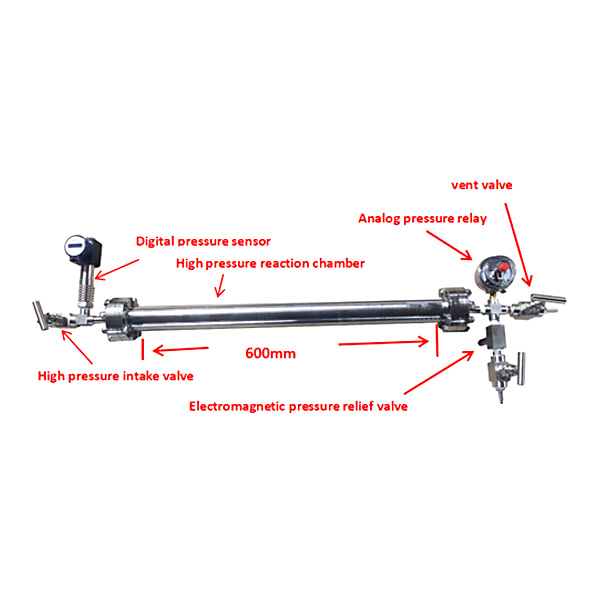

Pressure Detection and Control |
1. The high-pressure chamber is equipped with a pressure sensor connected to the control system, displaying real-time pressure. 2. A high-pressure relief solenoid valve is installed on the flange. When the internal pressure exceeds the set value, the solenoid valve automatically opens to release the gas, maintaining the chamber pressure within the set range. The maximum pressure the solenoid valve can automatically relieve is 15MPa. When using pressures above 15MPa, do not use the solenoid valve to relieve pressure; instead, close the series needle valve and manually relieve the pressure. |
|||||||||||||
Flange Sealing |
|
|||||||||||||
Service Support | 1-year warranty with lifetime support (warranty does not cover consumable parts such as furnace tubes and sealing rings). |
Applications:
The High-Temperature High Pressure Tube Furnace is used in various research and industrial applications, particularly where precise control of temperature and pressure in a gaseous environment is essential. Key application areas include:
- Superconducting Materials Research: The furnace provides the controlled environment needed for synthesizing and annealing superconducting materials, allowing researchers to explore new materials with superconducting properties.
- Dielectric Materials Development: Ideal for the synthesis and treatment of dielectric materials, which are crucial in electronics, telecommunications, and energy storage devices.
- Material Science and Engineering: The furnace is used to explore and develop new materials, particularly those that require specific atmospheres and precise thermal conditions during processing.
- Ceramics and Advanced Composites: Useful in the sintering and treatment of ceramic materials and advanced composites under high-pressure gas atmospheres, enhancing material properties.
- Nanomaterials and Thin Films: Suitable for the controlled growth of nanomaterials and thin films, especially in studies involving high-temperature and high-pressure conditions.
- Chemical Vapor Deposition (CVD): The furnace can be used in CVD processes where high temperatures and controlled atmospheres are needed to deposit thin films and coatings on substrates.
- Thermal Treatment of Metals and Alloys: Applicable in the thermal treatment and annealing of metals and alloys, particularly those requiring a specific gas environment to prevent oxidation or other reactions.
These applications make the HP1200 High-Temperature High-Pressure Tube Furnace a versatile tool in cutting-edge research and development across multiple scientific and industrial domains.
