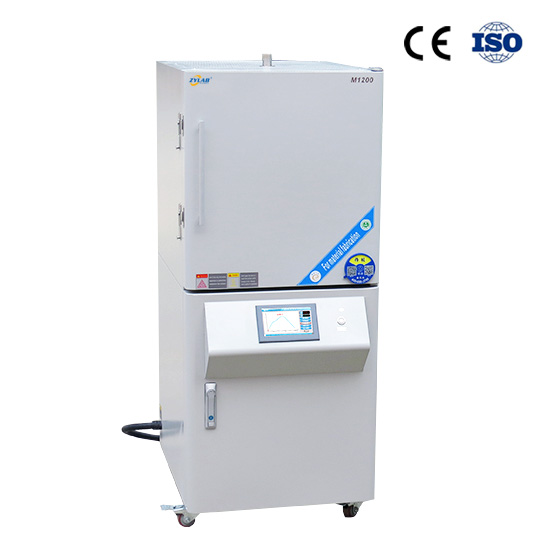

High-Capacity Muffle Furnace 36L Vertical Laboratory Furnace up to 1200°C

High-Capacity Muffle Furnace | 36L Vertical Laboratory Furnace up to 1200°C

ZYLAB High-Capacity Muffle Furnace offers a generous 36-liter chamber volume in a space-efficient vertical design, ideal for laboratories that require processing of large or multiple samples. With a maximum temperature of 1200°C and 43° angled touchscreen controller, it delivers a comfortable user experience and reliable thermal performance for sintering, ashing, and general heat treatment.

Description
SPECIFICATIONS

ZYLAB 36L High-Capacity Muffle Furnace

Introduction

Key Features

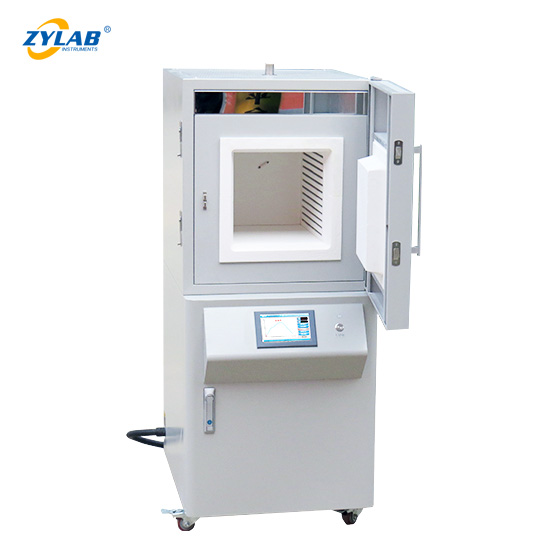

High-Capacity 36L Chamber
Suitable for larger samples or batch processing in lab-scale applications.
Max Temperature 1200°C
Stable working range from RT to 1100°C, suitable for most standard thermal processes.
Ergonomic 43° Angled Control Panel
Designed for optimal visibility and user comfort during operation.
7-Inch Color Touchscreen Controller
Intuitive interface with real-time temperature display, program memory, and precise PID control.
30-Segment Programmable Logic
Enables automatic execution of custom heating profiles for consistent and repeatable results.
Durable Ceramic Fiber Chamber
Offers low thermal conductivity, fast heat-up rates, and improved energy efficiency.
High-Quality Alloy Heating Elements
Acid- and corrosion-resistant for extended service life and clean operation.
Double-Layer Steel Casing with Cooling Fan
Keeps the exterior surface temperature below 50°C to ensure safe operation in lab environments.
Top Exhaust Chimney
Effectively removes gases during ashing, burnout, or decomposition experiments.
Equipped with Casters
Provides easy mobility for flexible use in various laboratory settings.

Applications of High-Capacity Muffle Furnace

High-volume ceramic sintering
Ashing and thermal decomposition of organic and inorganic samples
Heat treatment of metal, composite, or polymer materials
Material research and thermal testing in laboratories
Sample burnout and pre-treatment for analysis
Educational and industrial R&D use

Technical Specifications of High-Capacity Muffle Furnace

Model	M1200-30
Working voltage	380v 50Hz (or according to requirement)
Max. Power	9KW
Maximum Temperature	1200°C (for ≤1 hour)
Continuous Working Temp	1100°C (continuous)
Max Heating Rate	≤20°C/min
Chamber Size	300 × 300 × 400 mm
Overall Dimensions	950 (W) × 1400 (H) × 870 (D) mm
Temperature Controller		Color touchscreen with intuitive GUI (English/Chinese switchable). Embedded OS with smart HMI. Non-linear temperature calibration. Stores up to 15 programs, 30 segments per program. Safety features: over-temp alarm, thermocouple break alert, leakage protection.
Temperature Accuracy	±1°C
Heating Element		Mo-doped Fe-Cr-Al alloy heating wire
Net Weight	160 kg
Safety Notice	Do not open the chamber if internal temp ≥300°C to avoid injury. Small cracks in chamber due to use are normal and do not affect performance.
Warranty & Support	18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support.

Customization Options

Gas Inlet System: For inert gas protection or purge (e.g., argon, nitrogen).
Exhaust Port Enhancements: Optimized gas removal during heating cycles.
Observation Window: Monitor material reactions in real time.
Custom Chamber Sizes: Tailored to unique samples or process needs.

Advantages of ZYLAB Furnaces

Flexible Customization – Designed to meet diverse laboratory demands
Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments
Professional Support – Dedicated technical service and documentation
Efficient Logistics – Timely delivery and global shipment options
