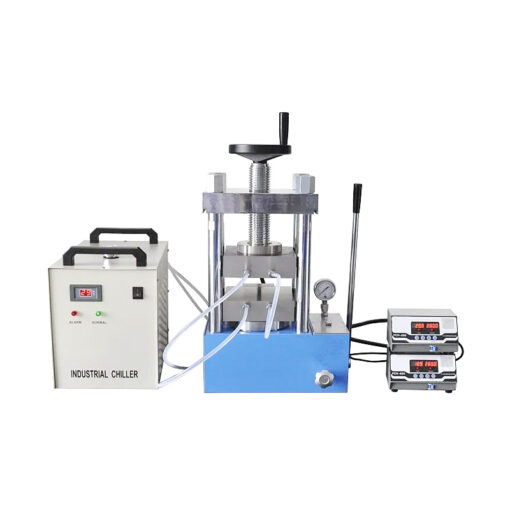

Heating Tablet Press
Introduction:
The maximum temperature of the double-plate Heating Tablet Press can reach 300℃ or 500℃, and the thickness of the pressed film is 50um-500um.It is suitable for the study of polymer materials and other thin film materials, and can be used as a small plate vulcanizer.
It is suitable for rubber, plastics, leather, chemical industry, pigments, electronics, electrical appliances, textiles, hardware and other fields.
It is a matching equipment for engineering technicians of colleges and institutes to carry out spectral detection and qualitative analysis. The machine can be used as a multi-purpose machine with suitable dies. It can be used as an ordinary manual press. At the same time, it can also be used as a press in other work situations where the corresponding pressure is required. It can also be used as a press to test the pressure resistance of various objects and so on.
Main Features:
1. Temperature Control: Precise temperature regulation for heating the material during the tablet compression process. Adjustable temperature settings to accommodate different materials and formulations.
2. Electric Heating System: Integration of an electric heating system to provide consistent and controllable heat during tablet formation. Efficient and rapid heating capabilities for improved production speed.
3.Versatility: Capability to handle a variety of materials, including pharmaceutical powders, ceramics, or other materials that may benefit from controlled heating.
4. Precision Compression: Accurate and uniform tablet compression to ensure consistent tablet weight, thickness, and hardness. Capability for precision adjustments to meet specific tablet quality requirements.
5. Safety Features: Built-in safety mechanisms to prevent overheating and ensure operator safety. Emergency stop buttons and safety interlocks to comply with industry regulations.
6. User-Friendly Interface: Intuitive control panel or interface for ease of operation and monitoring. Digital displays for temperature, pressure, and other critical parameters.
Specifications:
| Product Name | Lab Heating Tablet Press |
| Model | HP-600D |
| Pressure range | 0-30T(0-34MPa) |
| Piston diameter | φ150mm Chrome plating cylinder |

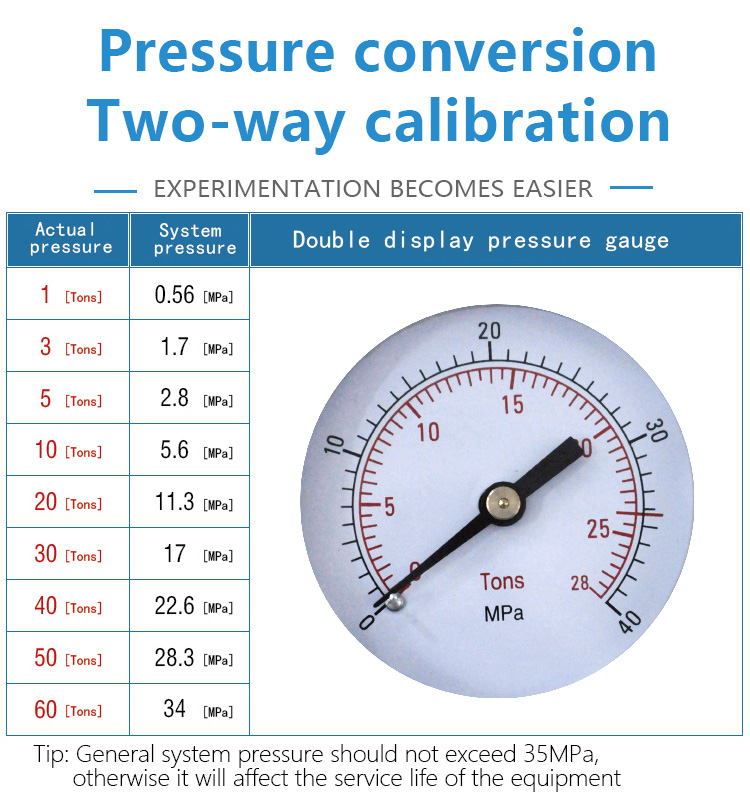

| Standard pressure gauge type | Indicator/pointer type, Ton and Mpa double-scale display |
| Optional pressure gauge | Digital display
0.00-40.00 MPa, accuracy 0.01 MPa |
| Pressurization method | manually pressurization |

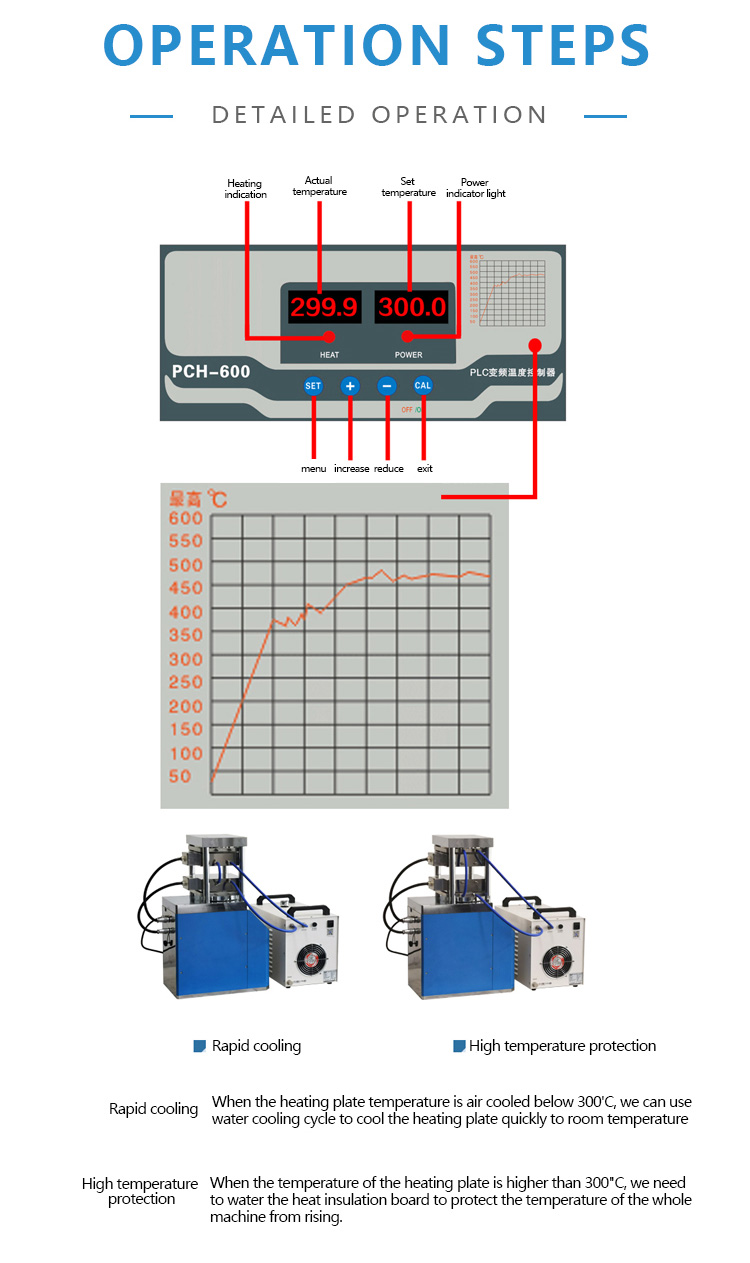

| Temperature controller | Dual PLC programmed temperature controller |
| Temperature control range | RT-600.0℃ |
| Heating temperature of die | RT-300.0℃
(can be customized to 500℃ high temperature die) |
| Temperature control accuracy | 0.1℃ |
| Insulation plate | Imported insulation plate |

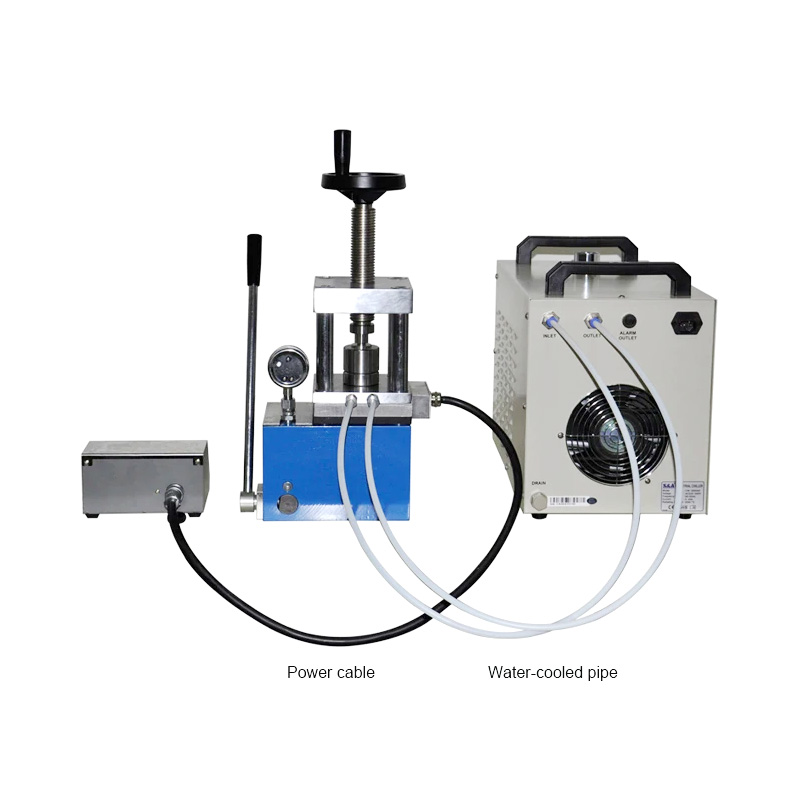

| Cooling mode | Water cooling (water cooler is optional) |
| Overall structure | Integral structure patented technology, no sealed connection of equipment, reduce oil leakage point |
| Heating die size | Double Heating Plate, 180 x 180mm or 200 x 200mm(also supply other sizes) |
| Power supply power | 220V/1000W |
| Main machine dimensions | 405 x 260 x 525mm (excluding optional parts) |
| Overall dimensions | 970 x 470 x 525mm |
| Weight | 180kg |
Also Supply Other Related Products:
| Hydraulic press type | Manual
hydraulic press |
Electric hydraulic press | Automatic hydraulic press | Manual Hot platen hydraulic press | Automatic Hot platen hydraulic press | CIP press |
| Selectable standard parameter | 3T/5T/
12T/15T/ 24T/30T/ 40T/60T |
20T/30T/
40T/60T
|
20T/30T/
40T/60T/ 100T |
24T/30T/60T
Platen size: 100×100mm 180×180mm 200×200mm |
25T
Platen size: 180×180mm 200×200mm 300×300mm |
12T/20T/
40T/60T |
Applications:
The Heating Tablet Press is mainly used in some laboratories and units that need to sample or test powder samples, particle samples, plastic films and other solid samples at high temperature and high pressure. After being heated and pressurized, the chemical stability of the sample particles or powder is improved, which is not easy to be broken, which is conducive to cutting and preservation.
It is used for spectral inspection by engineering and technical personnel of colleges and universities and research institutes The matching equipment suitable for qualitative analysis. The machine can be used for many purposes, equipped with suitable pressure mold, and can also be used as a common manual press.
At the same time, the machine can also be used in other working occasions requiring corresponding pressure, as a press, testing the pressure resistance of various objects, etc.
