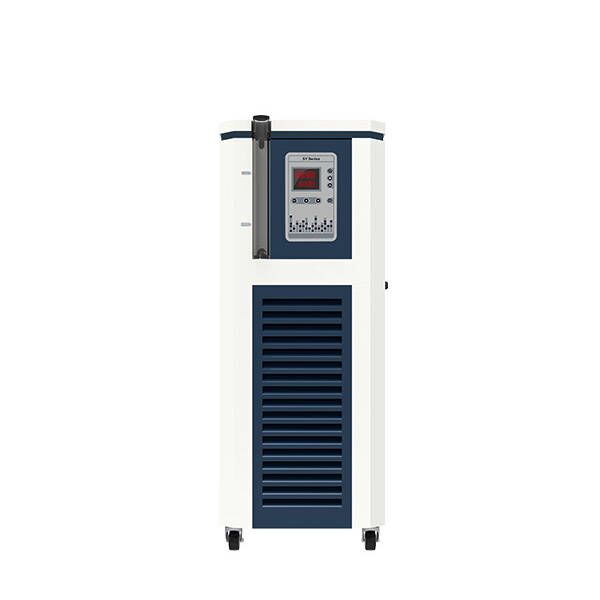

Heating Circulator (Temperature range RT+5~250℃)
Introduction:

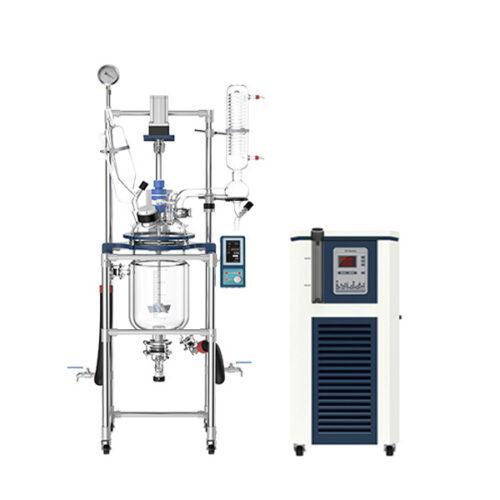

This Heating Circulator is a water-cooled type heating circulator. The bath fluid is heated up by electricity and transferred to reactors by circulating pump, which can be applied to pharmaceutical plants, chemical industry, petrochemical industry, laboratory research, etc.
Main Features:

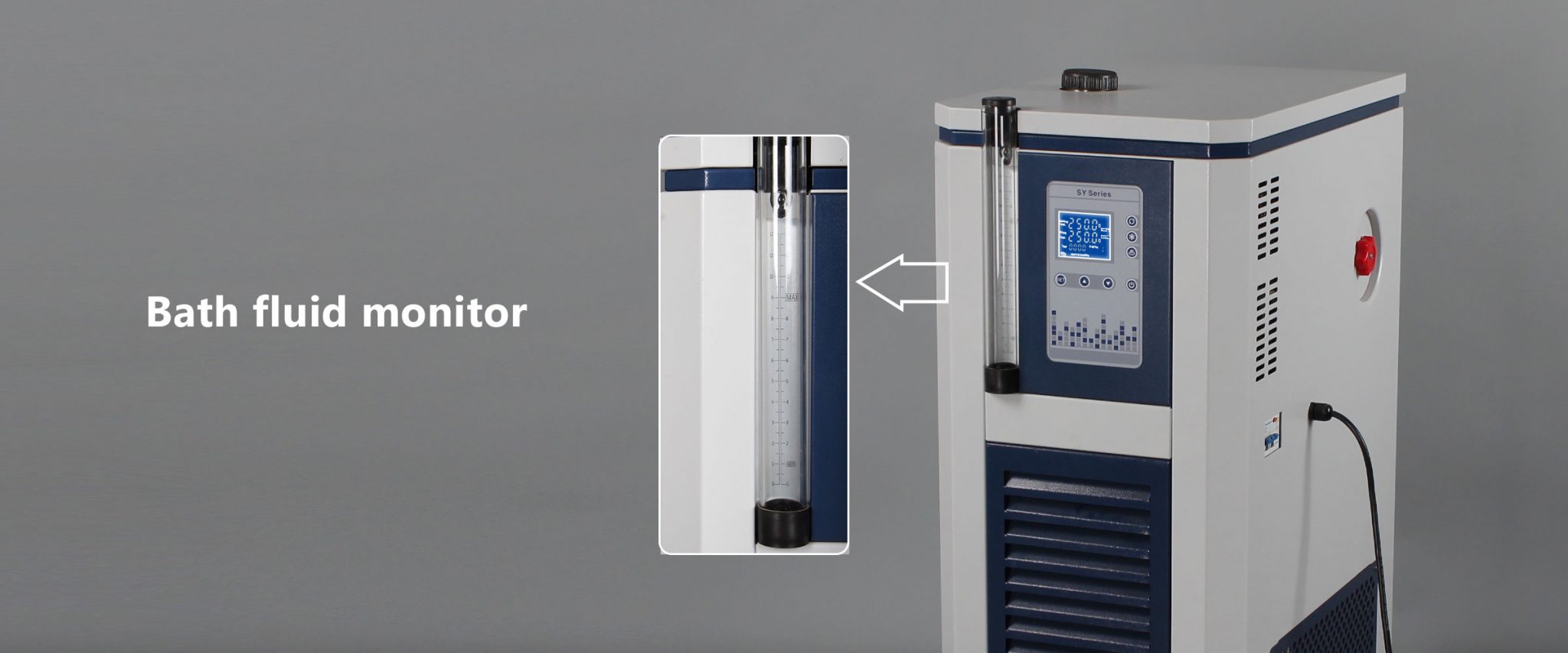

1. Designed with exhaust valve, which makes it easy and smooth when filling in bath fluid.
2. Using oil as bath fluid will extend the service life of circulator.
3. Over-temperature alarm, overload protection, over-current protection.

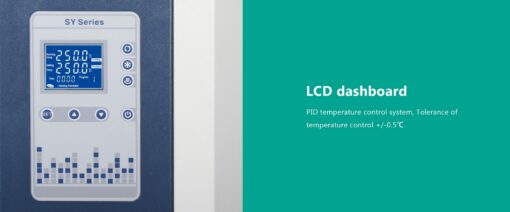

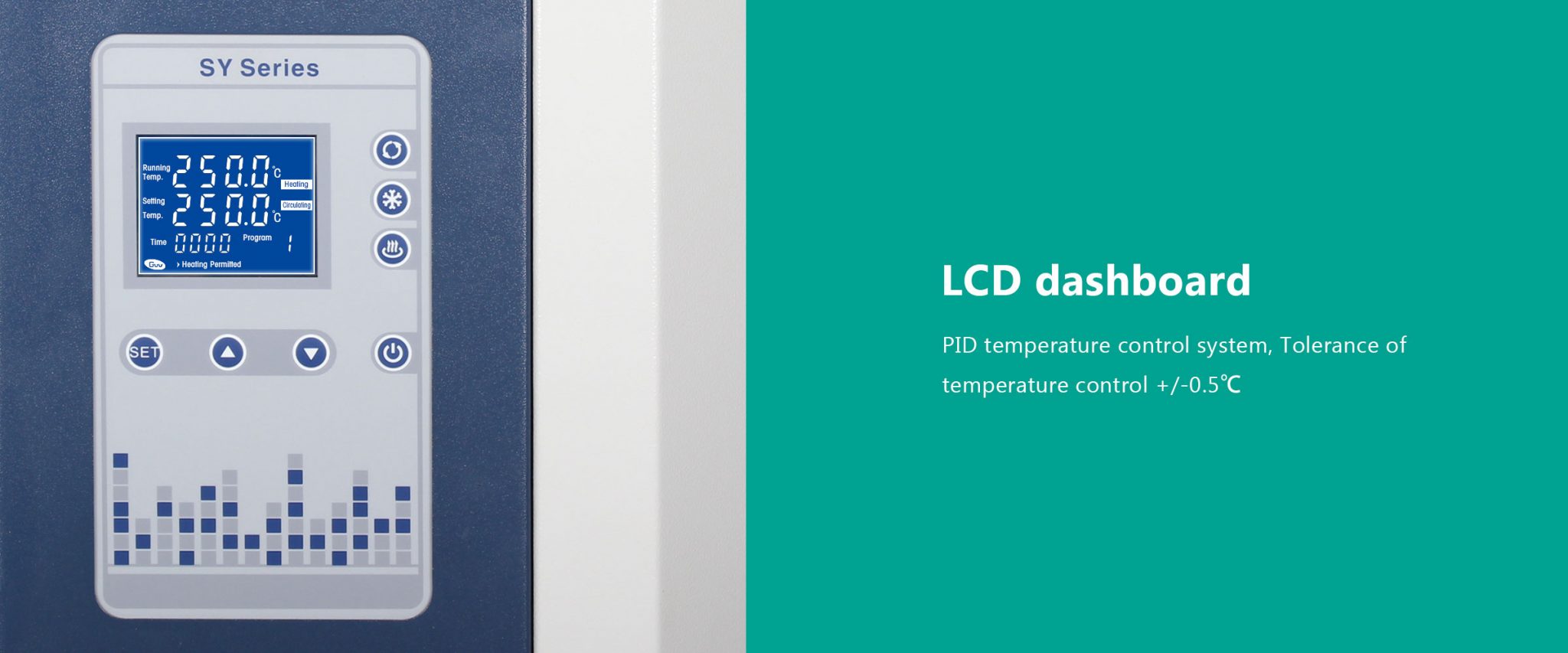

4. Intelligent PID control with high precision.
5.Bath fluid tank is made of anti-corrosive stainless steel.
6.Heating bath fluid circulates in a closed system, which extends its service time.
7.Tap water cooling design can down the high temperature bath fluid rapidly.
Main Specifications:
Model | SY-20-250 | SY-50-250 | SY-100-250 |
Max. temperature | 250℃ | 250℃ | 250℃ |
Working Temperature Range | RT+5~250℃ | RT+5~250℃ | RT+5~250℃ |
Temperature Stability | +/-0.5℃ | +/-0.5℃ | +/-0.5℃ |
Power Supply | 220-240V~ 50Hz | 3~,380V,50Hz | 3~,380V,50Hz |
Pump Power | 370W | 370W | 1500W |
Max Flow Rate | 42L/min | 42L/min | 100L/min |
Max Pressure | 2.8bar | 2.8bar | 1.5bar |

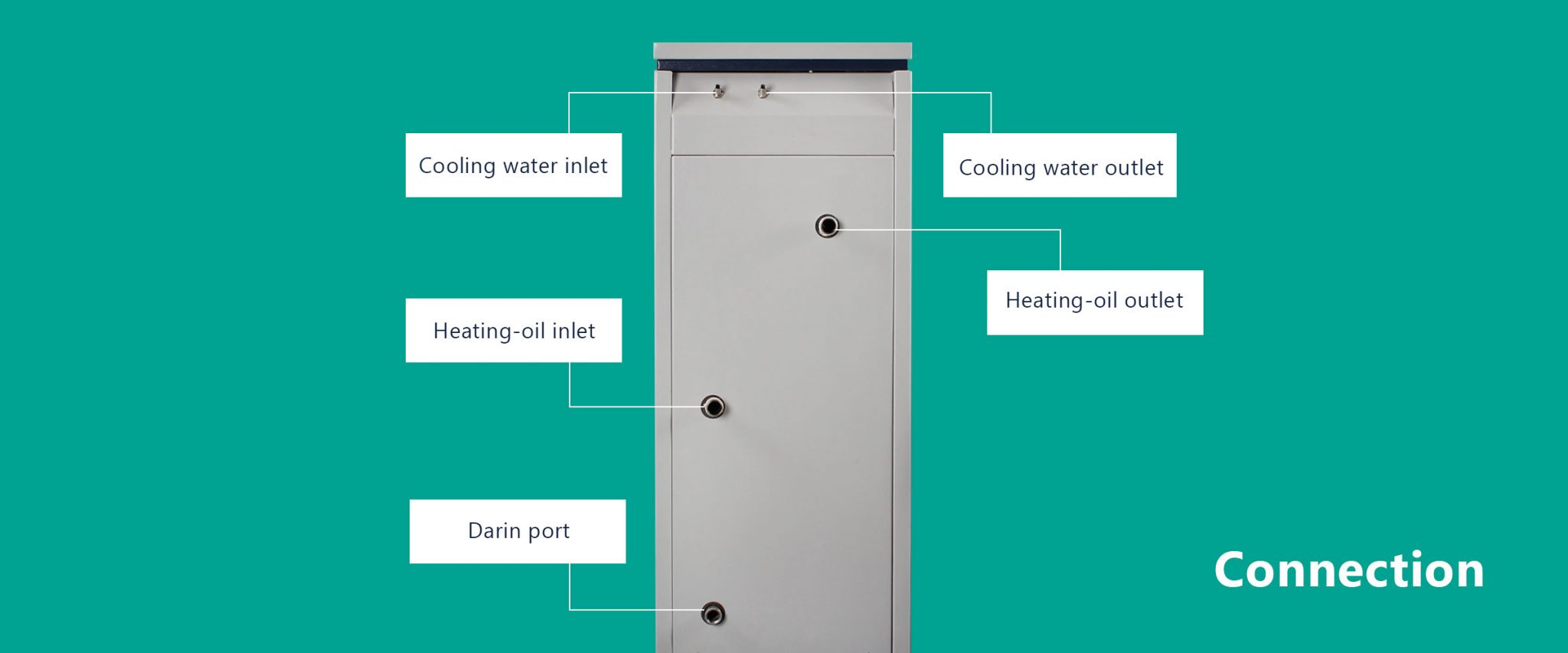

Connection Size | 3/4″ | 3/4″ | 3/4″ |
Bath Fluid
Filling Volume |
9L | 13L | 17L |
Heating Power | 3W | 6W | 12W |
Dimensions(mm) | 430W*690D*1075H | 430W*690D*1225H | 640W*940D*1585H |
Net Weight | 60kg | 120kg | 185kg |
Which kinds of industry can use this Heating Circulator?
Pharmaceutical plants;
Chemical industry;
Petrochemical industry;
Biological industry

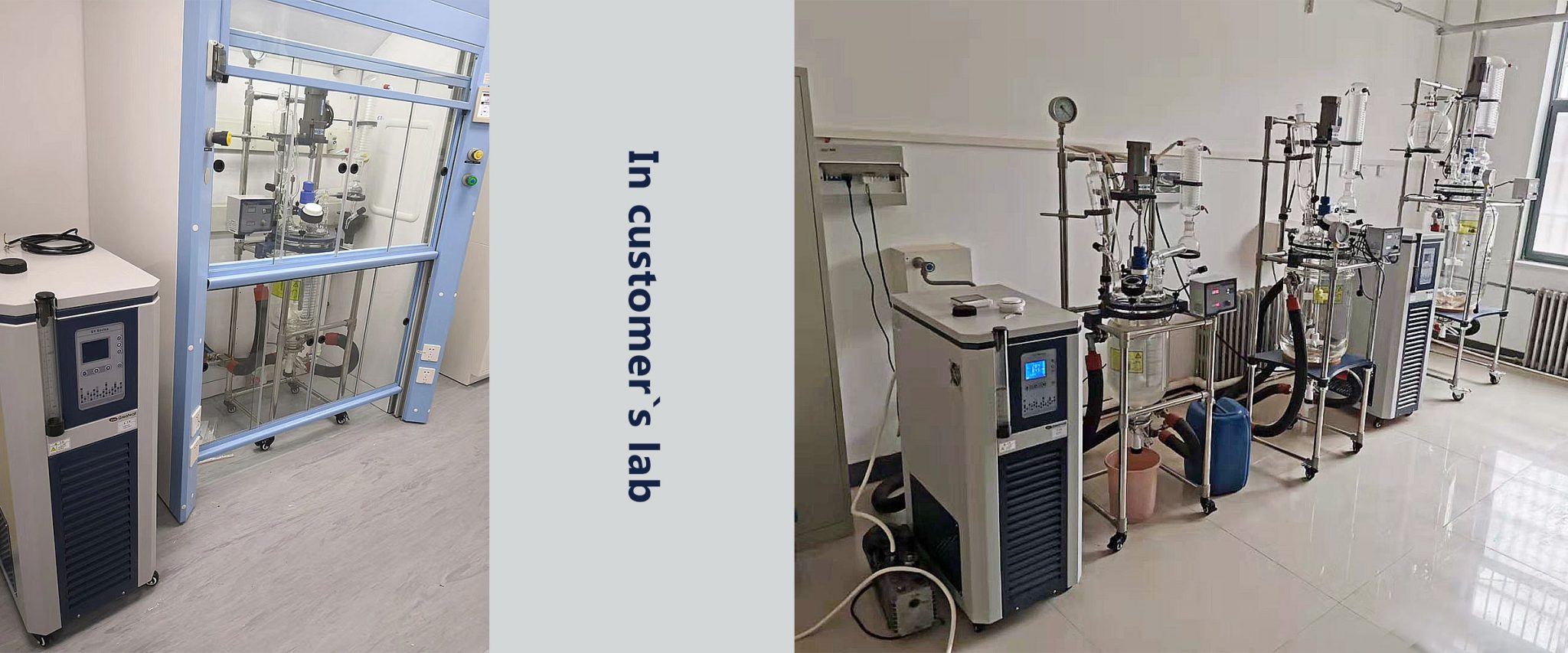

Laboratory research;
Education; etc
Applications of Heating Circulator:
This heating circulators heat liquids effectively at working temperatures between RT+5 °C to +250 °C. Meeting demanding tasks and strict requirements for research, material testing, and production applications.
