Lab Gas Flow Control Gas Mixer with Vacuum System

Lab Gas Flow Control Gas Mixer with Vacuum System

Introduction

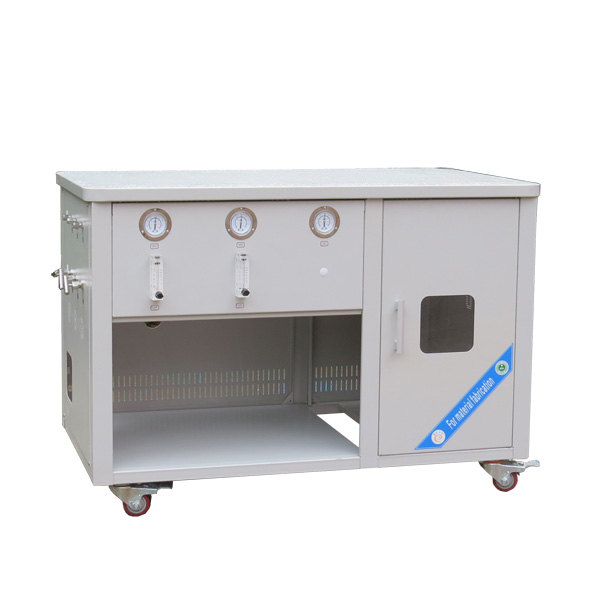

The Gas Mixer with Vacuum System is suitable for low-pressure, small flow rates, and the mixing and continuous supply of various gases, in conjunction with a vacuum system. Gas pressure and flow rate data are visually readable on the control panel, offering easy operation and precise flow control, effectively managing gas consumption. It can be used in combination with tube furnaces and other equipment for research experiments such as CVD (Chemical Vapor Deposition) and atmosphere sintering.

Features and Benefits

1. Attractive appearance, strong practicality, and easy operation;
2. Made of corrosion-resistant, polished stainless steel pipes, or corrosion-resistant, aging-resistant PTFE pipes;
3. Reliable gas mixing device, ensuring uniformity of gas mixture;
4. Standard-sized connectors, ensuring versatility;
5. Multi-channel gas mixing can be customized upon consultation.

Technical Parameters of Gas Mixer with Vacuum:

Model	ZYLAB-2FC	ZYLAB-3FC			ZYLAB-4FC
Flowmeter Type	Float Flowmeter Controller
Piping Diagram				Uses clean polished corrosion-resistant stainless steel pipes or corrosion-resistant, aging-resistant PTFE pipes (optional)
Inlet Interface Quantity (Multi-channel customizable)	2		3			4
Interface Size	1/4″ double ferrule connector
Flowmeter Range	20-200ml/min；60-600ml/min；0.1-0.8L/min and other specifications available
Pressure Difference Range	0-0.15MPa
Net Weight	30KG
Usage Instructions	1.      Ensure that the pressure inside the pipeline is <0.15MPa; 2.      After connecting the gas cabinet to the cylinder, use soap water for leak testing.
Service Support	1-year warranty, lifetime support (warranty does not cover consumable parts).
