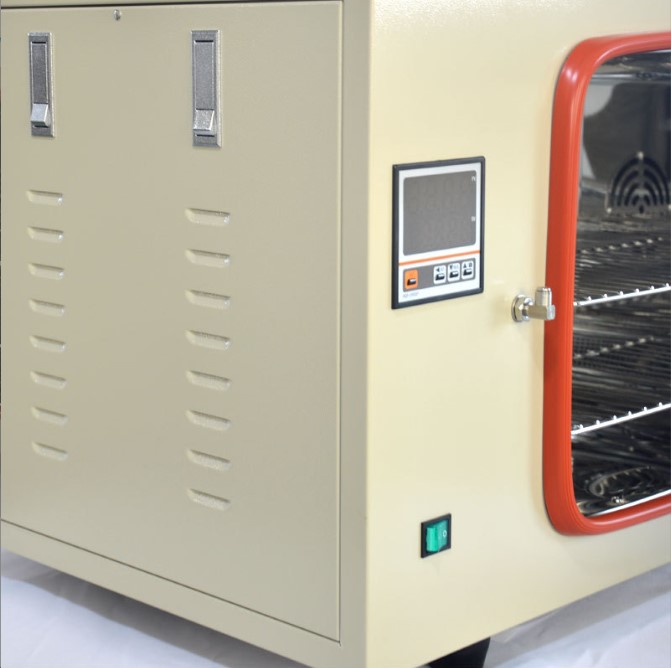

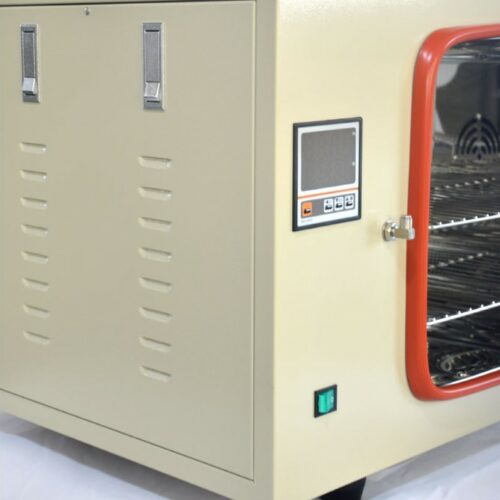

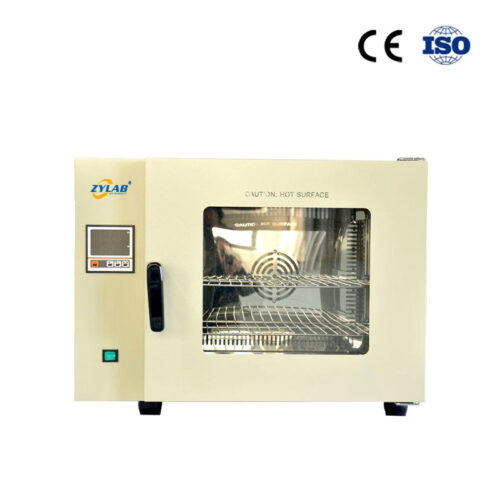

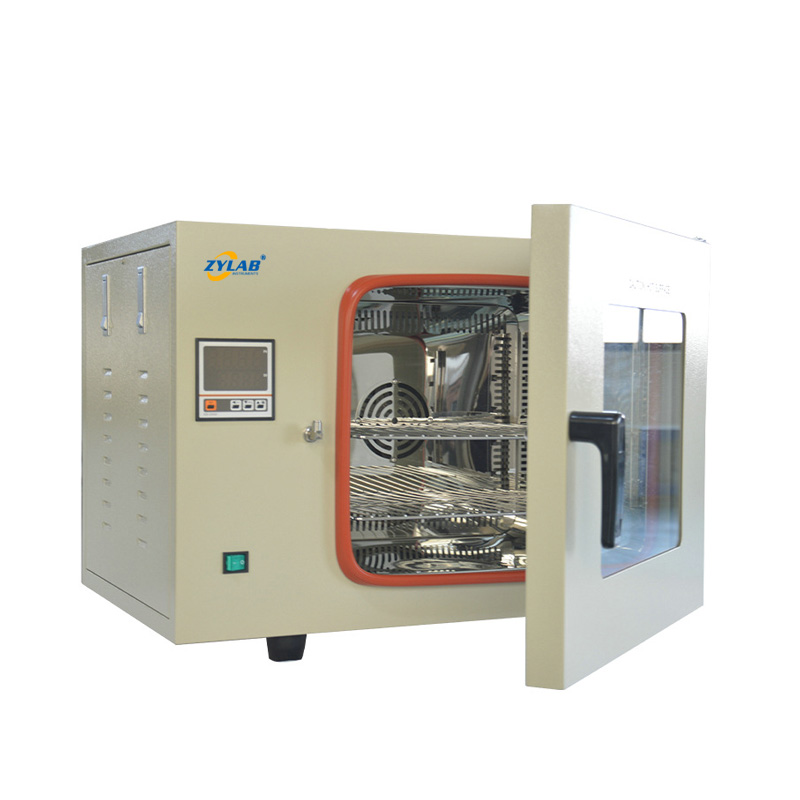

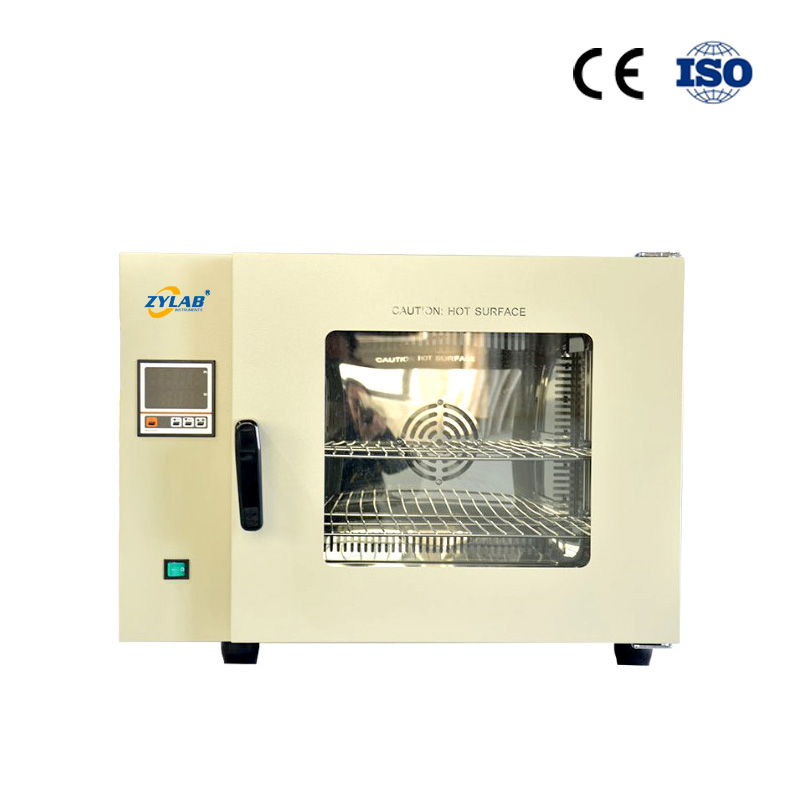

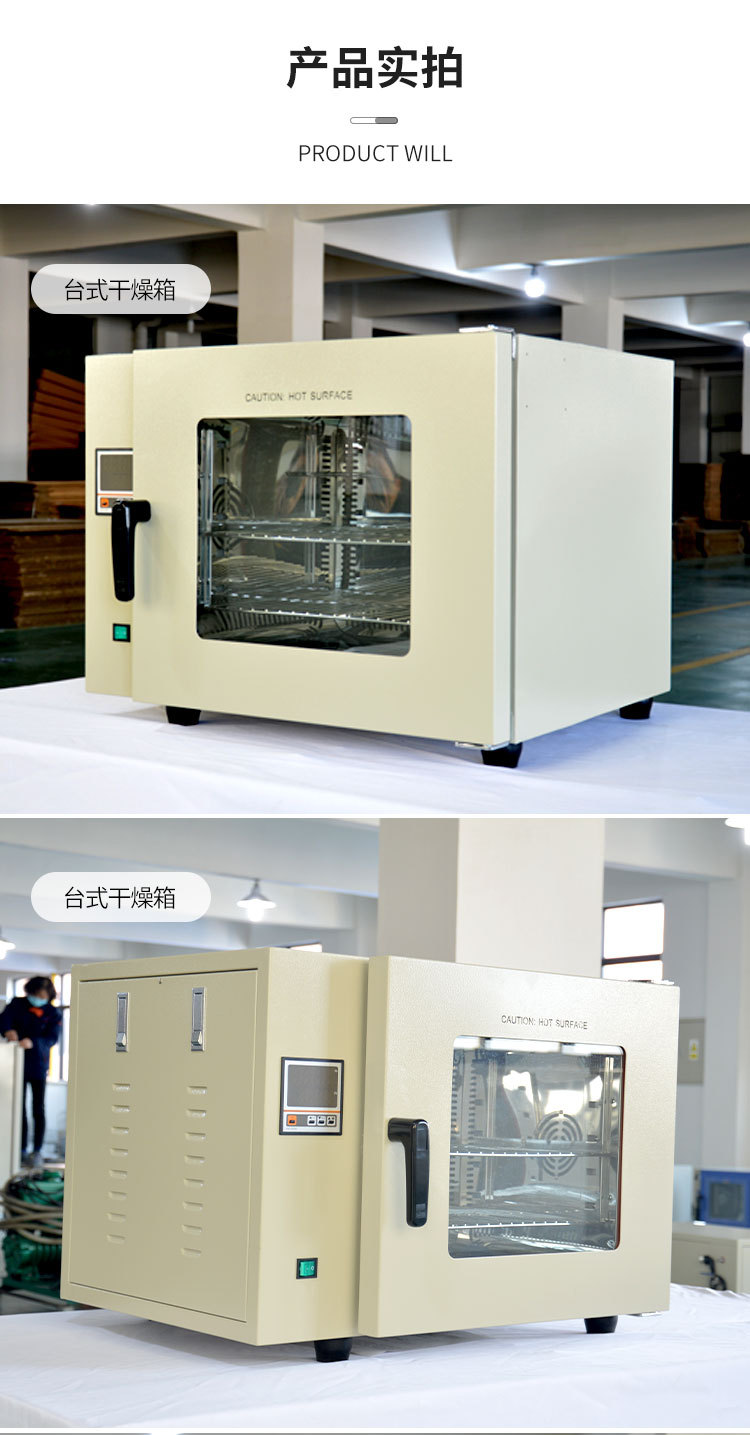

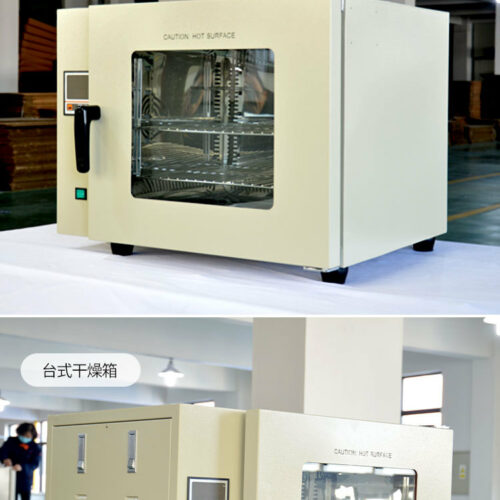

High Quality Lab Desktop 16L Forced Air Drying Oven
Introduction:
Forced air drying oven is a type of laboratory oven used for drying and heating samples. These ovens use a fan to circulate heated air throughout the oven’s interior, which facilitates faster and more uniform drying or heating of samples.
This electrothermal constant temperature forced air drying oven not only meets the drying needs, but also produces fatal interference to microorganisms, such as oxidation, protein denaturation, electrolyte concentration and so on. It can kill the residual microorganisms in a certain time.
Applications:
The forced air drying oven is widely used in biochemistry, chemical pharmaceuticals, medical and health care, agricultural research, environmental protection and other research and application fields.
Drying of glassware, thermal denaturation and hardening of samples, removal of residual moisture from samples, sterilization of microorganisms by dry heat from glassware, preheating before heating, hardening or softening of food and chemicals during heating, and removal of moisture prolong the storage time and construction of food under harsh conditions Drying, baking, disinfection, sterilization and denaturation of building materials and electronic components.
Detail Characteristics:
1. Setting parameters and actual parameters can be clearly displayed.
2. High response thermal sensor and environment scanning microprocessor chip constitute high precision and intelligent temperature control characteristics.
3. With parameter memory function, it can avoid cumbersome settings.
4.Omni-directional three-dimensional heating, fan forced circulation, high-precision temperature regulation to ensure good indoor temperature uniformity.
5. When the working temperature deviates from the set temperature, it can automatically alarm.
6. Setting the timing function, from 1 minute to 9999 minutes of any set working hours, the end of the timing is to close the settings display window.
7. The electric oven has automatic power failure protection.
8. LED clearly displays the setting temperature, the measured temperature and the timing time, and the parameters can be switched arbitrarily.
9. Automatic stop, timing operation, caller recovery, parameter memory, temperature display correction.
10. Independent over temperature protector, sensor fault alarm, and upper limit temperature alarm.
11. Reasonable design of air duct structure and design of air circulation.
12. Mirror stainless steel inner liner, tempered glass window, stainless steel electric polishing shelf in the workroom, shelf can adjust the height and shelf number according to user’s requirements.
13. Unique geometric cavity cleaning design ensures the active and perfect protection for samples.
14. Has the function of power failure recovery, when the external power supply is restored to supply, the equipment can automatically follow the original set program to quickly constant temperature.
15. Safe temperature glass windows that meet European safety standards.
16. Has a modular design of the upper limit temperature tracking function, when the measured temperature deviates from the allowable range, the instrument sound (light) alarm and automatically cut off heating.
Technical Parameters:
| Model | ZYLAB-9013AS | ZYLAB-9023AS |
| Capacity | 16L | 25L |
| Power Supply | 220V 50/60HZ(110V 60HZ) | |
| Temperature Rang | RT – 200.C | |
| Temp Fluctuation | ± 0.5.C | |
| Follow-up Alarm | ± 5.C | |
| Timing | With timing function | |
| Power | 500w | 700w |
| Working Space
(chamber size) (mm) |
250*250*250 | 300*300*275 |
| Outer Dimension(mm) | 530*406*390 | 580*456*415 |
| Net Weight(Kgs) | 20 | 30 |
| Gross Weight(Kgs) | 30 | 50 |
Which kinds of industry use this Forced Air Drying Oven?
Lab forced air drying ovens are commonly used in industries that require precise control of temperature and humidity for drying, curing, and heat treatment processes. Some of the industries that typically use lab forced air drying ovens include:
- Research and Development: In research and development laboratories for drying and curing samples and specimens, as well as for testing and analysis.
- Biotechnology: For drying and sterilizing laboratory equipment and supplies, as well as for processing biological materials.
- Medical: In medical laboratories for sterilizing medical instruments and equipment, as well as for drying and curing medical products.
- Environmental: In environmental testing and monitoring for drying and curing soil and water samples, as well as for testing air filters and other environmental materials.
- Materials Science: In materials science for drying and curing materials, such as polymers, ceramics, and composites.
- Electronics: In electronics for drying and curing electronic components, such as circuit boards and semiconductors.
These are just a few examples of industries that use lab forced air drying ovens. Any industry that requires precise control of temperature and humidity for drying, curing, or sterilization processes can benefit from using a lab forced air drying oven.
Detail Applications of Lab Forced Air Drying Oven:
- Drying of samples: Commonly used to dry samples that need to be weighed, analyzed, or stored. Samples may include soil, wood, food, textiles, or any material that needs to be free of moisture before further testing or processing.
- Sterilization: For sterilizing lab equipment or glassware, particularly when high temperatures are required to kill microorganisms.
- Aging tests: To perform aging tests on materials such as plastics or rubber, where the material is exposed to high temperatures for an extended period to determine its durability.
- Curing: In manufacturing, curing refers to the process of hardening or solidifying a material through chemical reactions. Forced air drying ovens can be used for curing materials such as adhesives, coatings, and composites.
- Heat treatment: For heat treatment of metals, which involves heating the metal to a specific temperature for a set amount of time to achieve desired properties such as increased strength or hardness.
Overall, a lab forced air drying oven is a versatile piece of equipment that can be used in many laboratory applications where moisture removal or high-temperature treatments are required.
