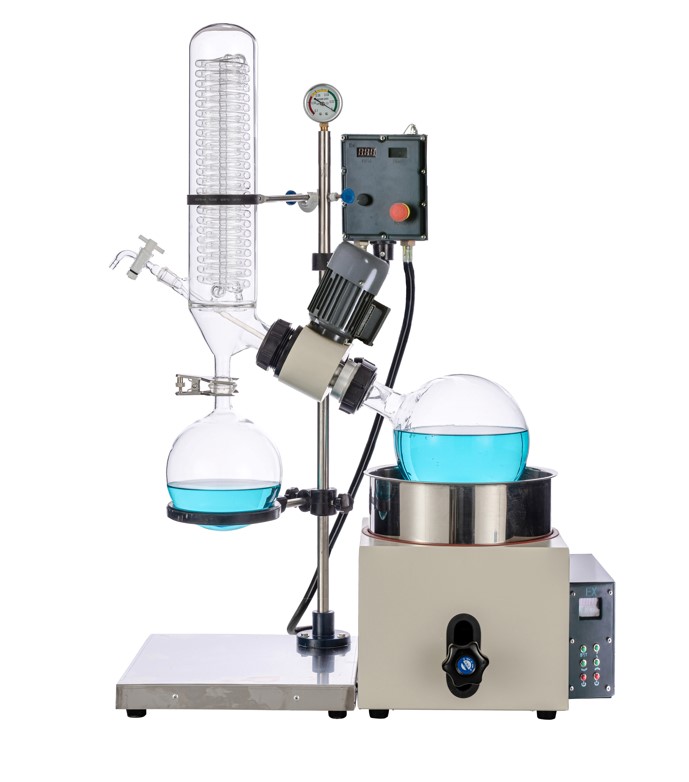

Lab 5L Explosion-proof Rotary Evaporator
Introduction
This explosion-proof rotary evaporator is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in the research and production of medicine, chemical and biological products.
It is developed under the condition of vacuum and negative pressure, using the principle of constant temperature heating and thin film evaporation. Shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.
Main Features
- Main body bracket: stainless steel + aluminum alloy.
- Bathis made of high-quality stainless steel, which is corrosion-resistant and durable.
- Sealing system adopts PTFE and imported fluororubber oil seal combination sealing, which can maintain high vacuum.
- Glass is all made of high borosilicate3.3(GG-17), which is resistant to high temperature and corrosion.
- Handwheel control the host machine goes up and down..
- Digital display of bath, intelligent constant temperature control.
- Electronic stepless speed regulation (0-120rpm), speed digital display, knob setting, easy to operate.
- The vacuum pressure gauge displays the real-time vacuum degree.
- Upright double-layer serpentine coil condenser to ensure high recovery rate.
- Continuous feeding is convenient for customers.
Technical Parameters
| Glass | High Borosilicate Glass GG-17(3.3) |
| Frame | Stainless Steel + Aluminium Alloy |
| Bath | Spray anti-corrosion shell: 385*375*245mm
Stainless steel inner: 280*170mm |
| Bottom Plate Size | 350*330mm |
| Rotary Bottle | 5L Φ50 |
| Collecting Bottle | 3L #35 |
| Achievable vacuum | 0.098Mpa |
| Evaporating capability | 60ml/min |
| Rotary Motor | EX40W |
| Rotary Speed | 0-120rpm |
| Heating Power | 2KW |
| Temperature Range | 0-180℃ |
| Temperature Accuracy | ±1℃ |
| Elevating Stroke(mm) | 220mm |
| Voltage | 220V 50/60Hz(others can be customizd) |
| Dimensions | 735*375*1100mm |
| Packing (mm*mm*mm) | 995*590*490 0.29m3 |
| Gross Weight（KG） | 44 |
| Speed-regulation | Electronic Stepless Speed-regulation |
| Rotary Speed Display | Digital |
| Temperature Display | Digital |
| Temperature Control | Intelligent temperature control |
| Sealing | Double Sealing with Teflon(PTFE) |
| Elevating Function | Manual Elevating |
| Condenser Model | Vertical Type 100*590mm |
| Continue Charging | 19# Charging Valve |
Turnkey Solution
Vacuum Pump
Temperature Control Unit
Which kinds of industry can use this Explosion Proof Rotary Evaporator?
- Pharmaceuticals: Solvent recovery and drug development.
- Chemicals: Safe distillation and synthesis.
- Petrochemicals: Refining and purifying volatile compounds.
- Food & Beverage: Flavor extraction and solvent recovery.
- Cannabis: Safe cannabinoid extraction.
- Biotechnology: Extracting and concentrating bioactive compounds.
- Fragrance & Essential Oils: Distilling aromatic compounds.
- Environmental Testing: Handling hazardous chemicals in labs.
Applications of Explosion Proof Rotary Evaporator
- Distillation
- Purification (purify samples)
- Concentration
- Crystallization
- Extraction
- Drying
- Separation(liquid separation)
- Solvent recovery
- Indistillation of volatile solvents
- Chemical synthesis
- Prepare samples for analysis.
