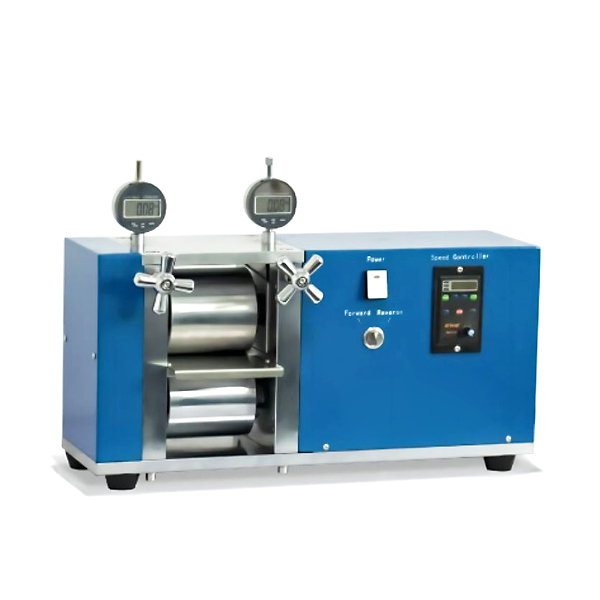

Electric Rolling Press

Electric Rolling Press

Introduction:

This electric rolling press is primarily designed for the electric rolling of battery materials in laboratory settings, as well as small quantities of precious metals such as gold and silver, and non-ferrous materials like copper and aluminum. It features adjustable rolling thickness and straightforward operation.

Features and Benefits:

1.High hardness of the rolling pins with a surface coated in hard chrome, reaching a hardness of up to HRC62 and providing rust resistance.
2.Utilizes inclined blocks to adjust the gap between the pressure plates, ensuring good self-locking, high adjustment accuracy, and precise digital display.
3.High precision in rolling with a cylindrical accuracy of ±2um for the rollers.
4.Vertical design for easy feeding and rolling of strip materials.
5.Digital display for pressure thickness, adjustable speed with accurate control, and an elegant and aesthetic appearance.
6.Electric rolling for automation, allowing for both forward and reverse operations.
7.Compact size, simple operation, and flexible and quick usage.

Main Parameters of Electric Rolling Press:

• Rolling Thickness: Adjustable in the range of 0 to 3mm
• Pressure Plate Width: Adjustable in the range of 0 to 100mm
• Roller Diameter: 96mm
• Roller Surface Hardness: Above HRC62
• Roller Smoothness: 0.4 or above
• Roller Placement: Vertical
• Voltage and Frequency: AC220V/50HZ
• Power: 120W
• Feed Speed: Adjustable in the range of 0-50mm/s
• Dimensions: L385 x W245 x H355
• Equipment Weight: 55KG

Note: Four roller widths are available: 100mm, 150mm, 200mm, and 250mm.

Additionally, a horizontal model is also offered.

Applications:

This electric rolling press is primarily designed for the electric rolling of battery materials in laboratory settings, as well as small quantities of precious metals such as gold and silver, and non-ferrous materials like copper and aluminum.
