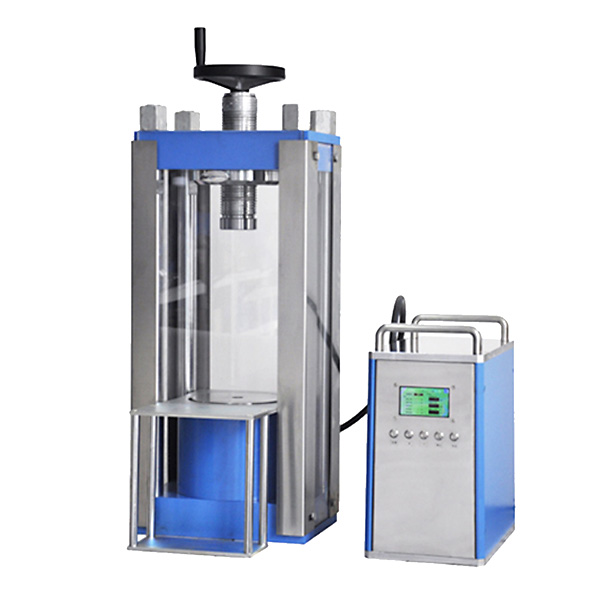

Split Type 100-Ton Hydraulic Electric Powder Pellet Press with Safety Shield
Applications:
This electric powder pellet press is mainly used for samples that require high pressure for shaping, such as ceramics, metal powders, and various large-sized molds.
Introduction:
The hydraulic press adopts a split-type structure and operates fully automatically through programmed procedures: programmed pressurization/gradual pressurization, pressure holding, pressure supplementation, timed pressure release, etc. It features a liquid crystal display screen for intuitive and simple operation. Equipped with plexiglass protective cover as standard, ensuring safe and reliable operation. It offers stable pressure and convenient operation.

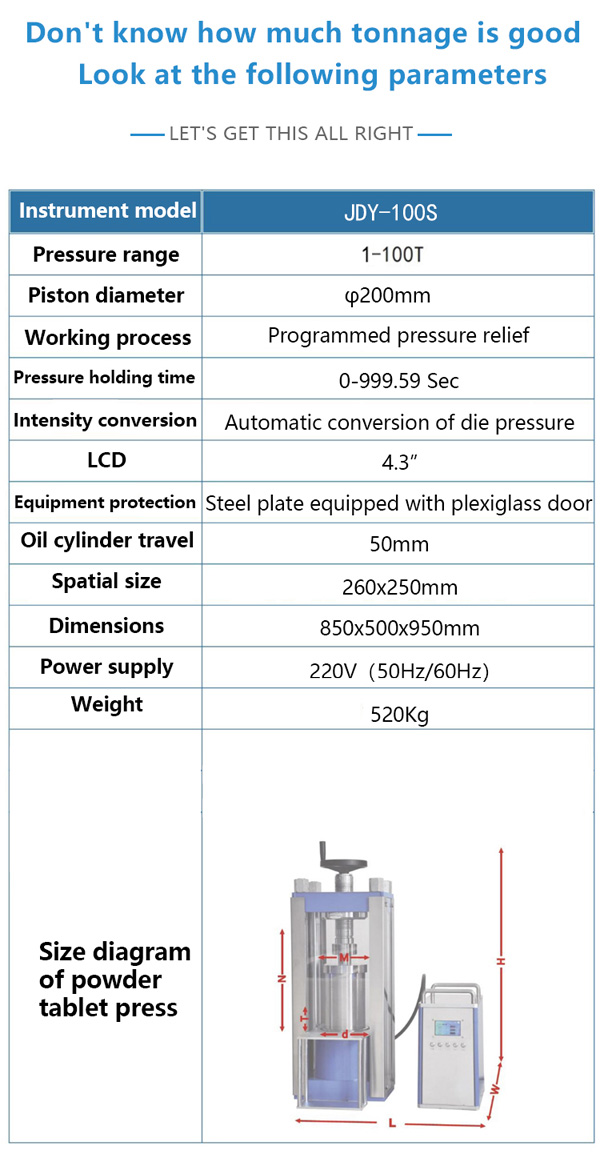

Technical specifications:
Pressure range | 1-100T |
Piston diameter | Chrome-plated oil cylinder Φ200mm(d) |
Pressurization process | Programmed pressurization – Programmed pressure holding – Timed pressure release |
Pressure holding time | 0-999 seconds/minute |
Pressure conversion | Automatically converts the pressure borne by the sample |
LCD display | 4.3-inch LCD screen |
Equipment protection | Steel plate protection with plexiglass door |
Oil cylinder stroke | 50mm(T) |
Space dimension | 260×250mm (M×N) with optional higher pillars |
Overall dimension | 850×500×950mm (L×W×H) |
Power supply | 220V(50Hz/60Hz) |
Weight | 520kg |

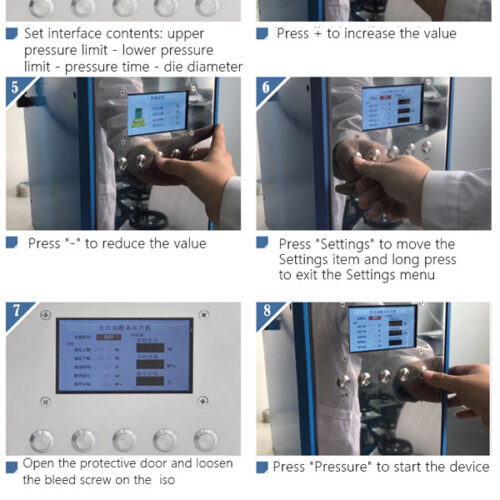

Operating steps:
- Place the assembled mold into the press and tighten the screw;
- Press the “Settings” button to enter the settings interface;
- Settings interface content: upper limit pressure – lower limit pressure – pressurization time – mold diameter;
- Press the “+” key to increase the value;
- Press the “-” key to decrease the value;
- Press the “Settings” key to move the setting item, long press to exit the setting menu;
- Return to the operating menu;
- Press the “Pressurize” button to start the equipment;
- When the pressure reaches half of the set parameter, the system will reduce the pressurization speed;
- When the pressure reaches the set value, the system stops pressurizing and starts timing, followed by automatic pressure release;
- In case of emergency, press the “Stop” button to stop the equipment from pressurizing and release the pressure;
- The press resets automatically.
Others:
Optional- Matching Dry Pellet Pressing Die Set
