Vertical Eight-Channel Tube Furnace

Vertical Eight-Channel Tube Furnace

Introduction:

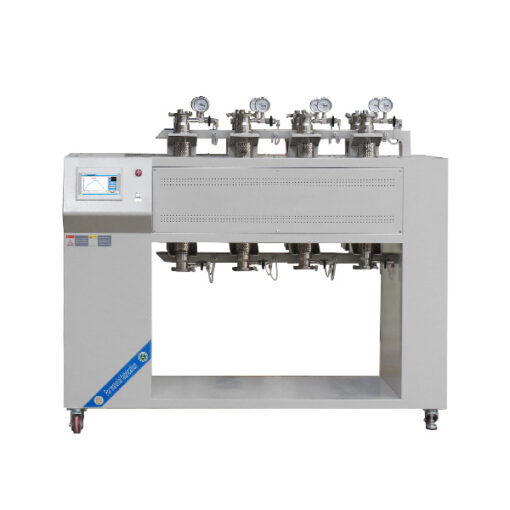

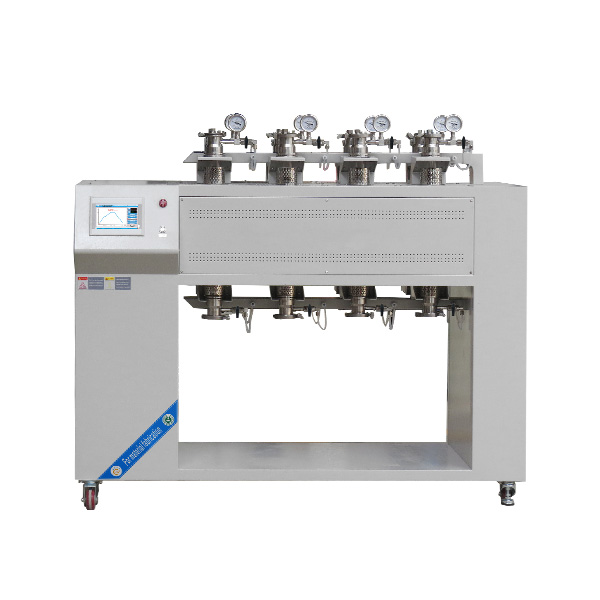

The vertical eight-channel tube furnace is a high-temperature processing device designed for simultaneous handling of multiple samples or continuous materials. It is widely used in fields such as material science, chemical engineering, metallurgy, nanomaterial preparation, ceramic sintering, and catalytic research.

Featuring eight parallel heating tube chambers, the furnace allows for independent or simultaneous heating experiments, enhancing experimental efficiency and throughput. It also facilitates comparative experiments to improve data reliability and repeatability.

Features and Benefits of Eight-Channel Tube Furnace:

1. High-temperature sintering.
2. Stable and reliable construction, easy operation, and comprehensive safety measures.
3. Advanced PID self-learning fuzzy control, with high temperature control accuracy, maintaining within ±1°C.
4. Furnace lining made of high-purity alumina lightweight fiber material, providing better insulation and energy savings.
5. Internet of Things (IoT) functionality (WIFI), enabling remote monitoring and operation via mobile phone or computer.
6. Data storage capability, able to save important sintering parameters for up to 30 days (8 hours of operation per day).
7. Recipe function, allowing the storage of over 20 pre-set recipes.
8. Networking capability, with an RJ45 interface and TCP/IP protocol, allowing the system to connect to a host computer (host computer requires appropriate software installation).

Equipment Name	Vertical Eight-Channel Tube Furnace
Model	T1200-LTS-MC8
Tmax	1150℃
Heating Rate	1℃/H-20℃/Min
Power Supply	Three-phase 380V 50HZ
Rated Power	12KW
Number of Temperature Zones	Eight zones with individual control
Temperature Control Accuracy	±1℃
Sensor Type	K-type thermocouple
Temperature Zone Dimensions	Inner diameter × Height: Φ80 × 200mm

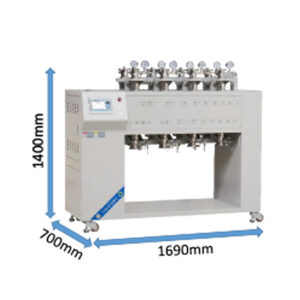

Furnace Body Dimensions	1690*1400*700（L*H*Dmm）
Control System				1.     Sintering process curve setup: Dynamically displays set curves. The furnace can store multiple process curves, each of which can be freely set. 2.     Sintering scheduling: Enables unattended sintering process curves. 3.     Real-time display of sintering power, voltage, etc., with data recording and export for paperless records. 4.     Remote control capability with real-time monitoring of equipment status. 5.     Temperature correction: Nonlinear correction of the difference between main control temperature and sample temperature throughout the sintering process.
Equipment Details
Temperature Accuracy	±1℃
Heating Elements				Mo-doped Fe-Cr-Al alloy
Sealing System
	Vacuum degree: 10Pa (mechanical pump)
Pressure Measurement and Monitoring		Uses a mechanical pressure gauge with a hermetic shell to effectively protect internal components from environmental impact and foreign matter intrusion, while also offering strong corrosion and high-temperature resistance.
Gas Supply System		Controlled by a float flowmeter, integrated with the equipment, and leak-tested before shipment.
Net Weight	Approximately 260KG
Service Support	One-year limited warranty with lifetime support (the warranty does not cover consumable parts such as processing tubes and O-rings; please order replacement parts from the related products section below).

Applications:

The vertical eight-channel tube furnace is a high-temperature processing device designed for simultaneous handling of multiple samples or continuous materials. It is widely used in fields such as material science, chemical engineering, metallurgy, nanomaterial preparation, ceramic sintering, and catalytic research.
