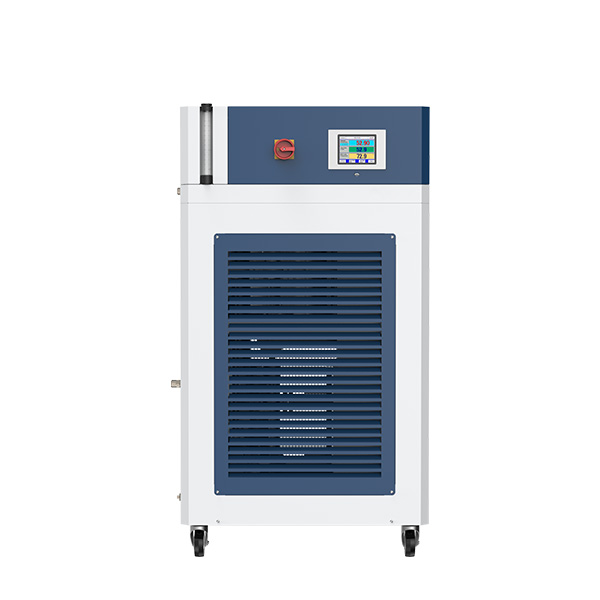

Dynamic Temperature Control System(-30℃-200℃)
Introduction:
Dynamic temperature control system is a hermetic refrigerated heating circulator which is designed for fast heat-up and cool-down times in external applications.
Main Features:
1. Wide working temperature ranges using one bath fluid: -30℃~200℃.
2. Refrigeration system, heating system and pre-cooling system can work independently or work together continuously.
3. It is available with air cooling and water cooling.
4. Multi safety protections: Over temperature cut-off, electrical leakage prodtection, over-current protection etc.

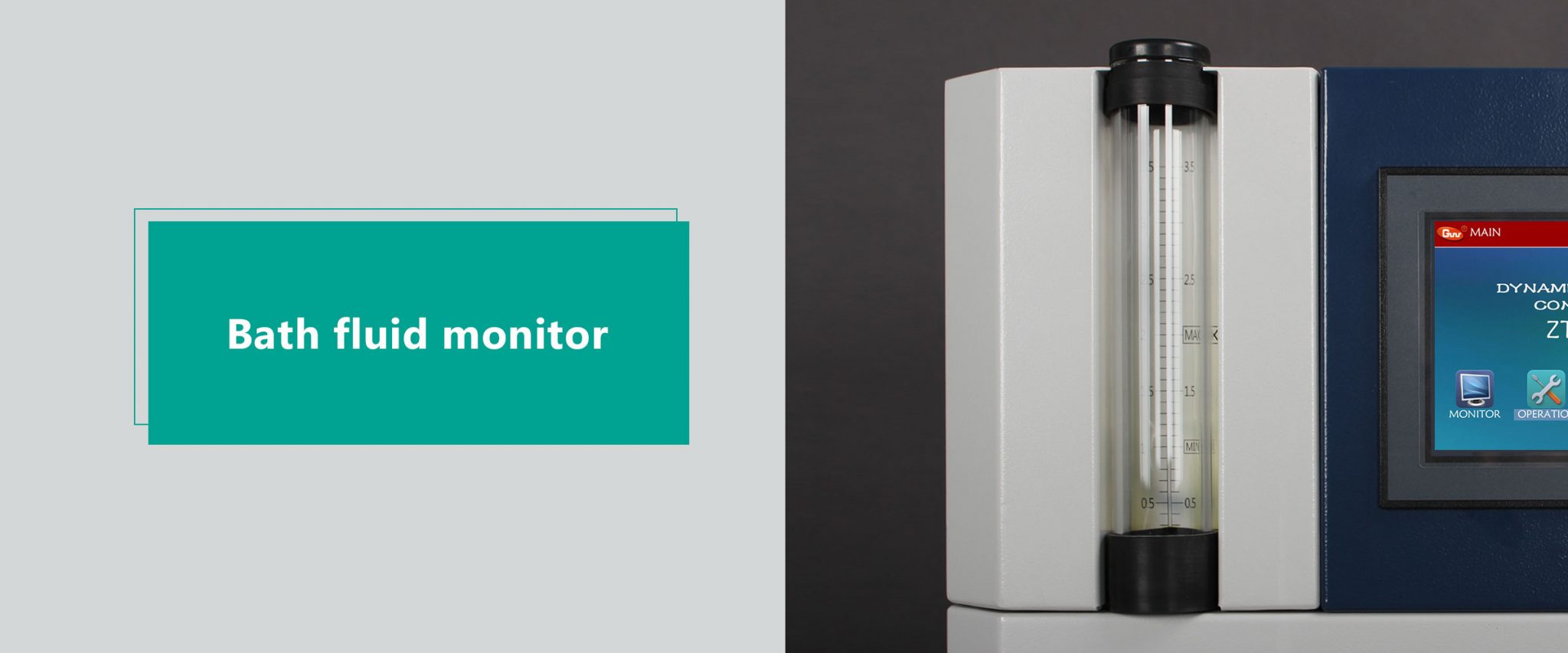

5. Designed with bath fluid monitoring window, avoid shortage of liquid.

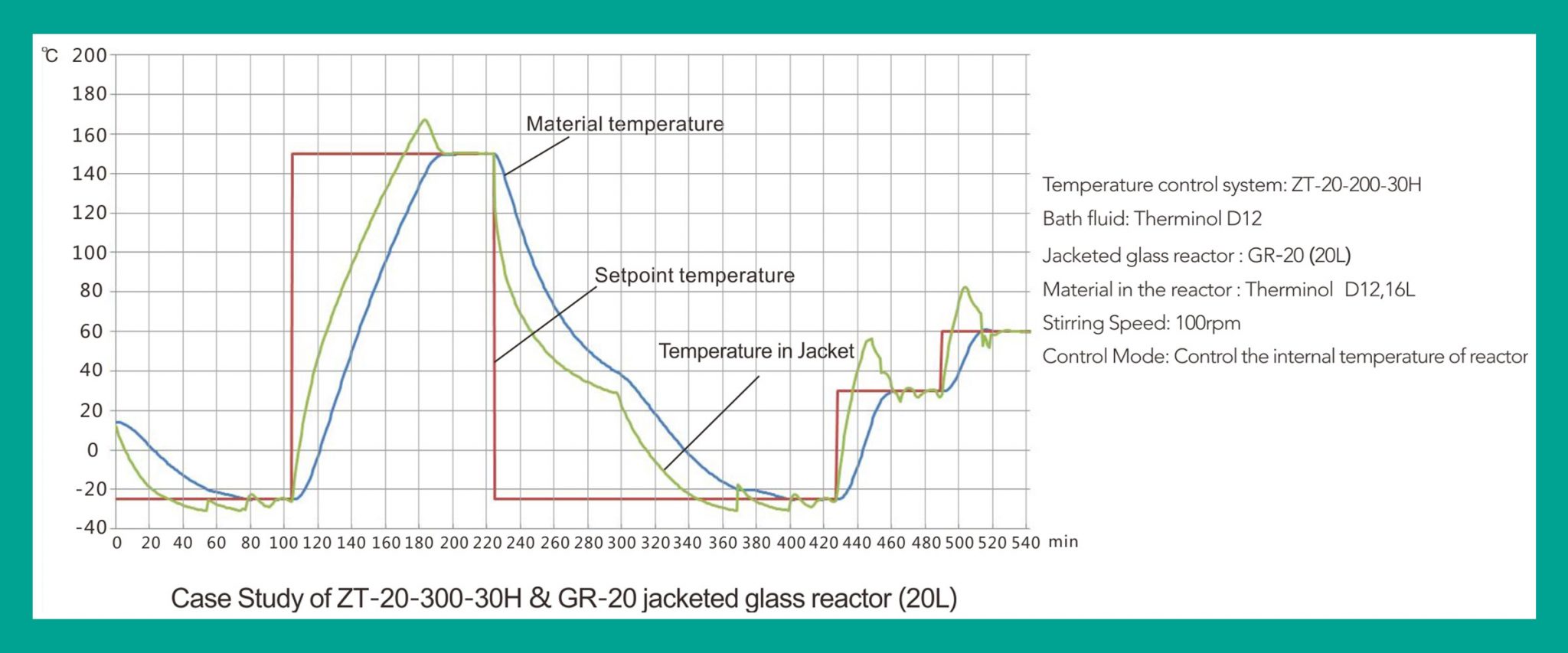

6. Rapid heat-up or cool-down.
Main Specifications:
Model | ZT-5-200-30H | ZT-20-200-30H | ZT-50-200-30H | ZT-100-200-30H |
Working Temperature Range | -30-200℃ | -30-200℃ | -30-200℃ | -30-200℃ |
Temperature Stability | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ |
Power Supply | 220-240V~ 50Hz | 220-240V~ 50Hz | 3~,380V,50Hz | 3~,380V,50Hz |
Overall Power | 3KW | 4.7KW | 9.2KW | 18KW |
Cooling Capacity at 200℃ | 0.6KW | 1.7KW | 3.0KW | 3.0KW |
Cooling Capacity at 10℃ | 0.6KW | 2.6KW | 7.5KW | 8.2KW |
Cooling Capacity at -10℃ | 0.4KW | 1.1KW | 4.6KW | 6.2KW |
Cooling Capacity at -20℃ | 0.3KW | 0.7KW | 2.5KW | 4.5KW |
Cooling Capacity at -30℃ | 0.17KW | 0.3KW | 1.0KW | 2.5KW |
Regrigerant | R404A | R410A | R404A | R404A |
Bath Fluid Filling Volume | 3.5L | 10L | 13L | 20L |
Heating Power | 2KW | 3KW | 6KW | 12KW |
Flow Rate | 25L/min | 30L/min | 30L/min | 40L/min |
Pressure | 1.5Bar | 1Bar | 1Bar | 1.4Bar |
Dimensions(mm) | 420W*640D*850H | 550W*820D*1370H | 813W*1092D*1445H | 875W*1375D*1687H |
Net weight | 106kg | 177kg | 251kg | 385kg |
Which kinds of industry can use this Dynamic Temperature Control System?
Biology, pharmacy, food, other organic research,etc laboratories
Education
Applications of Dynamic Temperature Control System:

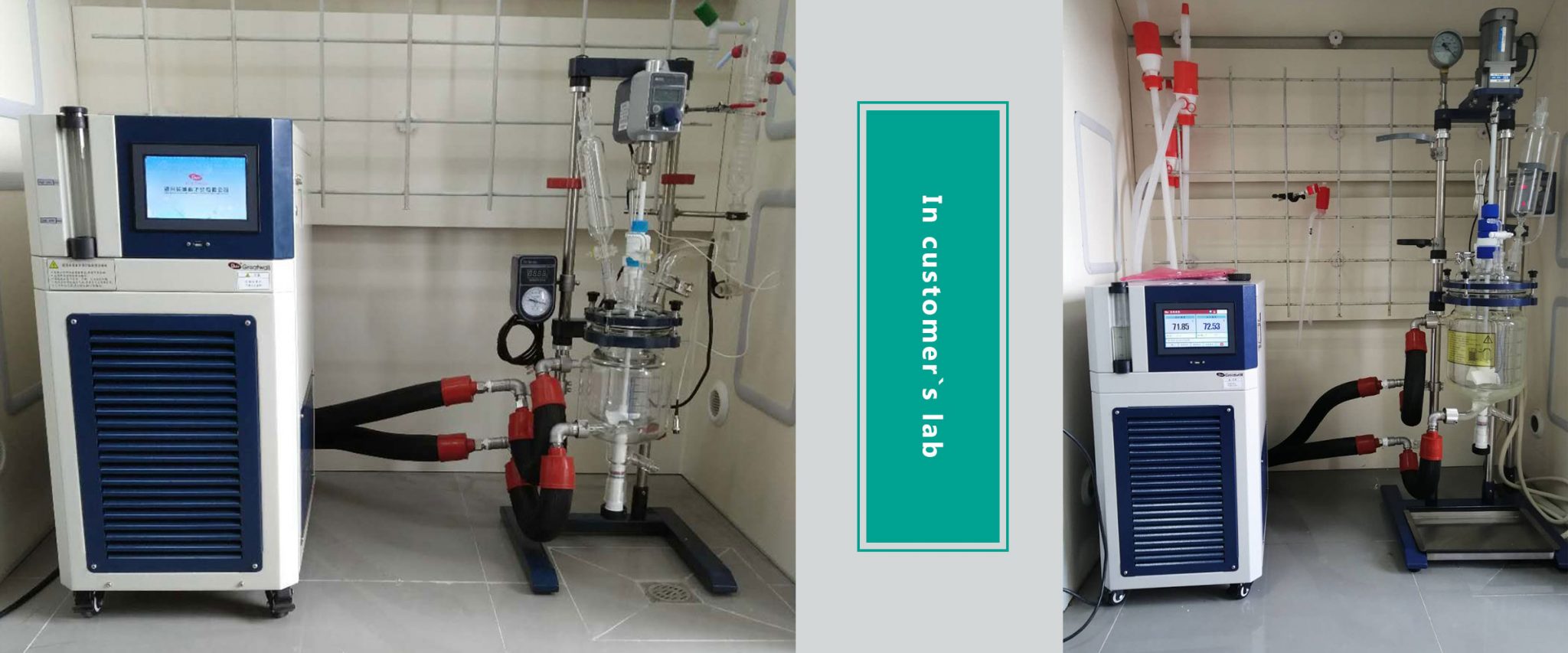

Mainly used in laboratories for biology, pharmacy, food, and other organic research, dynamic temperature control systems provide high or low temperature liquid necessary to achieve reaction results for tests.
