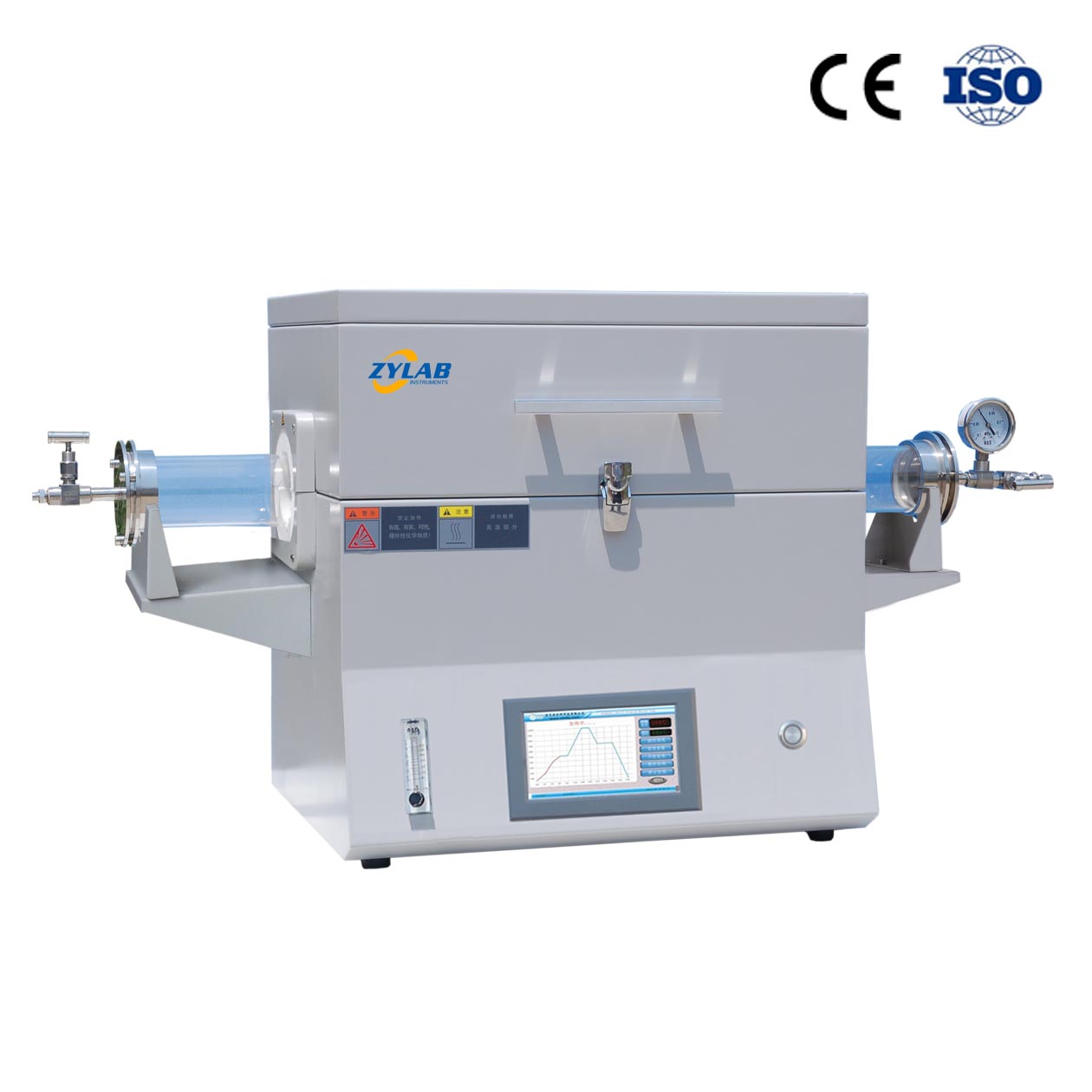

1200.C Double Zones Tube Furnace
Introduction:
- Max temperature: 1200.C
- Max heating rate: 20.C/Min
- Chamber size(working space)：60mm x 200mm x 200mm(also supply other sizes)
- Controller：Smart PID
Main Features of Double Zones Tube Furnace:

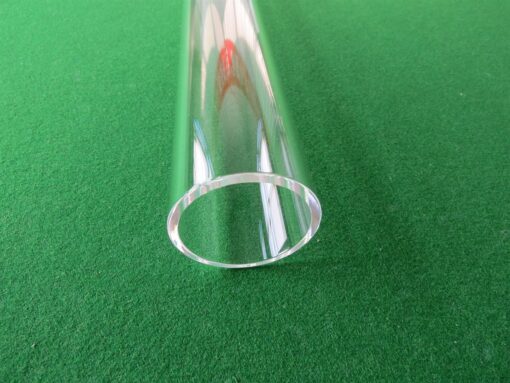

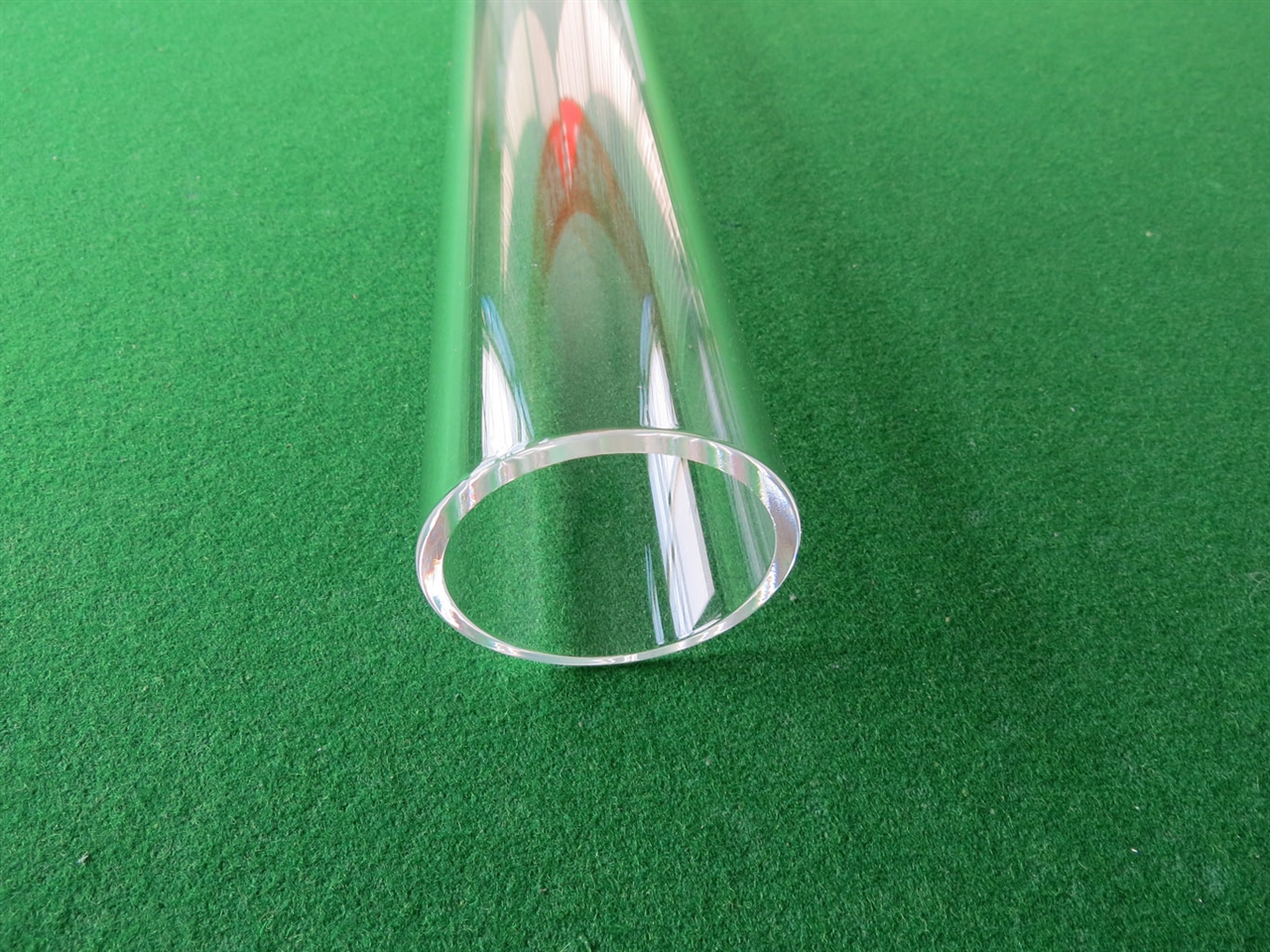

1. High purity quartz tube as furnace tube, max. temperature 1200.C, continue working temperature Rt –1100.C.

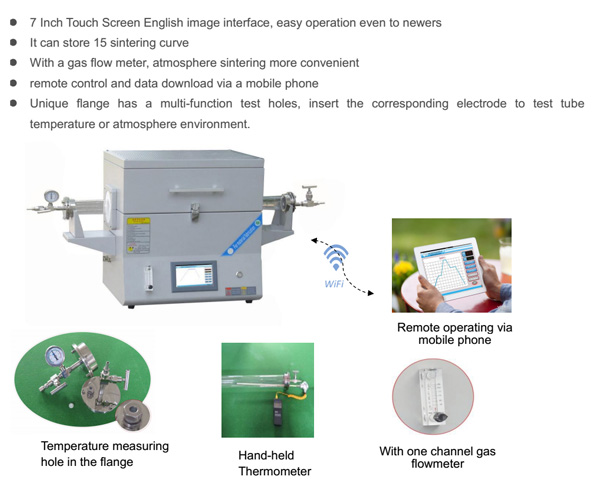

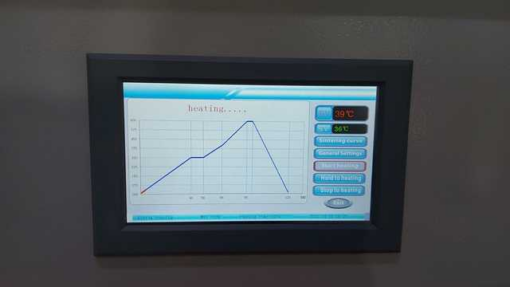

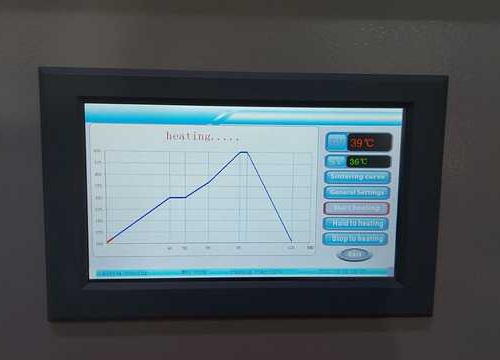

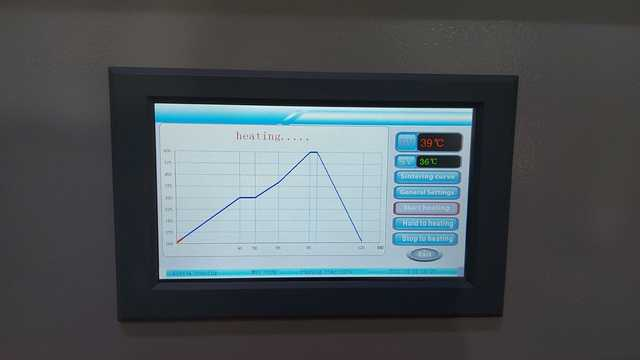

2. 7”Color Touch screen LCD man-machine English interface, more intuitive and convenient operation, the graph of sintering curve with temperature changes makes you clear at a glance.
3. 30 segments programmable and auto control.
4. Can presetting 15 sintering curves to avoid the trouble caused by repeated settings of different experimental processes.
5. High purity alumina inorganic refractory, overall vacuum molding chamber, energy saving and ensure uniformity of temperature zone and a fast heating rate.
6. By using special lining import from Japan and high quality alloy heating wire with excellent acid and corrosion resistance, protected against chemical contamination at the best and longer service life.
7. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C, safety for the operator.

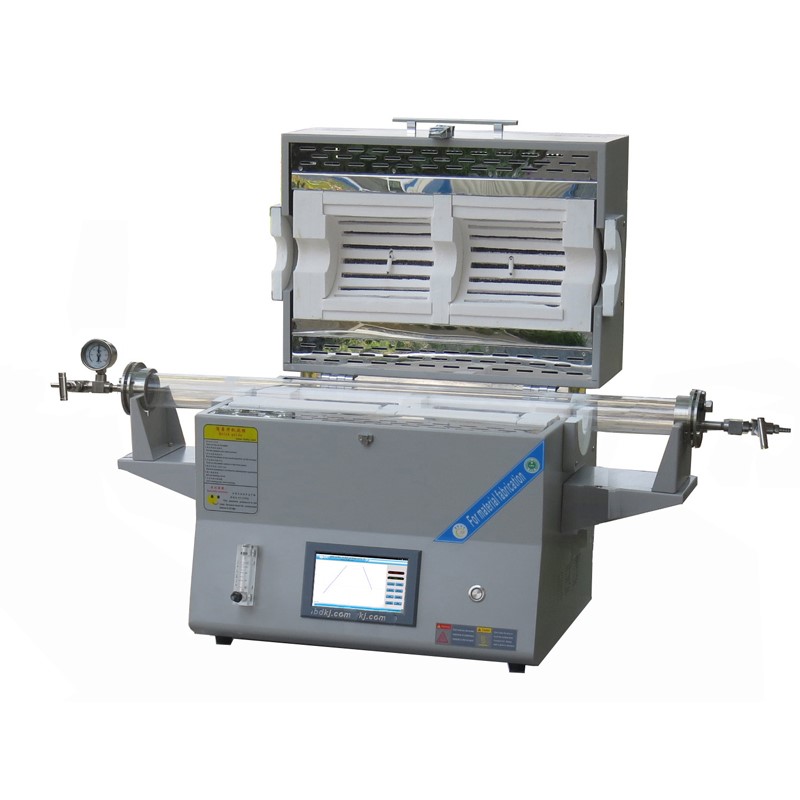

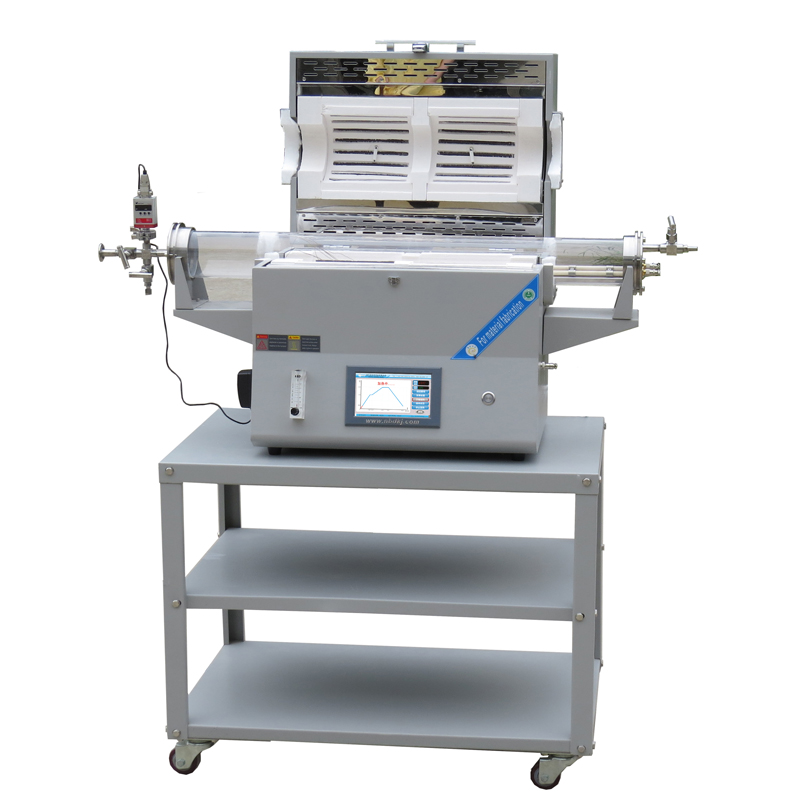

8. Ring heating, open structure, convenient observation for operator, able to meet rapid sintering of small sample
9. Come with gas flowmeter, atmosphere sintering more convenient.

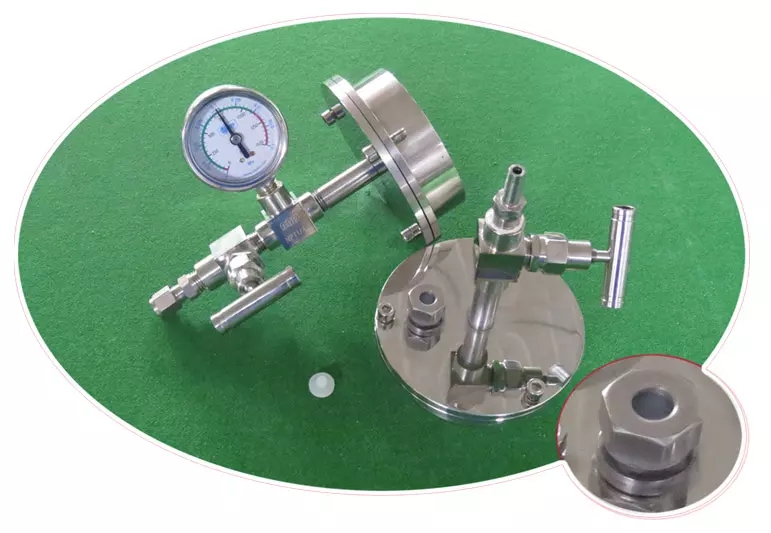

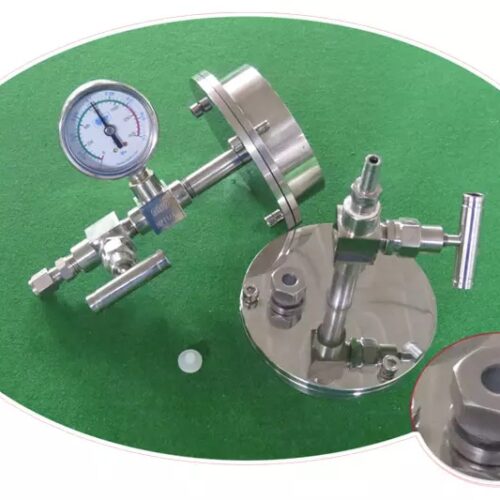

10. Unique flange has a multi-function test holes, insert the corresponding electrode to test tube temperature or atmosphere environment.
11. Have two temperature zones, each can be independently controlled.
12. Low power consumable, exquisite structure and light weight, it is the ideal tube furnace for material research labs, also used in factory for small production.
Main Specifications:
| Model | O1200-IIT |
| Chamber Model | Open |
| Chamber Material | Imported high quality alumina fiber refraction insulation |
| Heating Element | Imported high quality alloy heating wire |
| Max.temperature | 1200.C(<1hour) |
| Working Temperature | ≤1100.C |
| Heating Rate | ≤20.C/min(advice:10.C/min) |
| Heating Zone | Dual(2 zones) each can be independently controlled. |
| Length of Heating Zone | 200+200mm(optional 300+300mm) |

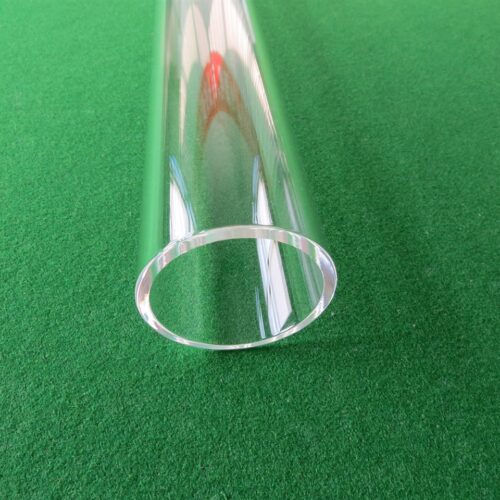

| Tube Material | High purity quartz, length 1000mm |
| Tube Size | Φ60×1000(mm）
Other optional sizes: Φ50×1000(mm） Φ80×1000(mm） Φ100×1000(mm） Φ60×1200(mm） Φ80×1200(mm） Φ100×1200(mm） |
| Sealing Mode | Vacuum Flange |
| Gas Tightness | 4.03×10-3Pa |
| Control Mode | Smart PID Control |
| Operating Interface | English Graphical Interface |
| Temperature Accuracy | +/- 1.C |
| Presetting Curve | 15 Presetting Curve,30 Segments Programmable |
| Protection Setting | Over Temperature Alarm, Over Current Protection, Broken Thermocouple Protection |
| Thermocouple | K Type |
| Working Voltage | AC208-240V 50/60HZ |
| Standard Accessories | Quartz Tube, Vacuum Flange, Tube Block, O-ring, Protective Gloves, Crucible Hook, Manual Book |
| Certificate | CE, ISO |
| Warranty | 18 months(not including consumable parts, such as quartz tube, heating elements, thermocouple), lifetime support. |
Which kinds of industry can use this Double Zones Tube Furnace?
College & Universities, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic, etc.
Applications:
Satisfy the vacuum sintering of the vast majority of materials, the sintering of the protective atmosphere and all kinds of CVD experiments.
Used in university laboratories, research institutes, and industrial & mining enterprise laboratories for sintering of metal ceramic materials, heat treatment of small steel parts, and quality testing.
In analytical chemistry industry, mainly used for sample treatment in water qualiy analysis, environmental analysis and other fields. It can also be used for oil and its analysis.
For heat working or treatment of small workpieces in cement and building materials industries.
Used in the pharmaceutical industry for drug inspection, pre-treatment of medical samples,etc.
In the coal mining industry for measuring moisture, ash, volatile matter, ash melting point analysis, ash composition analysis, and elemental analysis,etc.
